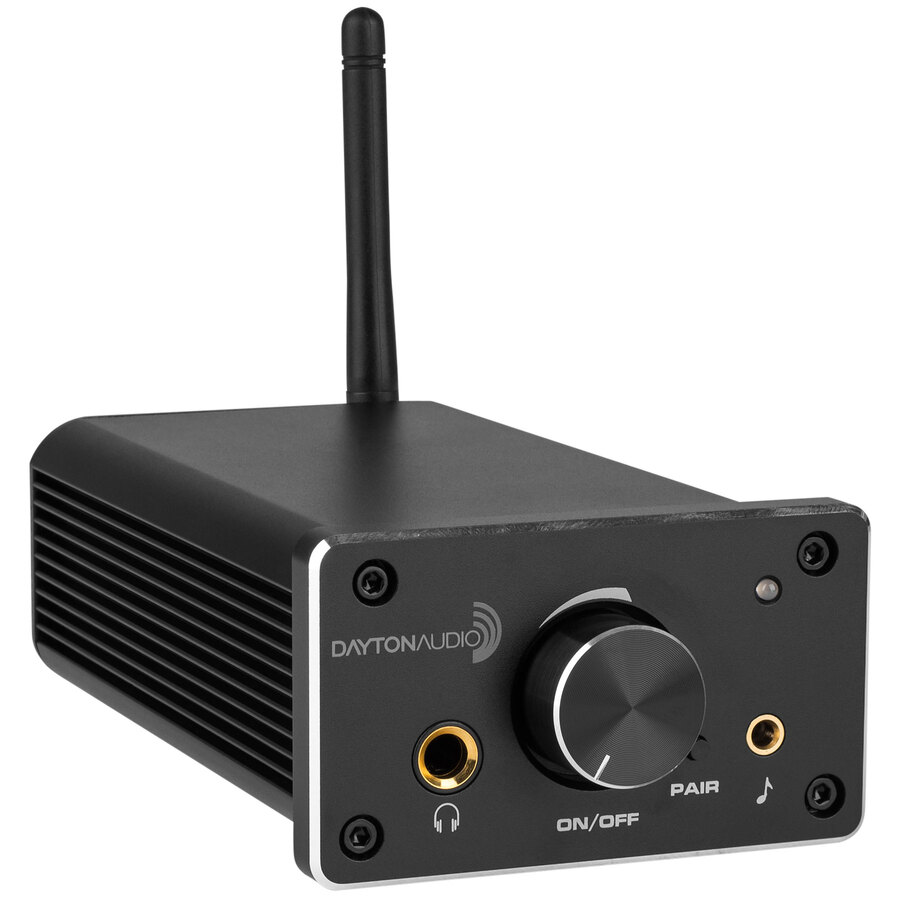

DTA-120BTV2 Dayton Audio Class D Mini Amplifier 60 WPC with Bluetooth
Wireless Bluetooth 4.2 connectivity
Notify me when back in stock
Stream music wirelessly wherever you go with this mini amplifier with Bluetooth technology.
Compact Design

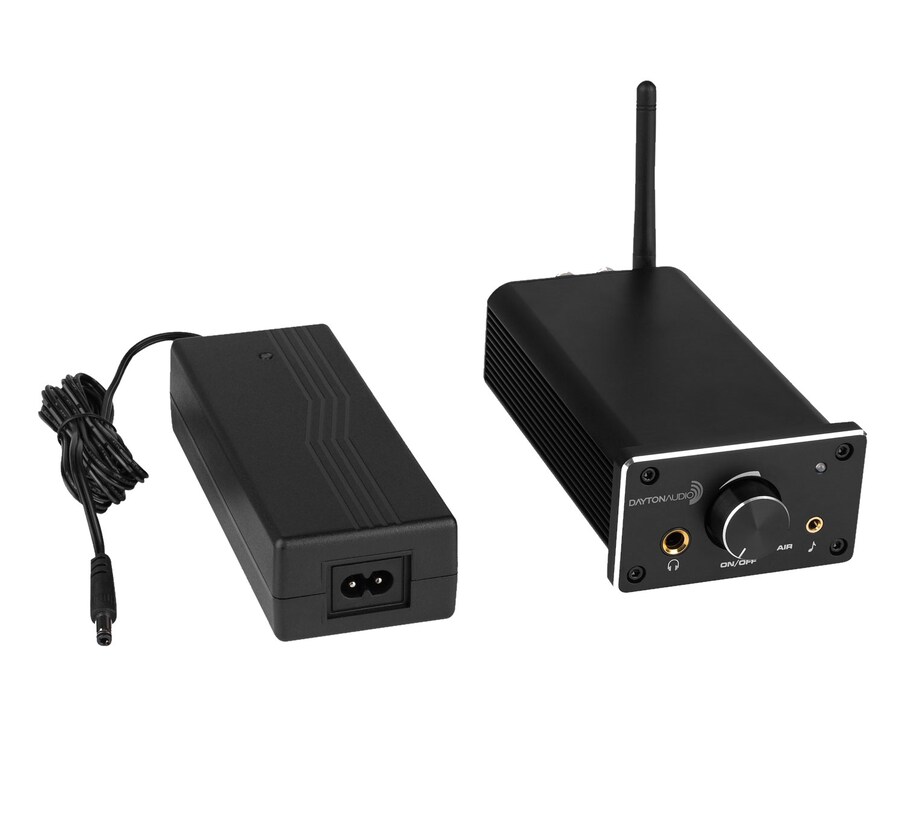

The ultra-compact profile of this unit features an extruded aluminum heatsink case and thick black anodized faceplate for a sleek look. The concealed external switching power supply enhances safety and is designed to run even demanding speakers.
Powerful Output
The Class D technology and the Dual Parallel BTL configuration drives even powerful speakers to deliver high quality audio with minimal distortion. The dual-power-chip design produces 60 watts RMS per channel of efficient power, without any reduction in output, thereby delivering powerful bass and crystal-clear audio.
Connectivity Options
aptX Bluetooth connectivity makes wireless connectivity possible making this mini amplifier the perfect partner for your laptop, tablet, PC, TV, smartphone or any other audio device. The one-knob design without any switches, makes handling a breeze. A 3.5mm stereo jack doubles as a high fidelity headphone amplifier to connect high-impedance headphones.
More Benefits
This mini amplifier can also be used to power up desktop mini-monitor speakers and even high-impedance headphones giving you quality and refined sound performance with exceptional clarity.
Specifications:
• Output power: 60 watts RMS x 2 @ 4 ohms • Total harmonic distortion (THD): <0.1% @ 1W, <10% @ 60W • Frequency response: 20-20,000 Hz • Signal-to-noise ratio: 103 dB, A weighted • Input sensitivity: 680 mV • Inputs: Rear stereo RCA, front 3.5 mm stereo mini jack, and Bluetooth • Headphone output: 95 mW at 16 ohm • Outputs: Dual shielded, gold-plated mini binding posts (banana plugs accepted) • Bluetooth version: 4.2 • Power supply: Input: 100~240 VAC, 50/60 Hz, 1.6A; Output: 24 VDC, 5A • Power efficiency: >85% • Dimensions: Faceplate dimensions: 1.9" H x 3.37" W x 0.31" D • Body dimensions: 1.75" H x 3.12" W x 6.87" D • Overall dimensions: 2" H x 3.37" W x 7.5" D (including feet, faceplate, and volume knob).
(848791004797)
- Produces crystal clear sound quality for great listening
- Wireless Bluetooth 4.2 connectivity lets you pair up devices
- Housed in an extruded aluminum casing with thick anodized faceplate
- Space-saving design makes it ideal to be used anywhere
- Includes 3.5 mm stereo mini jack and a pair of RCA auxiliary inputs for analog requirements
Output power: 60 watts RMS x 2 @ 4 ohms
Total harmonic distortion (THD): <0.1% @ 1W, <10% @ 60W
Frequency response: 20-20,000 Hz
Signal-to-noise ratio: 103 dB, A weighted
Input sensitivity: 680 mV

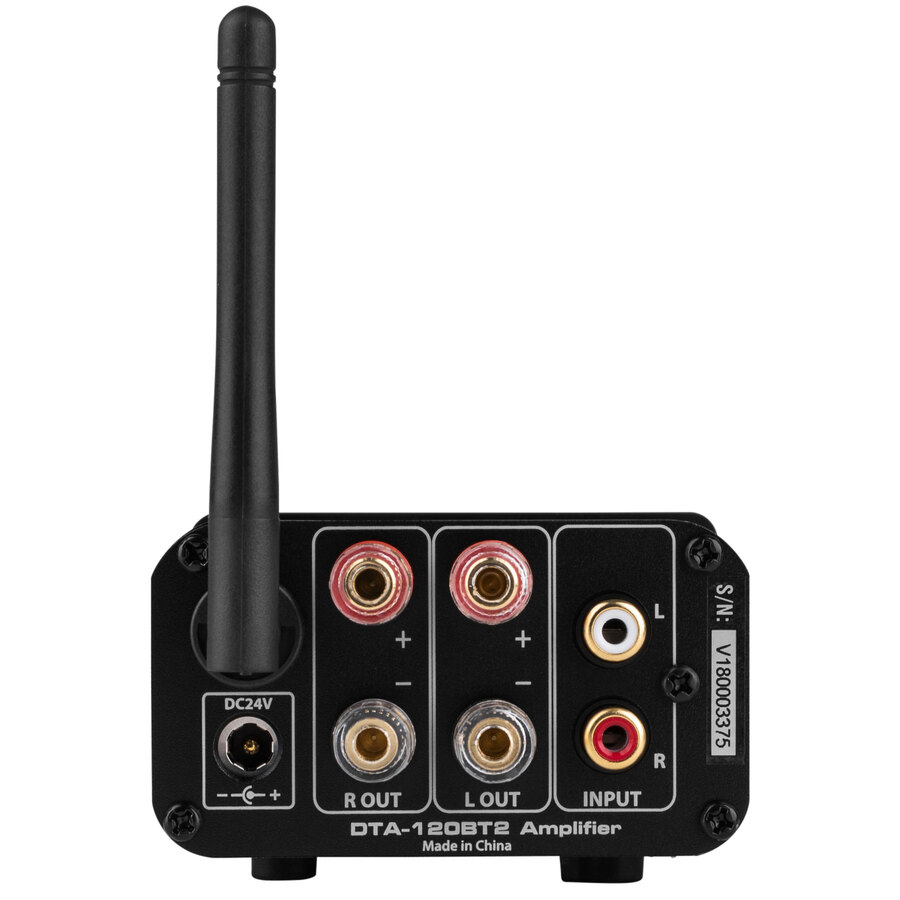

Inputs: Rear stereo RCA, front 3.5 mm stereo mini jack, and Bluetooth
Headphone output: 95 mW at 16 ohm
Outputs: Dual shielded, gold-plated mini binding posts (banana plugs accepted)
Bluetooth version: 4.2
Power supply: Input: 100~240 VAC, 50/60 Hz, 1.6A; Output: 24 VDC, 5A
Power efficiency: >85%
Dimensions: Faceplate dimensions: 48.3mm H x 85.6mm W x 7.87mm D
Body dimensions: 44.5mm H x 79.2mm W x 174.5mm D
Overall dimensions: 50.8mm H x 85.6mm W x 190.5mm D (including feet, faceplate, and volume knob).
| SKU | 848791004797 |
| Model # | DTA-120BTV2 |
| Barcode # | 848791004797B |
| Brand | Dayton Audio |
| Shipping Weight | 1.3600kg |
| Unit Of Measure | ea |
