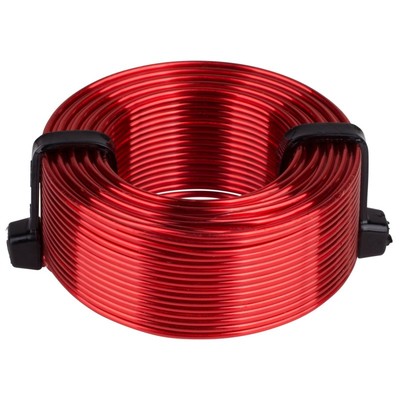

LW18-70 0.70mH 18 AWG Perfect Layer Inductor

Highly refined copper wire

$18.50
In Stock


Calculate Shipping

Dayton Audio 18 gauge perfect layer wound air core inductors are an excellent choice for high quality crossover construction. Features fully annealed refined copper wire, baked enamel insulator and perfect layer construction. The thin enameled wire permit


Dayton Audio 18 gauge perfect layer wound air core inductors are an excellent choice for high quality crossover construction. Features fully annealed refined copper wire, baked enamel insulator, and perfect layer construction. The thin enameled wire permits the tightest windings to minimize DCR and air core construction to ensure no hysteresis and saturation distortions.

Specifications: • Inductance: 0.70 mH • Wire gauge: 18 AWG • Core type: Air • DC resistance: 0.41 ohms • Tolerance: ±3% • Power handling: 300 watts RMS • Dimensions: 1.76" Ø x 0.67" H (45 x 17 mm).

Copper quality/purity: The copper used in all Dayton Audio inductors, both wire and foil based, is a minimum of 99.9% pure, providing 100% conductivity. The oxygen component of the copper is between 0.02% and 0.04%.

Technical note: To prevent crosstalk and noise position inductors in crossovers at right angles to each other.

(848791003387)

• Highly refined copper wire
• Baked enamel insulator
• Perfect layer windings
• Air core construction
• 300 watts RMS
• ±3% Tolerance

Model Number LW18-70
Unit of Measure Each
UPC 848791003387
Warranty - Parts 5 Years
Warranty - Labor 5 Years
Product Height 17 mm
Product Width 45 mm Dia.
Product Length --
Product Depth --
Product Weight --
Product Shipping Weight (lbs.) 0.2800
SKU 848791003387
Model # LW18-70
Barcode # 848791003387
Brand Dayton Audio
Shipping Weight 0.1240kg
Shipping Width 0.057m
Shipping Height 0.025m
Shipping Length 0.057m
Shipping Cubic 0.000083000m3
