DTA30HP Dayton Audio 30W Mini Amplifier with Headphone Output

Efficient Class D amplification

$99.00
In Stock


Calculate Shipping

The Dayton Audio DTA30HP Class D mini amp rivals the sound quality of larger amps even though its footprint is small. Complete with stereo speaker outputs, the DTA30HP also features a headphone output.


Dayton Audio DTA30HP 30W Class D Mini Amplifier with Headphone Output

The highly efficient audio amplification of the Dayton Audio DTA30HP provides an amazing soundstage and presence combined with enhanced clarity and sound quality; all at an amazingly low price. The DTA30HP features a TPA3116D2 known for its stereo efficiency and incredible sonic performance. The TPA3116D2 is fully protected against faults with built-in thermal and short-circuit protection. The built-in TPA6110A2 stereo headphone audio amplifier is capable of delivering 150 mW of continuous power per channel into 16 ohm headphones. Generate pristine, low-noise audio whether you are using desktop speakers or your favorite pair of headphones.

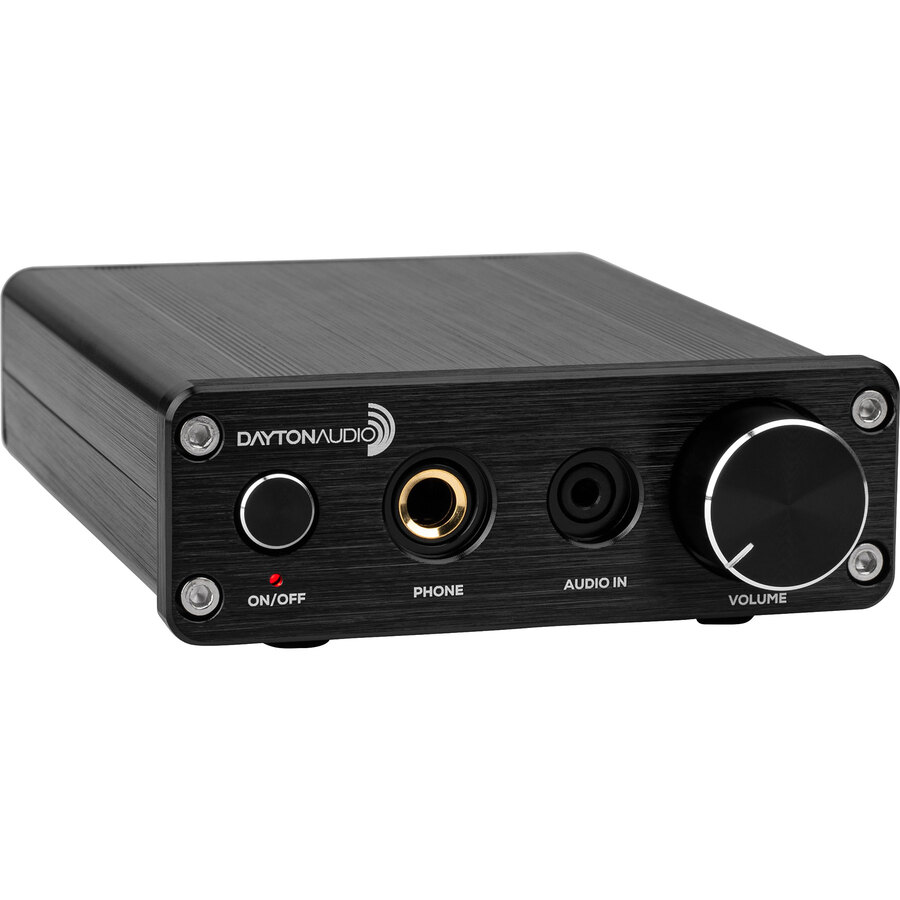

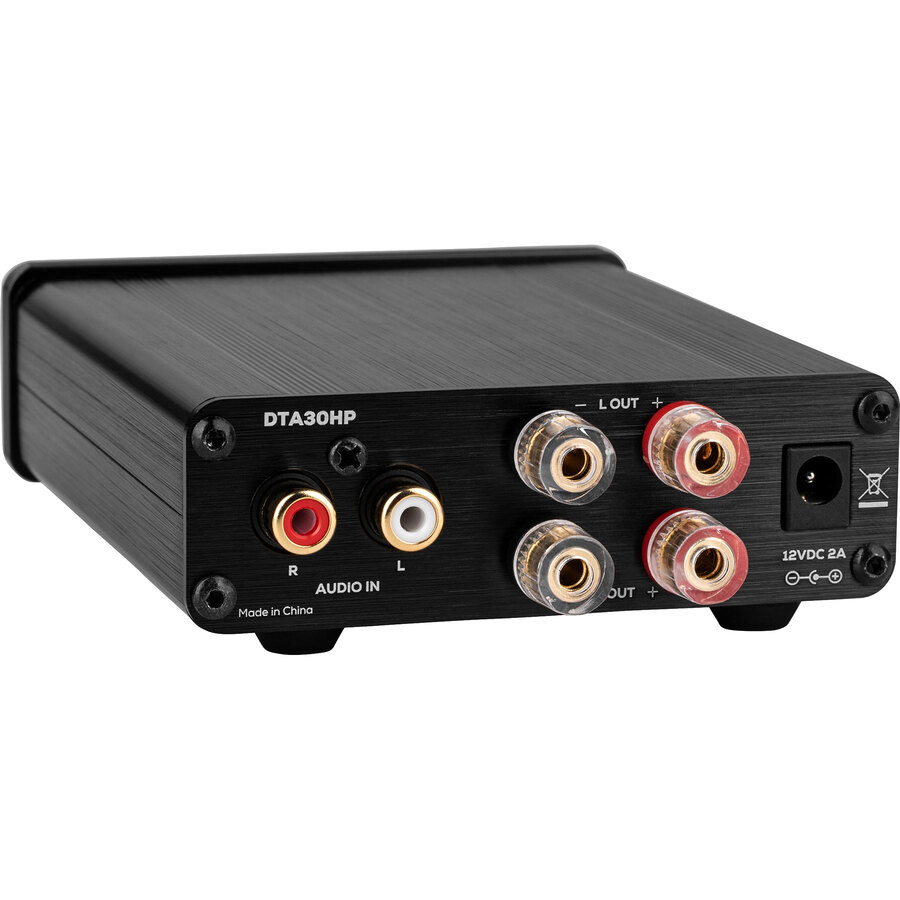

Operation of the DTA30HP is simple and straightforward. On the front of this amp you will find a push button on/off switch and smooth analog volume control. Also on the front panel is a conveniently located 3.5 mm stereo input jack and gold plated 1/4" headphone output jack. Gold plated RCA line level stereo inputs and 5-way speaker binding posts are featured on the back panel, as well as the DC power jack. A robust 12 VDC, 2A power supply comes with this amp to ensure that it is given the right voltage and current to function at peak performance.

(848791006173)

  • Efficient Class D amplification provides crisp, powerful output while retaining a compact form factor perfect for desktops, entertainment centers, and personal listening systems
  • Built-in headphone amp produces an amazing soundstage with detailed, vibrant sound for an audiophile quality listening experience
  • Aesthetically pleasing all metal housing has a sleek, attractive appearance with high quality binding posts and minimalistic front panel

• Output power: 2 x 15 watts RMS @ 4 ohms with 12 VDC power supply
• Headphone output power: 10 mW
• Minimum speaker impedance: 4 ohms
• Headphone impedance: 16 ohms
• Frequency response: 20-20,000 Hz
• THD: <0.1% @ 1 WPC
• SNR: 96 dB, A weighted
• Inputs: 3.5 mm AUX (front panel), Stereo RCA (rear panel)
• Outputs: Stereo binding posts (rear panel), 1/4" headphone (front panel)
• Input impedance: 10 kohms (minimum)
• Input sensitivity: 470 mV
• Channel separation: 77 dB
• Efficiency: >90%
• Dynamic range: >100 dB
• Power supply: 12 VDC, 2A center pin positive
• Dimensions: 1.28" H x 3.82" W x 5.16" D

SKU 848791006173
Model # DTA30HP
Barcode # 848791006173
Brand Dayton Audio
Shipping Weight 0.6000kg
