NHP25Ti-4 1" Titanium Dome High Power Neodymium Tweeter 4 Ohm

Extremely smooth response makes for easy transition to m

$55.00
RRP $57.98
SAVE $2.98 (5%)
In Stock


Calculate Shipping

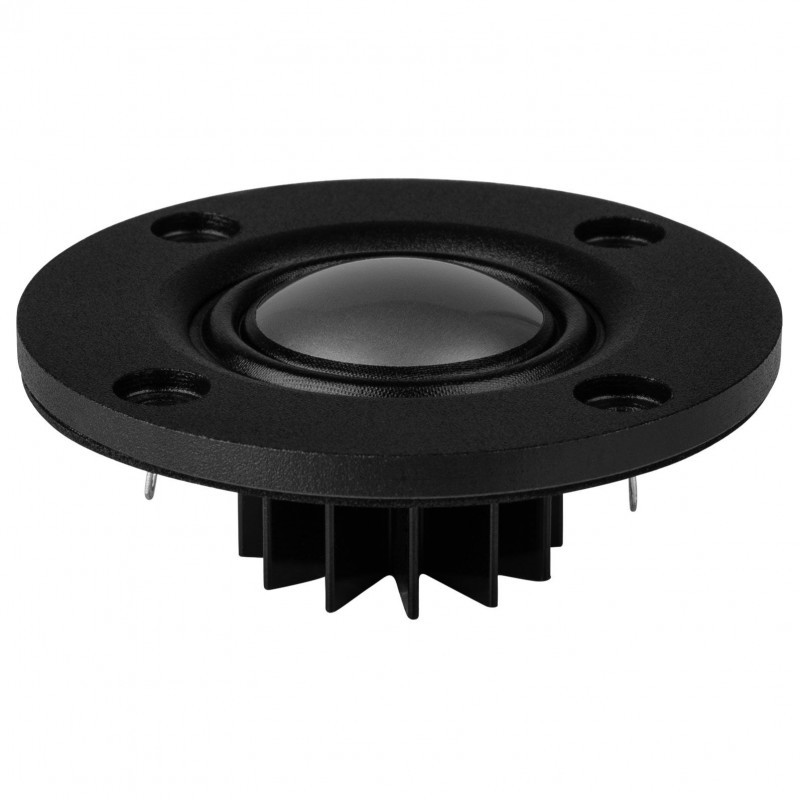

The Dayton Audio compact NHP25Ti-4 1" titanium dome tweeter uses a high temperature neodymium motor, Ferrofluid cooling, and rear mounted heatsink for improved heat dissipation making this tweeter suitable for higher output systems and even professional l

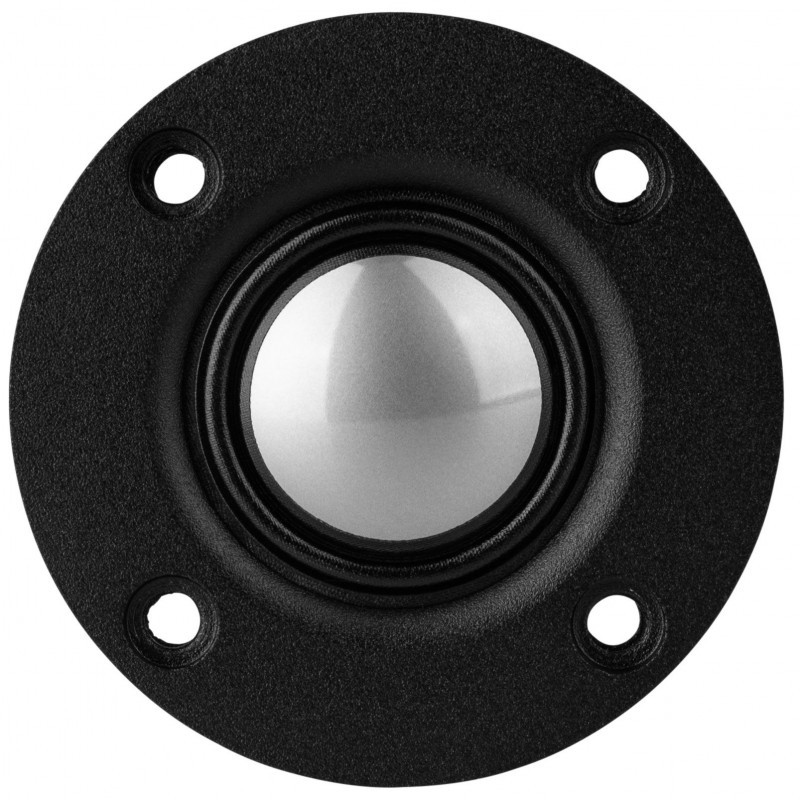

Dayton Audio's versatile NHP25Ti-4 is a 1" titanium-dome tweeter that offers the performance of more expensive tweeters in a compact and stylish package. The small yet powerful high temperature neodymium motor with attached aluminum heatsink and Ferrofluid-filled magnetic gap reduces power compression and improves long-term power handling. In addition, the carefully designed titanium diaphragm provides accurate treble response to over 20 kHz, excellent off-axis dispersion, and superb sonic detail.

The NHP25Ti-4 includes a 2.5" cast aluminum faceplate, however Dayton Audio does offer an optional 4.09" (104 mm) and 4.33" (110 mm) faceplate allowing this tweeter to be used as a drop in replace for many common sized tweeters.


(848791004889)

• Extremely smooth response makes for easy transition to midrange diver
• Over 94 dB efficiency is perfect for use in higher output designs
• Attached heatsink and ferrofluid cooling for increased power handling
• Compact cast aluminum faceplate minimizes center-to-center distance
• High temperature neodymium motor allows high output for extended periods


Model Number NHP25Ti-4
Color Black
Unit of Measure Each
UPC 848791004889
Warranty - Parts 5 Years
Warranty - Labor 5 Years
Product Shipping Weight (lbs.) 0.2500
Speaker Type Tweeter
Nominal Diameter 1"
Power Handling (RMS) 40 watts
Power Handling (max) 80 watts
Continuous Program Power --
Impedance 4 ohms
Sensitivity 94 dB 2.83V/1m
Frequency Response 3,000 - 20,000 Hz
Voice Coil Diameter 25.4 mm
Magnet Weight --
DC Resistance (Re) 3.23 ohms
Voice Coil Inductance (Le) 0.03 mH
Resonant Frequency (Fs) 1612 Hz
Mechanical Q (Qms) 5.23
Electromagnetic Q (Qes) 2.54
Total Q (Qts) 1.71
Diaphragm Mass Inc. Airload (Mms) --
Moving Mass Of Diaphragm (Mmd) --
Mechanical Compliance of Suspension (Cms) --
Surface Area Of Cone (Sd) --
Volume of Displacement (Vd) --
BL Product (BL) --
Compliance Equivalent Volume (Vas) --
Maximum Linear Excursion (Xmax) --
Driver's Mechanical Losses (Rms) --
Cone / Diaphragm Material Titanium Cone
Entry / Exit Diameter --
Surround Material --
Voice Coil Wire Material Copper
Voice Coil Former Aluminum
Basket/Frame Material Aluminum
Magnet Material Neodymium
Overall Outside Diameter 63.75 mm
Overall Depth 27.2 mm
Baffle Cutout Diameter 40.1 mm
Mounting Hole Diameter --
Bolt Circle Diameter --
Product Weight --

SKU 848791004889
Model # NHP25TI-4
Barcode # 848791004889
Shipping Weight 0.1200kg
