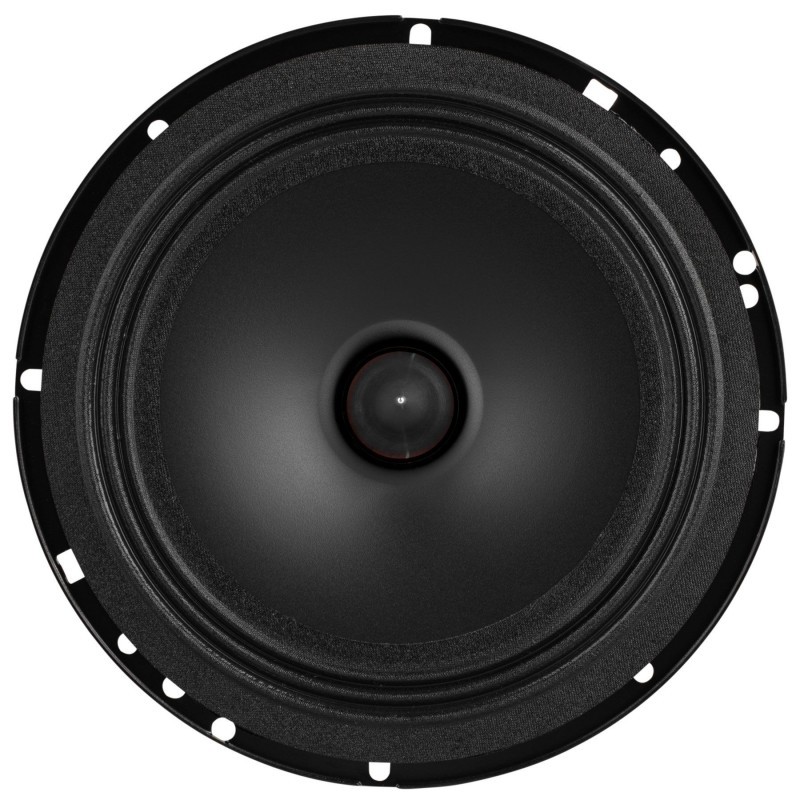

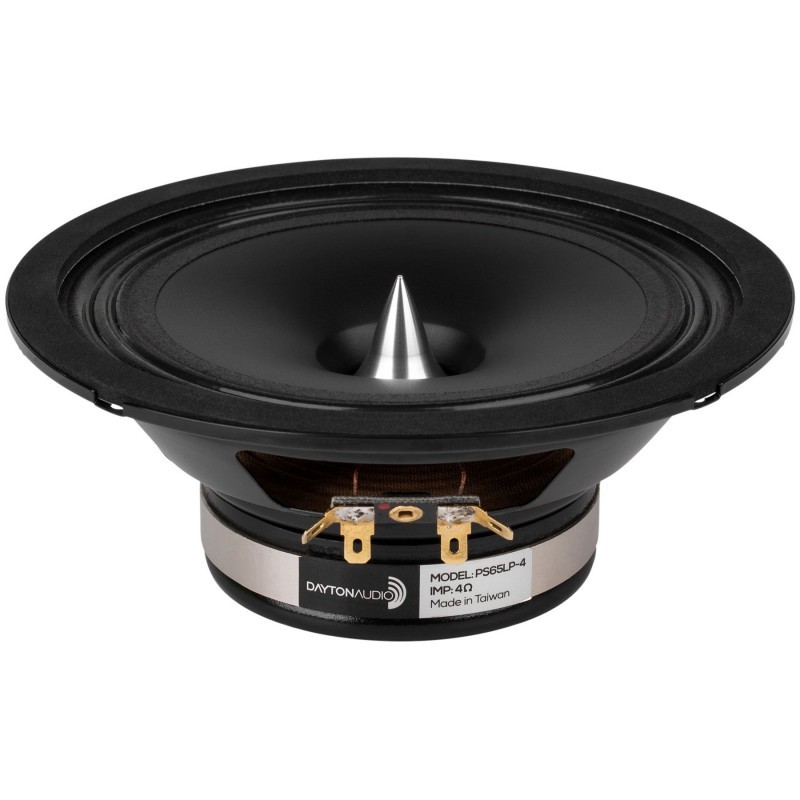

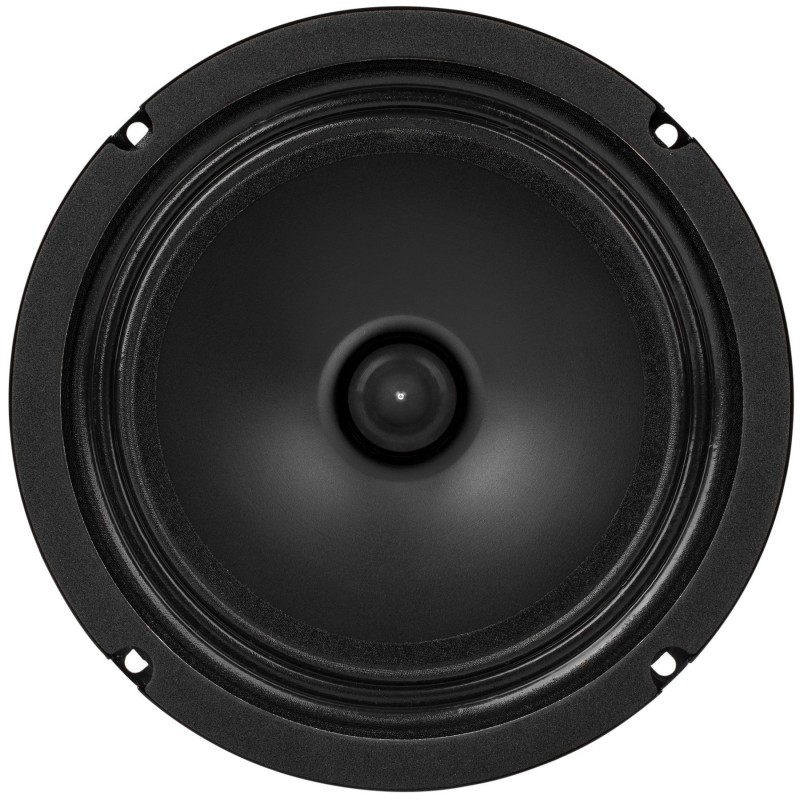

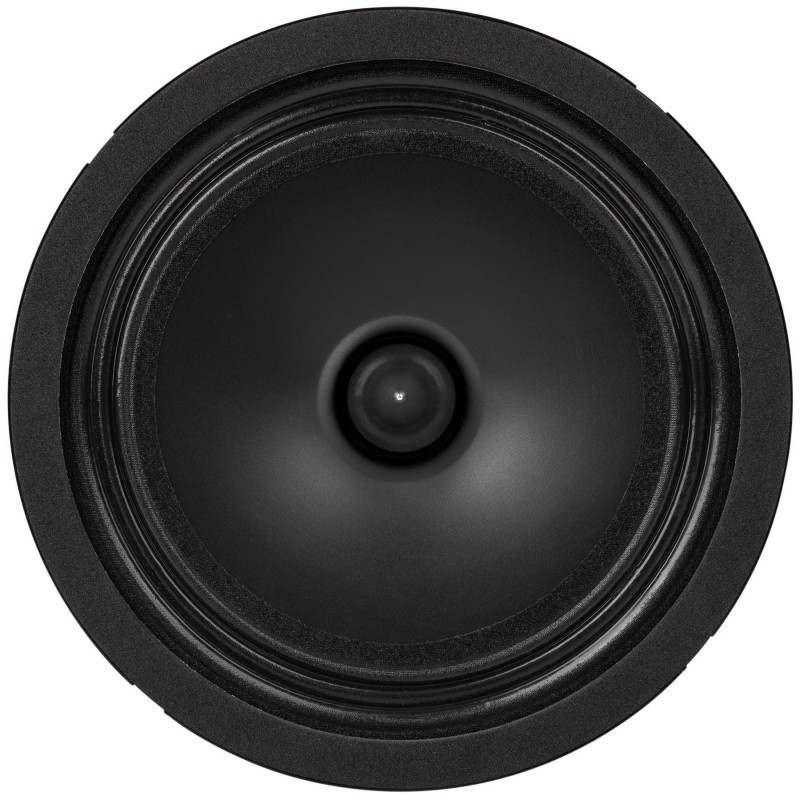

PS65LP-4 6-1/2" Ultra Efficient Low Profile Full-Range Driver 4 Ohm

Ultra-efficient, high SPL (99 dB @ 2.83V/1m*) high-perfo

$215.00
In Stock


Calculate Shipping

The Dayton Audio PS65LP-4 6-1/2" high efficiency full-range driver could be the ultimate upgrade for your factory stereo system. Designed to be a simple drop in replacement for your stock speakers, this driver's amazing efficiency can increase the output


Other than adding an amplified subwoofer you simply can’t make a better more cost effective improvement to your factory car stereo than swapping out those mediocre factory speakers for the Dayton Audio PS65LP-4 ultra-efficient 6-1/2" drivers.

Today even the most basic factory audio systems have various other electronic components and systems integrated into the head unit, as a result less consumers are willing to replace the head unit. Not only could you lose some features but in some cases may end up with electrical problems. Who wants to take out the head unit anyway!

Although the Dayton Audio PS65LP-4 (with 2-3/8” mounting depth, full-range capability, excellent off-axis response and exceptional efficiency) was purposely built for car audio, its parameters and design features serve it well for numerous other applications. Such as, but certainly not limited to: a full-range in-wall/on-wall/ceiling speaker system, a devoted midrange in a ultra-efficient three-way system, or as a great candidate for a folded horn or transmission line design for the class “A” amplifier guys.

*Per parameter T/S measurement using Dayton Audio DATS system


(848791003776)

• Ultra-efficient, high SPL (99 dB @ 2.83V/1m*) high-performance driver
• Low-profile 2-3/8" mounting depth suitable for car doors or any shallow designs
• Smooth high frequency roll-off even at 75° off-axis

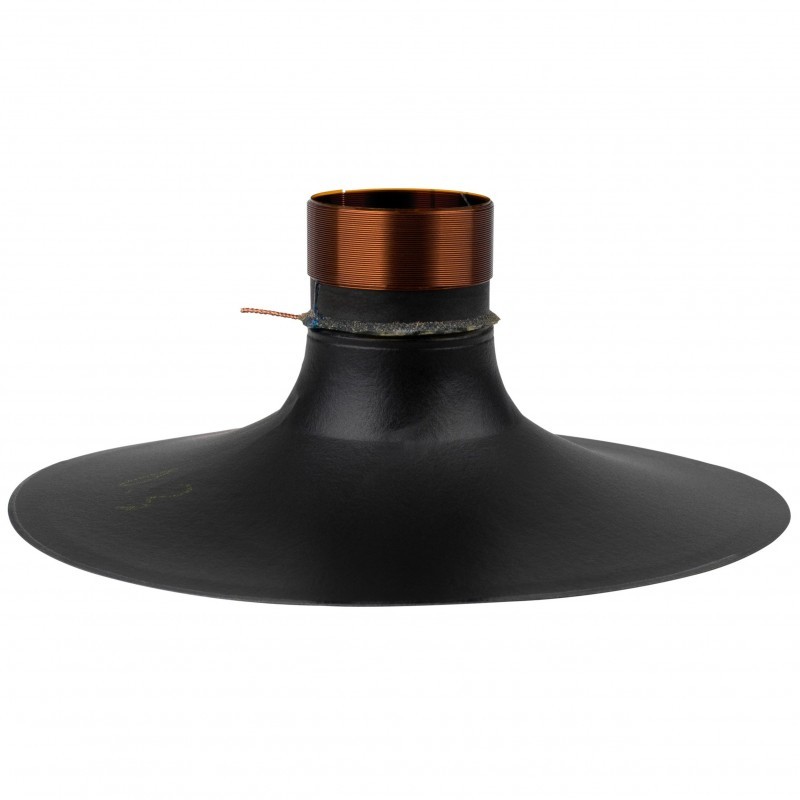

• Unique patent-pending bi-conical cone geometry provides high frequency extension and dispersion, as well as cone rigidity
• Highly damped polypropylene cone controls cone break-up and provides a smooth roll-off

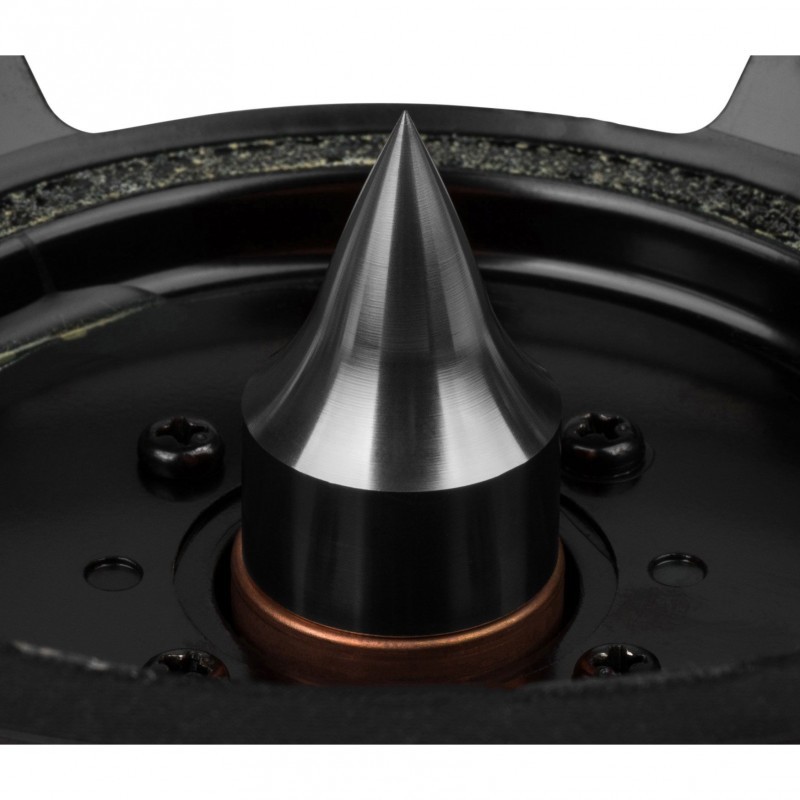

• Copper cap to keep inductance under control and to extend high frequency response
• Powerful 1.4 Tesla neodymium motor makes this one of the most efficient 6-1/2" car audio speaker on the market!


Speaker Series Point Source Series
Model Number PS65LP-4
Color Black
Unit of Measure Each
UPC 848791003776
Warranty - Parts 5 Years
Warranty - Labor 5 Years
Product Shipping Weight (lbs.) 3.0500
Speaker Type Full-Range
Nominal Diameter 6.50"
Power Handling (RMS) 40 watts
Power Handling (max) 80 watts
Continuous Program Power --
Impedance 4 ohms
Sensitivity 99.0 dB 2.83V/1m*
Frequency Response 60 - 20,000 Hz
Voice Coil Diameter 1"
Magnet Weight --
DC Resistance (Re) 3.2 ohms
Voice Coil Inductance (Le) 0.39 mH
Resonant Frequency (Fs) 67.3 Hz
Mechanical Q (Qms) 3.85
Electromagnetic Q (Qes) 0.26
Total Q (Qts) 0.24
Diaphragm Mass Inc. Airload (Mms) 6.8g
Moving Mass Of Diaphragm (Mmd) --
Mechanical Compliance of Suspension (Cms) 0.82 mm/N
Surface Area Of Cone (Sd) 122.7 cm²
Volume of Displacement (Vd) 49.1 cm³
BL Product (BL) 6.0 Tm
Compliance Equivalent Volume (Vas) 17.3 liters
Maximum Linear Excursion (Xmax) 4.0 mm
Driver's Mechanical Losses (Rms) --
Entry / Exit Diameter --
Surround Material Textile
Voice Coil Wire Material CCAW
Voice Coil Former Kapton®
Basket/Frame Material Stamped Steel
Magnet Material Neodymium
Overall Outside Diameter 6.50"
Overall Depth 2.48"
Baffle Cutout Diameter 5.67"
# Mounting Holes 4
Mounting Hole Diameter --
Bolt Circle Diameter --
Product Weight --

SKU 848791003776
Model # PS65LP-4
Barcode # 848791003776
Shipping Weight 1.3800kg
