CS620ECT 6-1/2" 2-Way Enclosed Ceiling Speaker 70V
6-1/2" black poly cone woofer
$219.00
Availability:
8-14 days
8-14 days
Notify me when back in stock
For large rooms, try these 6-1/2 inch enclosed ceiling speakers. Dual slot ports tune the woofer to the enclosure for deeper bass reproduction. If you have an attic with blown-in insulation, then these are your ideal ceiling speaker. Step up to a real sounding ceiling speaker. UL94 high temperature rated enclosure.

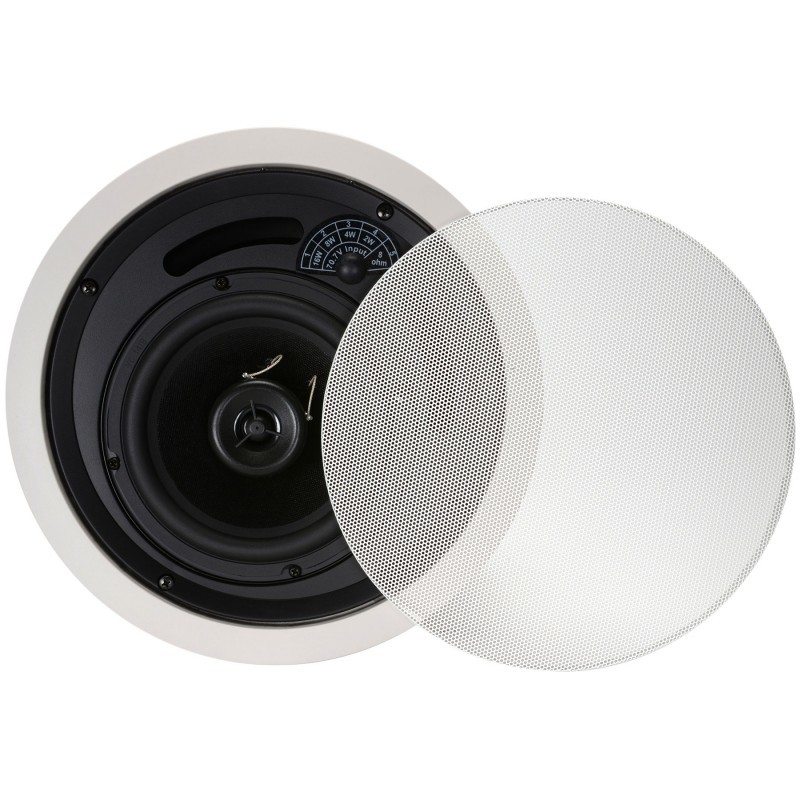

System includes: one speaker, removable steel mesh grill, built-in mounting brackets, hardware, and installation instructions.
*Note: Remove and discard the 1/8" perforated ring that connects the center "painting grill mask" and the outer "mounting template" before attempting to use the templates.
(844632000508)
• 6-1/2" black poly cone woofer
• 1" Mylar tweeter
• Gold plated spring loaded binding posts
• 70V transformer is easily accessible from the front

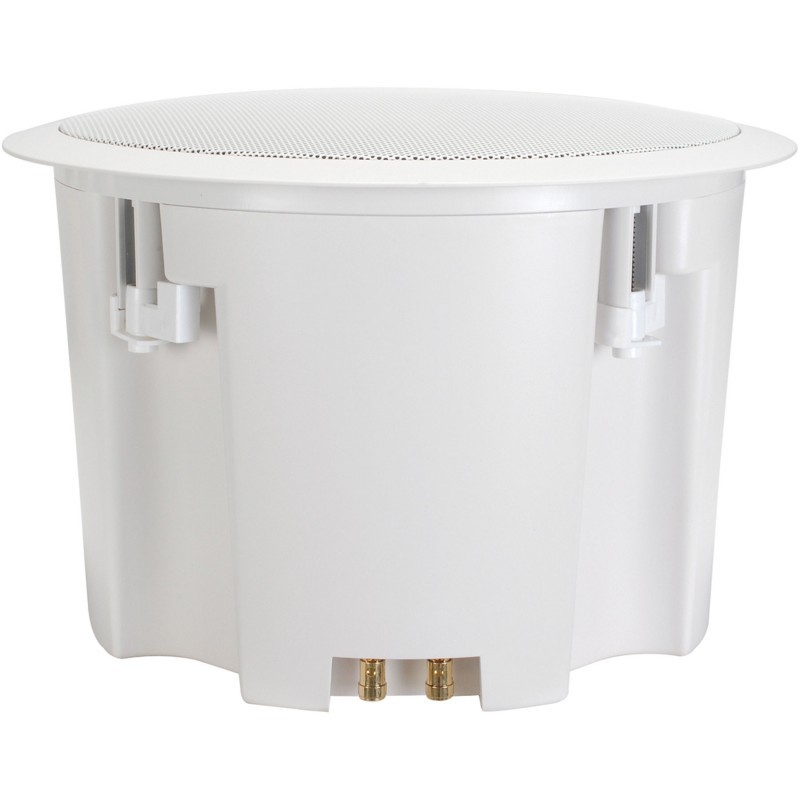

• UL94 high temperature rated enclosure
• 1" Mylar tweeter
• Gold plated spring loaded binding posts
• 70V transformer is easily accessible from the front
• UL94 high temperature rated enclosure
| Speaker Series | Contractor Series |
|---|---|
| Model Number | CS620ECT |
| Unit of Measure | Each |
| UPC | 844632000508 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 6.4000 |
| Speaker Configuration | 2-Way |
| Input Rating | 70V |
| Power Handling (RMS) | 25 watts |
| Power Handling (max) | 50 watts |

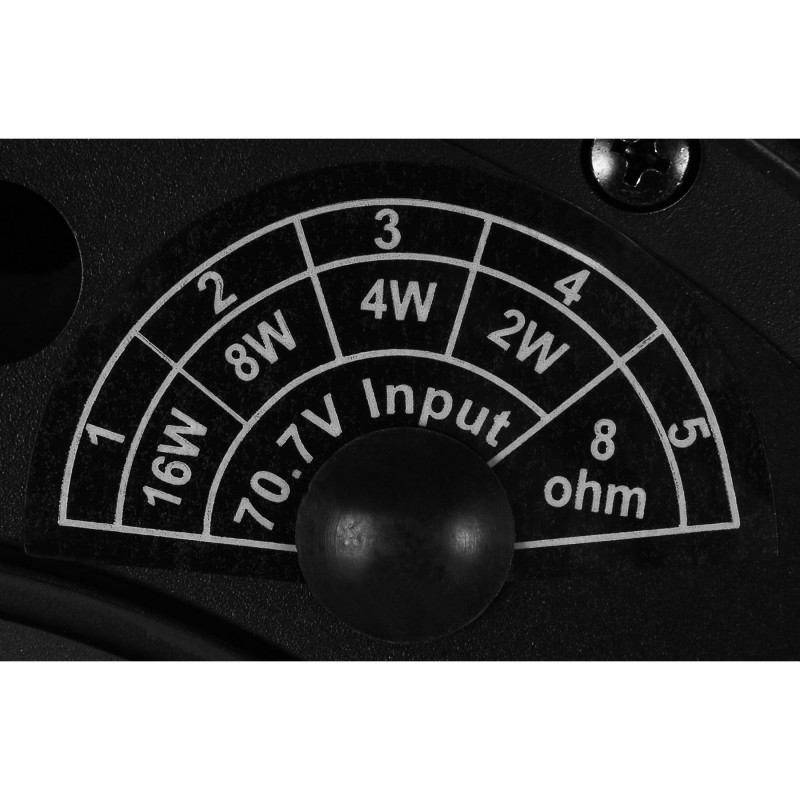

| 70V Tap Settings | 2W, 4W, 8W, 16W, 8 ohm |
| Frequency Response | 50 - 20,000 Hz |
| Sensitivity | 88 dB 1W/1m |
| Woofer Type | Coated Paper |
| Woofer Diameter | 6-1/2" |
| Tweeter Type | Mylar Dome |
| Tweeter Size | 1" |
| Crossover | -- |
| Special Features | Enclosed Back |
| Grill Type | Removable Steel Mesh |
| Replaceable Grill | -- |
| Magnet Material | -- |
| Magnet Weight | -- |
| Product Width | -- |
| Product Length | -- |
| Product Height | 11" dia. |
| Product Depth | 7" |
| Mounting Hole Size | 9-9/16" |
| Installation | Built-in Mounting Brackets |
| Box Includes | -- |
| SKU | 844632000508 |
| Model # | CS620ECT |
| Barcode # | 844632000508 |
| Brand | Dayton Audio |
| Shipping Weight | 3.2000kg |
| Shipping Width | 0.279m |
| Shipping Height | 0.203m |
| Shipping Length | 0.279m |
| Shipping Cubic | 0.015863000m3 |
| Assembled Length | 0.279m |
| Assembled Height | 0.203m |
| Assembled Width | 0.279m |
