DA10T 10W Tabletop Mixer-Amplifier 70V or 4 Ohm 1 Mic 1 Aux 1 Telephone DC12V

Flexible 70V / 100V or 4 - 16 ohm compatibility

8-14 days

Calculate Shipping

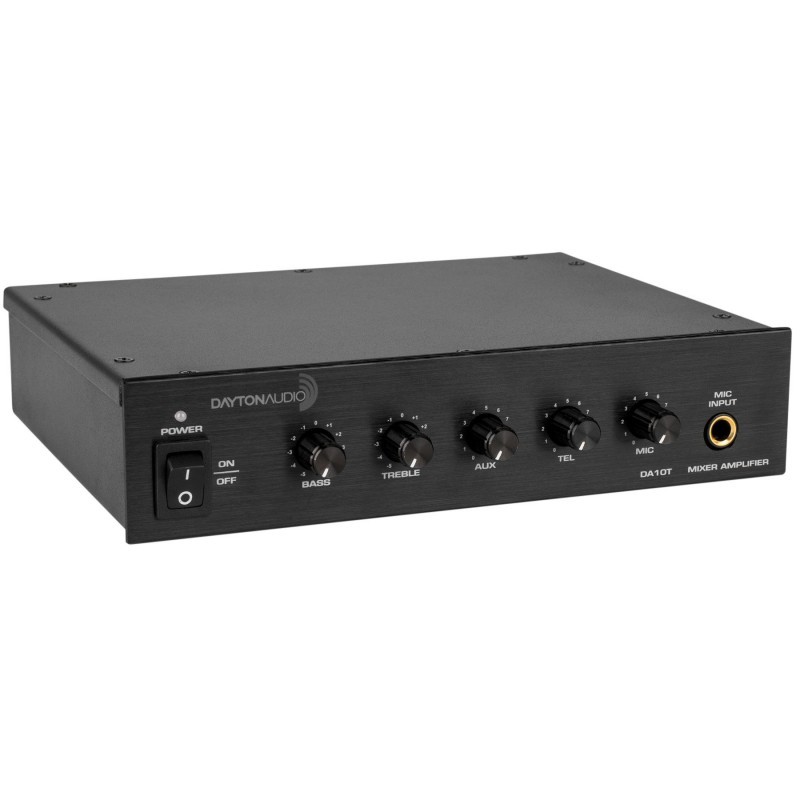

With 10 watts of power, AC/DC operation, and an easy-to-use design, the DA10T from Dayton Audio is the perfect commercial mixer amplifier solution for small installs or expansions, as well as temporary or mobile applications.

The DA10T is the most compact model in the lineup of Dayton Audio commercial mixer-amps, ideal for small jobs, adding an extra zone, or applications where AC power is not available or convenient.

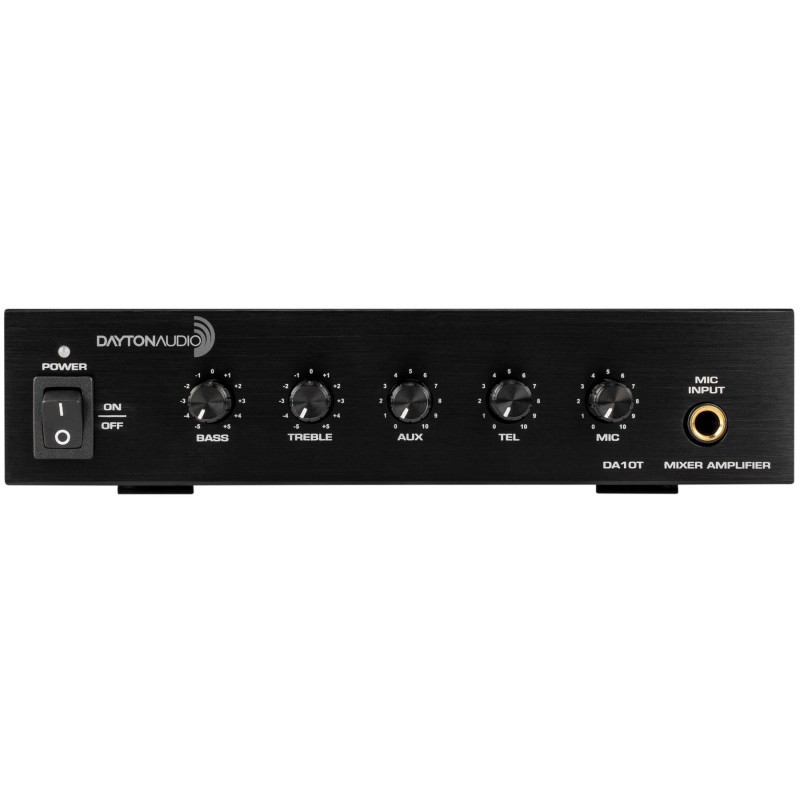

The DA10T provides 10 watts of power for speakers which can be 70V, 100V, or 4 - 16 ohm speakers. Three inputs allow for microphone, line level (BGM), and telephone paging with level controls for each input on the front panel. Bass and treble controls are also present, so you can tailor the response to suit your specific needs.

For added flexibility, the DA10T operates on 12 VDC, and includes a 120 VAC 2A power adapter. For DC operation, simply supply 12V power via the 2.1 x 5.5 mm power jack (plug not included).

Dayton Audio's new commercial mixer-amps have a no-nonsense design for easy installation and use, and several power levels to choose from, so you're sure to find one that meets your needs. Features like 70V/100V or 4 - 16 ohm output and mic/telephone priority muting provide maximum flexibility. And, with the same uncompromising standards of quality and value you've come to expect from Dayton Audio, you know it will be sounding great for years to come.

Specifications: • Maximum power output: 10W (1% THD) • Speaker output: 70V, 100V, 4 -16 ohm (mono, not to be used with mixed impedance loads) • Frequency response: 80 - 16,000 Hz • Mic input sensitivity/impedance: 55 mV, 500 ohms • Aux input sensitivity/impedance: 300mV, 500 ohms • Tel input sensitivity/impedance: 1V, 500 ohms • Power input: 12 VDC • Maximum power consumption: 15W • Dimensions: 7.87" x 5.91 x 1.73" (200 x 150 x 44 mm) • Weight: 3.97 lbs. (1.8 kg).


• Flexible 70V / 100V or 4 - 16 ohm compatibility

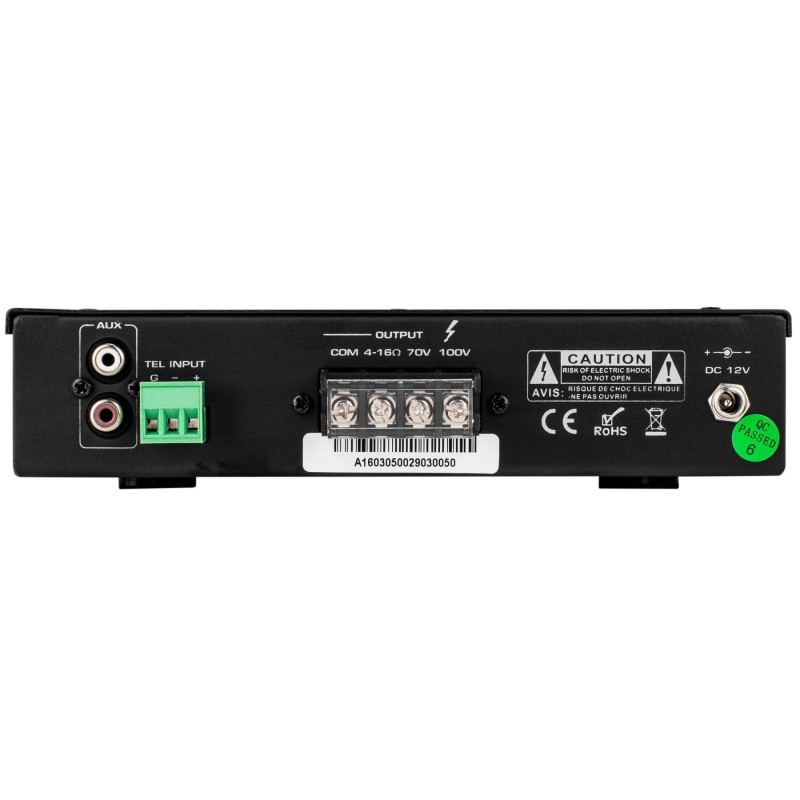

• 1/4" Mic, RCA Aux, and terminal block Tel inputs
• 12 VDC power input, 120 VAC with included power adapter
• Priority muting for mic and telephone inputs

Model Number DA10T
Color Black
Unit of Measure Each
UPC 848791002274
Warranty - Parts 5 Years
Warranty - Labor 5 Years
Product Height 1.73"
Product Width 7.87"
Product Length --
Product Depth 5.91"
Product Shipping Weight (lbs.) 3.9700
Amplifier Type Power Amplifiers
Power Output 10W (1% THD)
Power Output (RMS @ 70V) Range < 25W
Output Channels 1
Output Connectors Screw Terminals
Output Types 4 ohms, 8 ohms, 16 ohms, 70V, 100V
Inputs 3
Input Connectors 1/4", RCA, Terminal Block
Input Impedance Mic input sensitivity/impedance: 55 mV, 500 ohms
Signal-to-Noise Ratio --
THD @ Rated Power 1%
Parametric EQ --
Phase Adjustment --
Low-pass Crossover --
Low Pass Adjustment --
Dynamic Range --
Frequency Response 80 - 16,000 Hz
Efficiency --
Gain --
Bass Boost --
Voltage Requirement 12 VDC, 110 VAC
Auto-on Sensitivity --
Stand-by Power Rating --
Special Features --
SKU 848791002274
Model # DA10T
Barcode # 848791002274
Brand Dayton Audio
Shipping Weight 2.1300kg
Shipping Width 0.254m
Shipping Height 0.152m
Shipping Length 0.330m
Shipping Cubic 0.012782000m3
