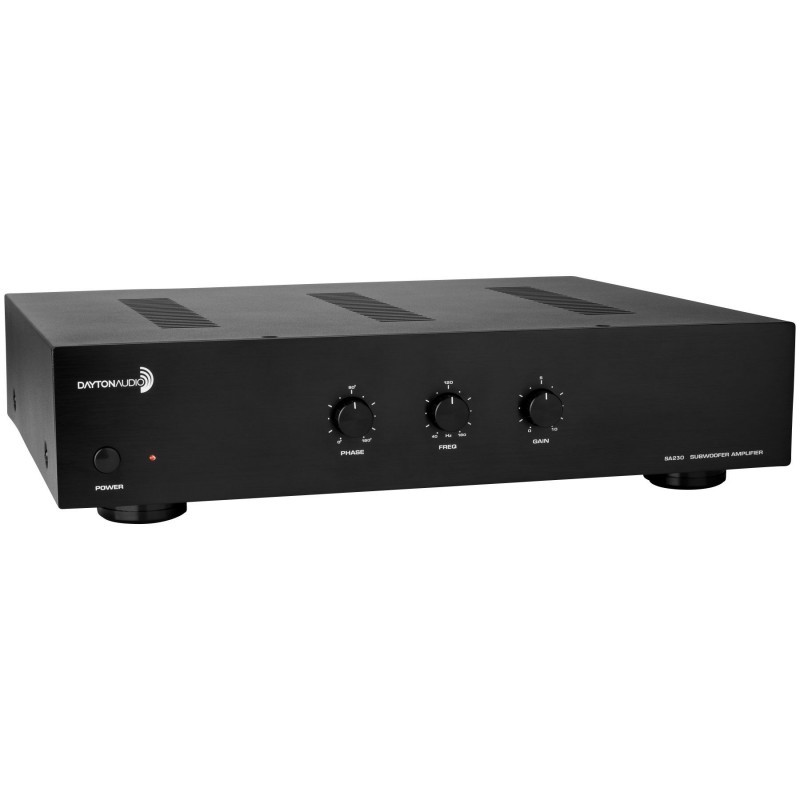

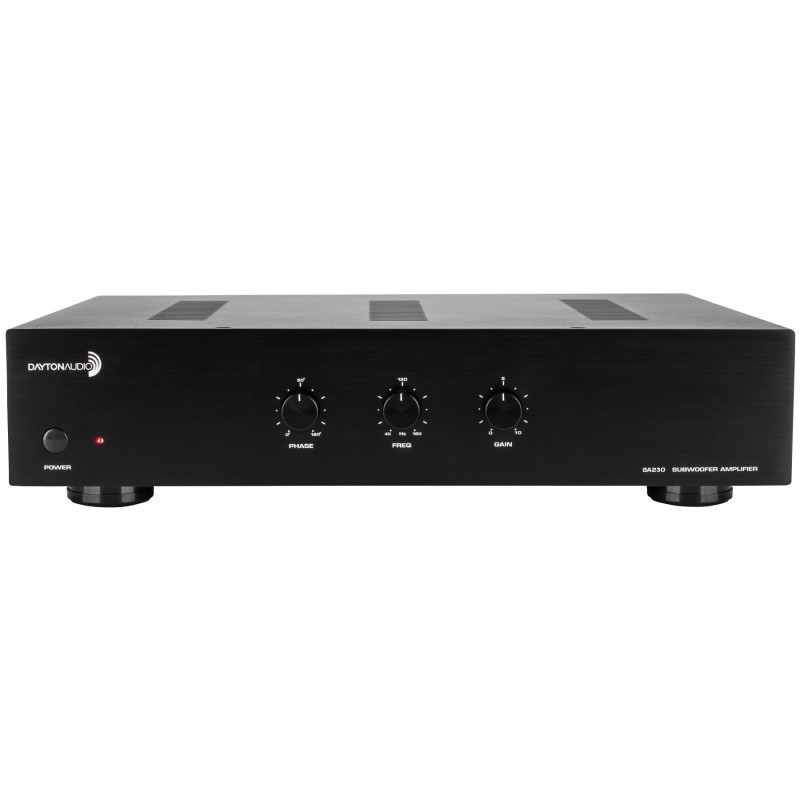

SA230 230W Subwoofer Amplifier
Heavy-duty steel chassis with brushed aluminum faceplate
$595.00
RRP $616.10
SAVE $21.10 (3%)
In Stock
Notify me when back in stock
Dayton Audio's SA230 subwoofer amplifier delivers all of the clean, solid power required to drive small-to-medium sized subwoofer speaker systems. Its tabletop design is compatible with many other popular electronic devices and different styles of multimedia furniture. The SA230 is engineered to provide high fidelity subwoofer amplification and is tailored for home audio and home theater audio systems. Its variable gain, bass boost, crossover frequency, and phase adjustment guarantee perfect integration with any audio system in any listening environment. Short circuit and thermal protection built-in.
(844632089572)
• Heavy-duty steel chassis with brushed aluminum faceplate
• Mono Class AB output stage for solid, well defined output

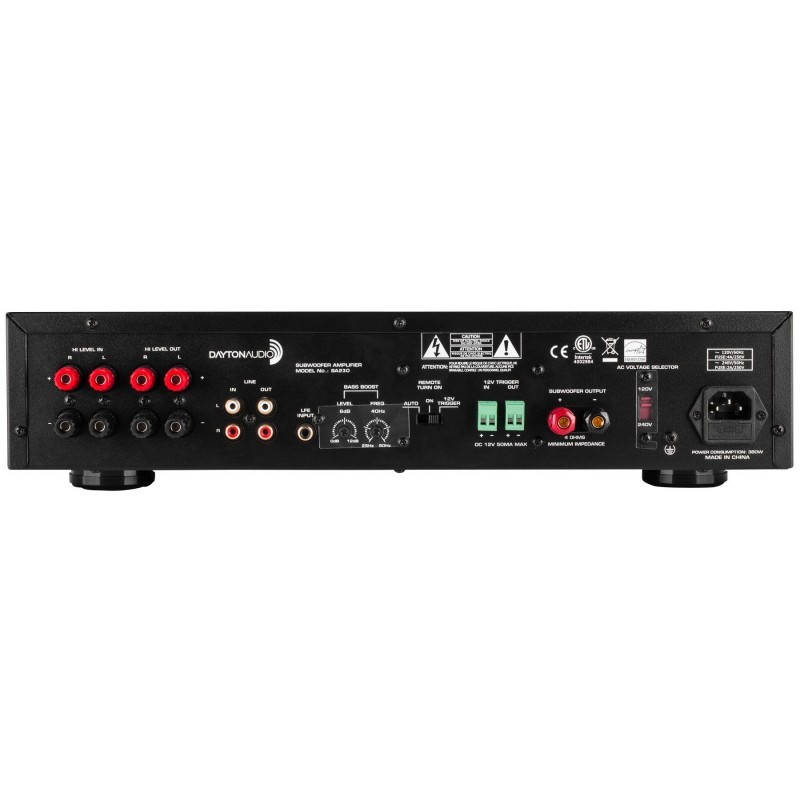

• Low-level, high-level, and LFE inputs
• Manual, auto, or triggered on/off modes for integration into any automated system
• Selectable bass boost
• Adjustable phase, gain, and crossover
• Pop-out adjustment knobs keep settings from being disturbed easily
• Mono Class AB output stage for solid, well defined output
• Low-level, high-level, and LFE inputs
• Manual, auto, or triggered on/off modes for integration into any automated system
• Selectable bass boost
• Adjustable phase, gain, and crossover
• Pop-out adjustment knobs keep settings from being disturbed easily
| Model Number | SA230 |
|---|---|
| Color | Black |
| Unit of Measure | Each |
| UPC | 844632089572 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Height | 3-3/4" |
| Product Width | 17-1/4" |
| Product Length | -- |
| Product Depth | 13-7/8" |
| Product Shipping Weight (lbs.) | 21.0500 |
| Amplifier Type | Subwoofer Amplifiers |
| Power Output | 156 watts into 8 ohms 233 watts into 4 ohms |
| Power Output (RMS @ 70V) Range | -- |
| Output Channels | 2 |
| Output Connectors | Binding Post |
| Output Types | 4 ohms, 8 ohms |
| Inputs | 3 |
| Input Connectors | RCA |
| Input Impedance | 12K ohms |
| Signal-to-Noise Ratio | 85 dB A-weighted |
| THD @ Rated Power | 1% |
| Parametric EQ | -- |
| Phase Adjustment | 0° to 180° |
| Low-pass Crossover | -- |
| Low Pass Adjustment | 40 Hz to 180 Hz |
| Dynamic Range | -- |
| Frequency Response | -- |
| Efficiency | -- |
| Gain | 0 dB to +10 dB |
| Bass Boost | 25 Hz to 50 Hz |
| Voltage Requirement | 120/230 VAC, 50/60 Hz |
| Auto-on Sensitivity | -- |
| Stand-by Power Rating | 120V 0.82W |
| Special Features | Pop-out adjustment knobs Manual, auto, or triggered on/off modes |
| SKU | 844632089572 |
| Model # | SA230 |
| Barcode # | 844632089572 |
| Brand | Dayton Audio |
| Shipping Weight | 12.7250kg |
| Shipping Width | 0.483m |
| Shipping Height | 0.210m |
| Shipping Length | 0.527m |
| Shipping Cubic | 0.053300000m3 |
| Assembled Length | 0.527m |
| Assembled Height | 0.210m |
| Assembled Width | 0.483m |
