DTA-1 Class D Digital AC/DC Amplifier 15 WPC

Palm-size Class D 30 watt amplifier

In Stock

Calculate Shipping

Dayton Audio's DTA-1 has the heart of a serious performer in a truly portable package. A Class D chip lets the DTA-1 produce imaging, dynamics, and sound quality that rivals tube amps. Up to 15 watts per channel is on tap to push bookshelf speakers.



Don't let the compact size fool you—Dayton Audio's DTA-1 mini amplifier is a serious piece of audio gear. A proprietary Class D amplifier chip enables the DTA-1 to be 88% efficient while still producing pristine, high-resolution output. This makes the DTA-1 T-Amp an obvious choice for powering high efficiency single driver speakers. Up to 15 watts of power per channel is on tap to drive desktop and bookshelf speakers, for the ultimate portable hi-fi setup at home or in your office.

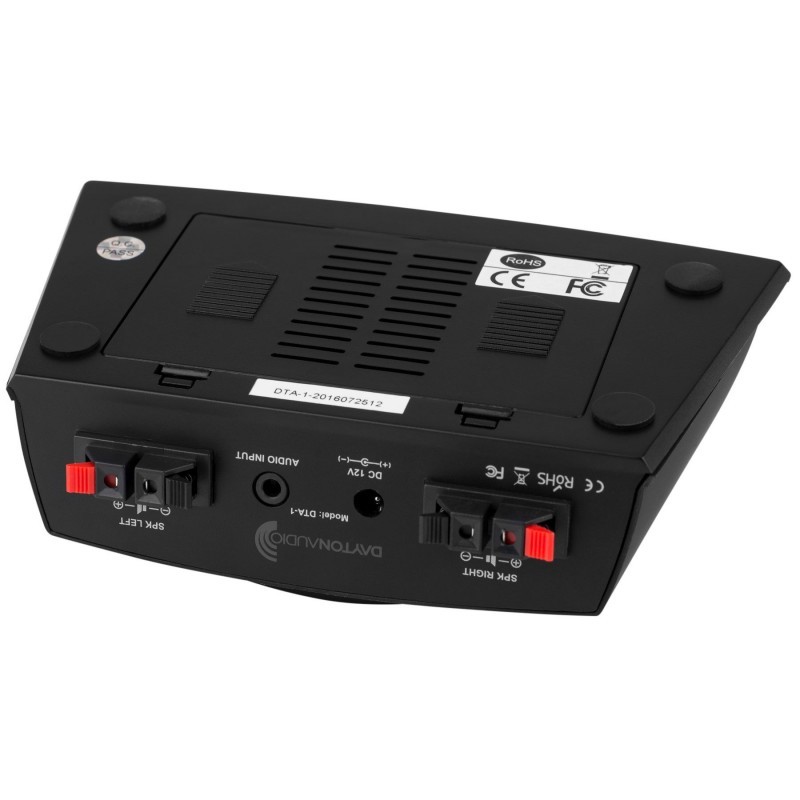

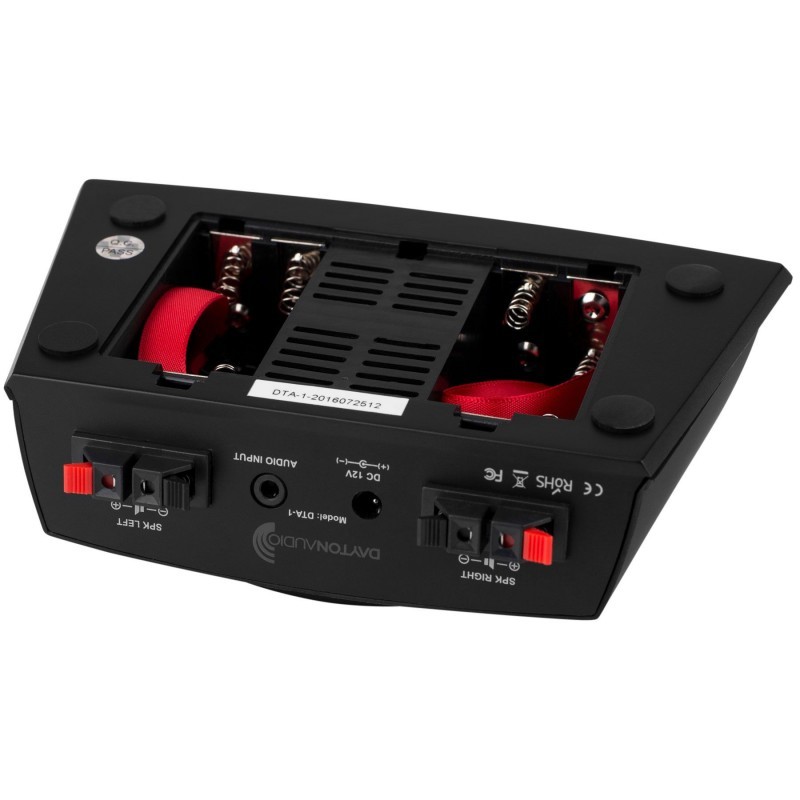

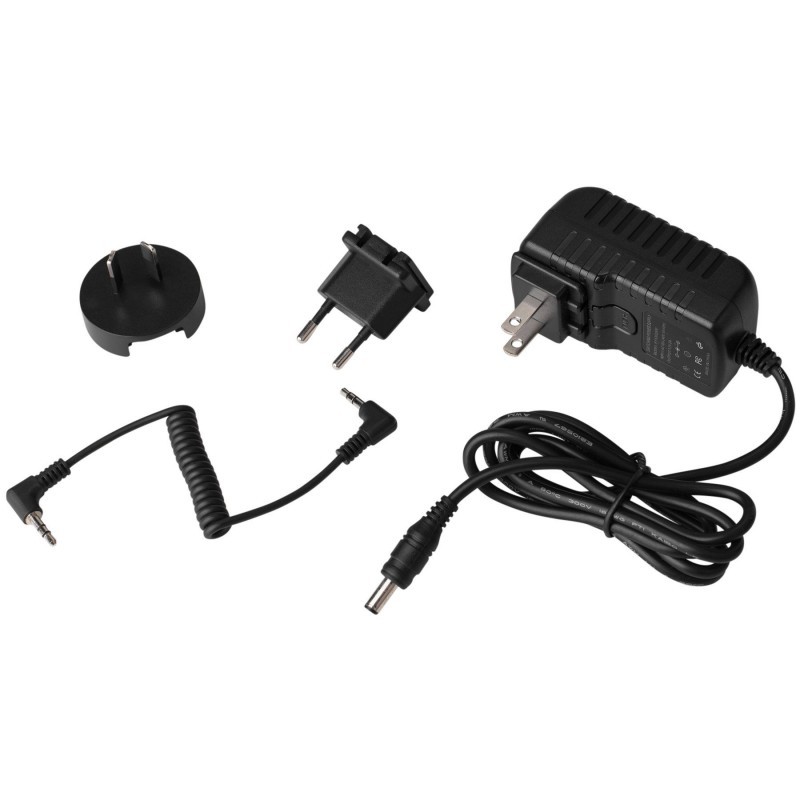

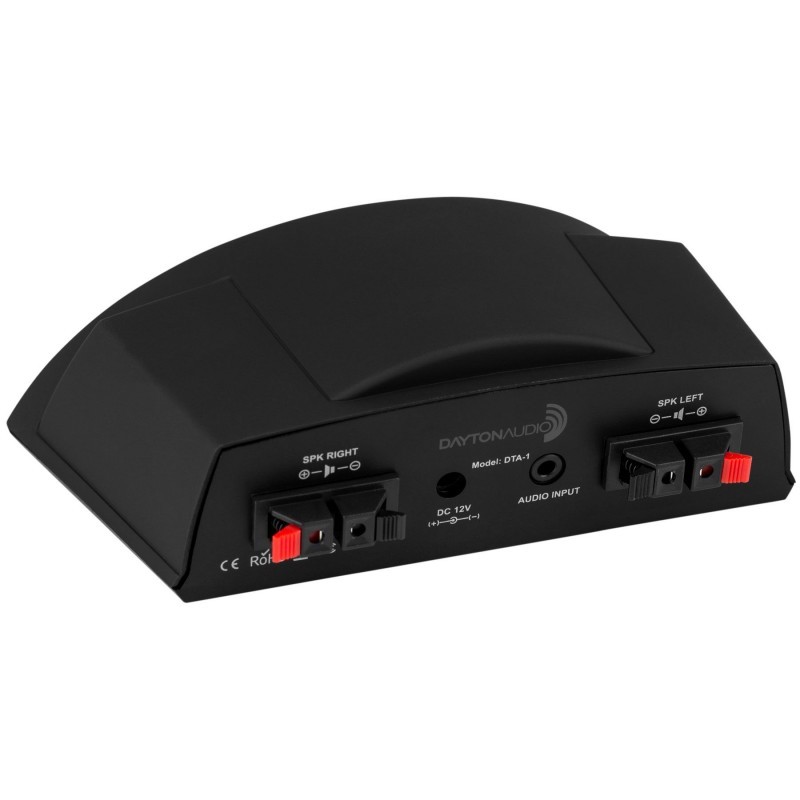

The Dayton Audio DTA-1 T-Amp can run off of 8 AA batteries for total portability, or the included switching power supply (with quick-release US and European style plugs) for stationary use. A rear mounted 3.5 mm stereo (1/8") audio input is provided. The amplifier also includes a 6" long, coiled male-to-male 3.5 mm cable for making connections to iPods, MP3 players, PCs, and portable CD or DVD players. Spring-loaded push terminals are incorporated for quick speaker wire termination. Intelligent short-circuit and over-temperature protection ensure amplifier longevity. .


Check out these DTA-1 reviews!


Sound Advice - November 2017

Target PC Tech Magazine - November 27, 2012








• Palm-size Class D 30 watt amplifier
• Battery or AC poweredpower supply includedfor perfect portability
• 88% Amp efficiency for longer battery life
• Superior sound quality
• Soft turn-on eliminates annoying speaker pop
• CE and RoHS rated design


Model Number DTA-1
Color Black
Unit of Measure Each
UPC 844632074356
Warranty - Parts 5 Years
Warranty - Labor 5 Years
Product Height 2"
Product Width 6-1/8"
Product Length --
Product Depth 3-3/4"
Product Shipping Weight (lbs.) 1.1000
Amplifier Type Mini Amplifiers
Power Output 2 x 15 watts RMS
Power Output (RMS @ 70V) Range --
Output Channels 2
Output Connectors Spring Loaded Terminals
Output Types 4 ohms, 8 ohms
Inputs 1
Input Connectors 3.5mm
Input Impedance 2 k ohm ±%
Signal-to-Noise Ratio 103 dB, A weighted
THD @ Rated Power 15 watts RMS (into 4 ohms @ 10% THD)
2 x 10 watts RMS (into 4 ohms @ 0.1% THD)
Parametric EQ --
Phase Adjustment --
Low-pass Crossover --
Low Pass Adjustment --
Dynamic Range 102 dB
Frequency Response 20 - 20,000 Hz
Efficiency >88% @ 10W, 8 ohm
Gain --
Bass Boost --
Voltage Requirement --
Auto-on Sensitivity --
Stand-by Power Rating --
Special Features Soft turn-on
CE and RoHS rated design
Battery or AC powered
Intelligent short-circuit and over-temperature protection


SKU 844632074356
Model # DTA-1
Barcode # 844632074356
Brand Dayton Audio
Shipping Weight 0.5300kg
Shipping Width 0.083m
Shipping Height 0.133m
Shipping Length 0.241m
Shipping Cubic 0.002656000m3
Assembled Length 0.241m
Assembled Height 0.133m
Assembled Width 0.083m

Great sound for the price

By: on 22 May 2017
Like the Sonic Impact before it, this is a great sounding amp with heaps of uses. It has a great musical presentation that embarrasses many other amps at 10x the price. Don't be fooled by the size as it copes well within it's limitations but don't expect it to be a powerhouse in larger room. The only issue I have is the spring clip speaker terminals (just tin the ends of the speaker wires to be safe from loose strands).
