Available as Disassembled kits or Pre-Assembled units
Disassembled kits
•Very simple and fast assembly procedure
•Screw driver is the only tool required
Pre-Assembled units
•Ready to be used speaker towers
•Tested and tuned by a professional

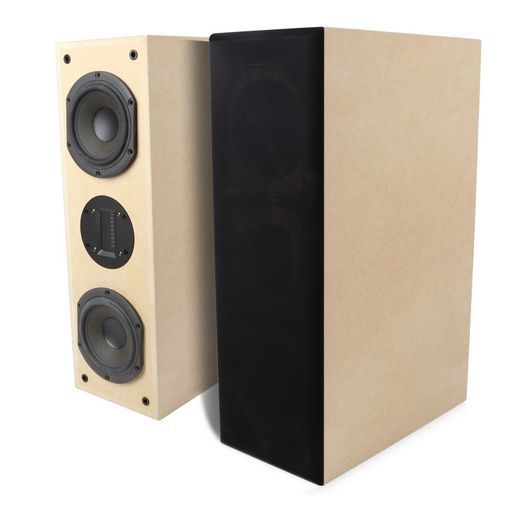

High quality Australian made enclosures supplied fully assembled with pre-drilled screw holes. Port installed with low turbulence bevelled edges. All internal surfaces are carpeted with acoustically damped material. Made from 18mm MDF with double thickness 36mm for the front panel. Internal bracing with edges chambered for excellent rigidity reducing cabinet resonance.
Available in bare MDF for painting, etc. Or in Black Vinyl veneer
Attractive front cloth-grille on wooden routered frames fully assembled are included.
LMS developed crossover is assembled with premium grade components.
Linkwitz & Riley with Bessel-Butterworth response for linear phase.
Air-core copper inductors and non-inductive resistors.
SCR 400V metalized polypropylene capacitors manufactured in France.
4mm Gold-plated binding posts can be wired singular or Bi-wired.
Low capacitance OFC Cable with no-soldering speaker connectors.
Professional development time has produced a crossover solution that offers very low distortion, linear sound with very accurate phase response.
Australian made cabinets fully assembled Internal bracing to reduce resonances
All box surfaces have acoustic dampening Internal edges are rounded to reduce diffraction
Port is routered to reduce turbulence noise
LMS Engineered custom crossovers Copper air coils & French SCR Capacitors
Excellent phase with linear characteristics
High SPL Peerless HDS drivers 832873 Matched JP3.0 Fountek Ribbon Tweeters Gold-plated 4mm Bi-Amp input terminals All wiring and screws included Extremely simple screw-driver assembly
(20527)
Order Code |
HDSK260 |
Size |
180(w)x555(h)x365(d)mm |
Price Type |
Pair |
Power |
5 to 150W |
Freq. |
47Hz - 25KHz |
QTY |
2 |
Weight |
15Kg |
Impedance |
4 ohm (3.6 ohm Re) |
Grille |
Yes |
Sens. |
92.5dB |
Woofer |
831882 |
Manufacturer |
Peerless/Fountek |
Suits |
Speaker Stand |
Crossover |
3.8KHz 12/18dB/Oct |
Tweeter |
JP3.0 |
Impedance (Ohm) |
4 Ohm |
Power (RMS) |
60Wrms |
Inch |
5" |
SKU | 20527 |
Brand | DST |
Shipping Weight | 30.0000kg |
