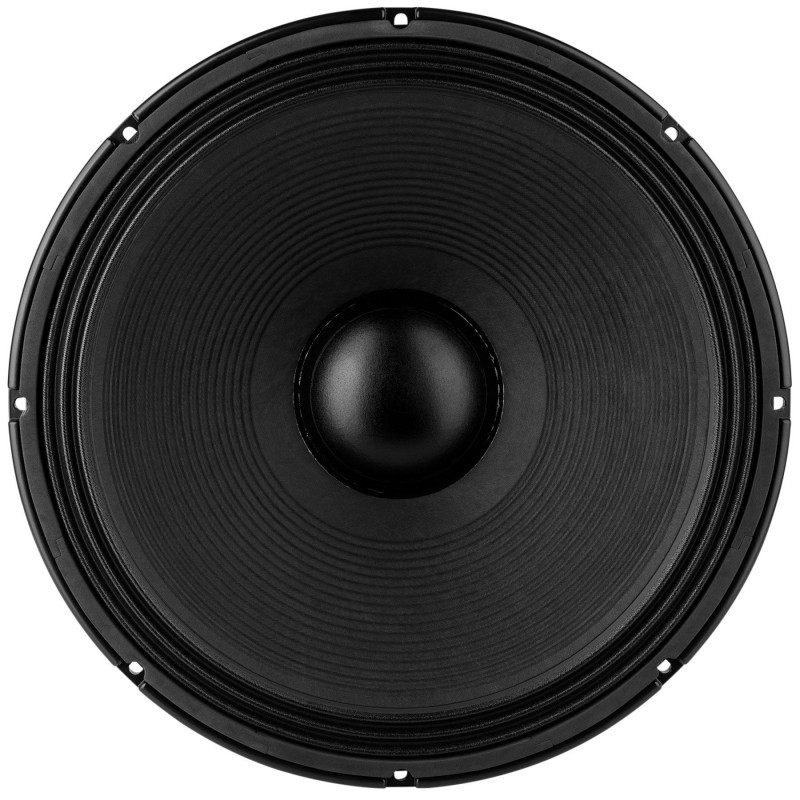

PN470-8 18" NEO Series Pro Woofer with 4" Voice Coil 8 Ohm

4" diameter inside/outside wound copper voice coil on gl

$595.00
RRP $600.00
SAVE $5.00 (1%)
Availability:
8 - 14 Days Lead time


Calculate Shipping

Dayton Audio's PN470-8 18" pro woofer is designed to deliver reliable low frequency operation with extreme output capability and minimal power compression. Featuring a 4" inside-outside wound voice coil, powerful neodymium motor, distortion reducing coppe


Dayton Audio left no boxes unchecked on the PN470-8 woofer. It features high power handling, 4" inner and outer wound voice coil, glass fiber former, powerful FEA optimized Neodymium motor, ribbed paper cone, and a copper cap on top of the extended pole piece. Thanks to the lightweight motor assembly, the PN470-8 is 30% lighter than a comparable ferrite driver making it "Roadie approved" and perfect for mobile DJs and portable PA systems. The PN470-8 is an ideal driver for any high output 2-way and 3-way speaker systems, bass bins, or horn loaded designs.



Lightweight but Powerful Motor Assembly

The lightweight but powerful neodymium motor assembly on the PN470-8 has been FEA optimized to provide a combination of low distortion and high efficiency. With the large neodymium magnet mounted inside the voice coil nearly all of the magnetic strength is concentrated into the magnetic gap providing up to 40% better utilization than conventional motor designs. The extended pole piece includes a large copper cap helping to lower distortion and linearize inductance.

Rugged Construction and Suspension

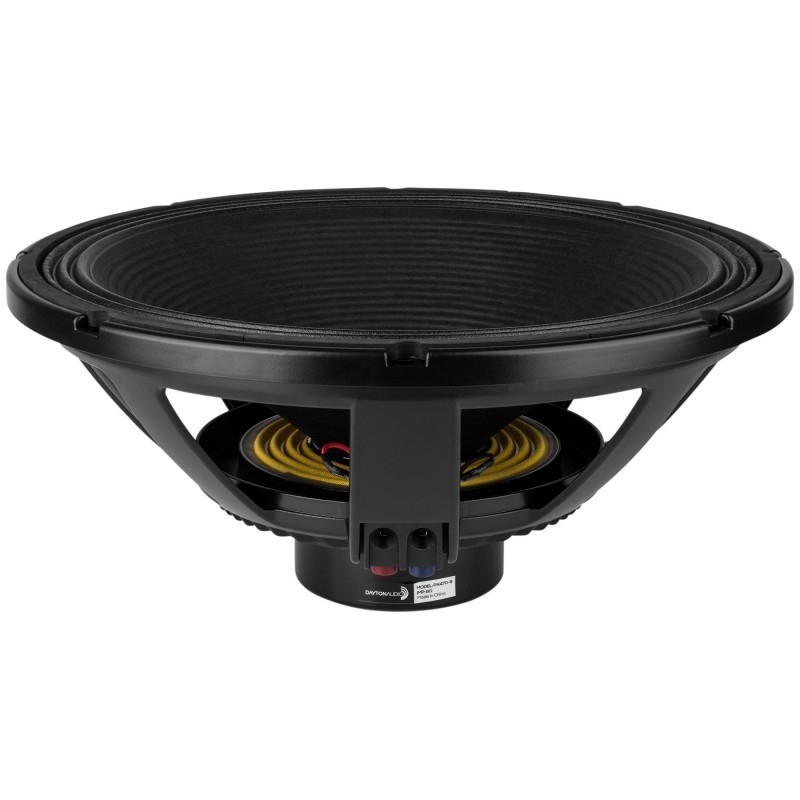

To stand up to the use and abuse of the professional sound environment Dayton Audio made sure the PN470-8 can take a beating. The cast aluminum frame uses 8 wide spokes to firmly support the motor assembly, and the thick mounting flange is reinforced to create an incredibly solid mounting surface. The cone, constructed of thick paper for a natural response, includes glass fiber reinforcement and uses a ribbed design offering additional structural support. Supporting the cone is a heavy spider with integrated silver tinsel leads and triple roll treated cloth surround, both designed for high excursion applications allowing the PN470-8 to handle short bursts of excessive power without damage.

High Power Handling and Low Power Compression

Along with high efficiency, you need a lot of power to achieve extreme SPL levels. Capable of handling up to 800 watts RMS and 1,600 watt peaks, the PN470-8 can take the heat. The 4" voice coil uses a vented fiberglass former with an inside/outside winding configuration which doubles the coil's exposed surface area for improved heat dissipation. The motor assembly includes a large pole vent along 8 large peripheral vents in the voice coil gap to keep fresh air moving across the coil keeping temperature at a minimum. Finally, the frame has venting behind the spider with integrated heatsinks removing as much heat as possible from the sensitive motor and voice coil.





(848791004940)

• 4" diameter inside/outside wound copper voice coil on glass fiber former
• Powerful FEA optimized Neodymium motor system (Bl over 25 TM)
• High efficiency (97dB SPL at 2.83V/m) for amazing output capability
• Generous 6.5 mm of Xmax with 48 mm peak-to-peak excursion before damage
• Large copper cap for inductance control and low distortion
• Durable fiberglass reinforced ribbed paper cone for rigidity and natural sound



Model Number PN470-8
Color Black
Unit of Measure Each
UPC 848791004940
Warranty - Parts 5 Years
Warranty - Labor 5 Years
Product Shipping Weight (lbs.) 23.6000
Speaker Type Woofer
Nominal Diameter 18"
Power Handling (RMS) 800 watts
Power Handling (max) 1,600 watts
Continuous Program Power --
Impedance 8 ohms
Sensitivity 97.1 dB @ 2.83V/1m
Frequency Response 30 - 3,000 Hz
Voice Coil Diameter 4"
Magnet Weight --
DC Resistance (Re) 5.6 ohms
Voice Coil Inductance (Le) 2.2 mH
Resonant Frequency (Fs) 31.6 Hz
Mechanical Q (Qms) 9.29
Electromagnetic Q (Qes) 0.35
Total Q (Qts) 0.34
Diaphragm Mass Inc. Airload (Mms) 211.6 g
Moving Mass Of Diaphragm (Mmd) --
Mechanical Compliance of Suspension (Cms) 0.12 mm/N
Surface Area Of Cone (Sd) 1217.0 cm²
Volume of Displacement (Vd) 790.9 cm³
BL Product (BL) 25.8 Tm
Compliance Equivalent Volume (Vas) 252.3 liters
Maximum Linear Excursion (Xmax) 6.5 mm
Driver's Mechanical Losses (Rms) 4.52 kg/s
Cone / Diaphragm Material Paper / Glass Fiber
Entry / Exit Diameter --
Surround Material Cloth
Voice Coil Wire Material Copper
Voice Coil Former Fiberglass
Basket/Frame Material Cast Aluminum
Magnet Material Neodymium
Overall Outside Diameter 18.3"
Overall Depth 8.1"
Baffle Cutout Diameter 16.7"
# Mounting Holes 8
Mounting Hole Diameter --
Bolt Circle Diameter 17.5"
Product Weight --



SKU 848791004940
Model # PN470-8
Barcode # 848791004940
Brand Dayton Audio
Shipping Weight 11.0000kg
Shipping Width 0.450m
Shipping Height 0.200m
Shipping Length 0.450m
