CS820CT 8" 2-Way 70V Ceiling Speaker Pair
1" mylar tweeter
$279.00
Availability:
8-14 days
8-14 days
Notify me when back in stock

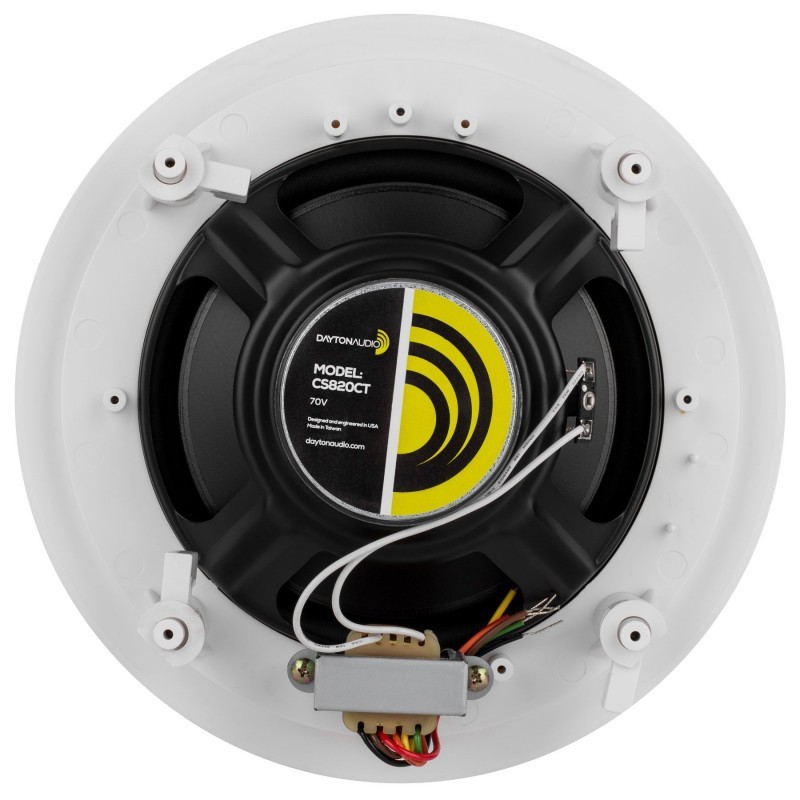

Don't let the low cost fool you! These great sounding ceiling speakers are ideal for adding music to offices, schools, restaurants, or industrial environments. A weather resistant 8" carbon fiber cone with a butyl rubber surround is mated to a coaxial mounted mylar tweeter for a lush, full sound. Mounted to the rear of the speaker is a 70V transformer than can be tapped at 0.5W, 1W, 2W, and 4W. Retrofit design allows installation in both new and existing construction in just minutes.
System includes: two speakers, removable steel mesh grills, built-in mounting brackets, hardware, and installation instructions.
*Note: Remove and discard the 1/8" perforated ring that connects the center "painting grill mask" and the outer "mounting template" before attempting to use the templates.
(844632066078)
• 1" mylar tweeter
• 8" carbon fiber woofer
• Popular "dog-ear" mounting system
• Stands up to harsh environments
• 70V taps can be set at 0.62W, 1.25W, 2.5W, 5W, and 10W
• 8" carbon fiber woofer
• Popular "dog-ear" mounting system
• Stands up to harsh environments
• 70V taps can be set at 0.62W, 1.25W, 2.5W, 5W, and 10W
| Speaker Series | Contractor Series |
|---|---|
| Model Number | CS820CT |
| Unit of Measure | Pair |
| UPC | 844632066078 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 8.5000 |
| Speaker Configuration | 2-Way |
| Input Rating | 70V |
| Power Handling (RMS) | 30 watts |
| Power Handling (max) | 60 watts |
| 70V Tap Settings | 0.62W, 1.25W, 2.5W, 5W, 10W, 8 ohm |
| Frequency Response | 50 - 20,000 Hz |
| Sensitivity | 89 dB 1W/1m |
| Woofer Type | Carbon Fiber |
| Woofer Diameter | 8" |
| Tweeter Type | Mylar Dome |
| Tweeter Size | 1" |
| Crossover | -- |
| Special Features | -- |
| Grill Type | Removable Steel Mesh |
| Replaceable Grill | -- |
| Magnet Material | -- |
| Magnet Weight | -- |
| Product Width | -- |
| Product Length | -- |
| Product Height | 10-3/4" dia. |
| Product Depth | 3-5/8" |
| Mounting Hole Size | 9-1/8" |
| Installation | Built-in Mounting Brackets |
| Box Includes | -- |
| SKU | 844632066078 |
| Model # | CS820CT |
| Barcode # | 844632066078 |
| Brand | Dayton Audio |
| Shipping Weight | 3.8560kg |
| Shipping Width | 0.279m |
| Shipping Height | 0.254m |
| Shipping Length | 0.292m |
| Shipping Cubic | 0.020730000m3 |
| Assembled Length | 0.292m |
| Assembled Height | 0.254m |
| Assembled Width | 0.279m |
