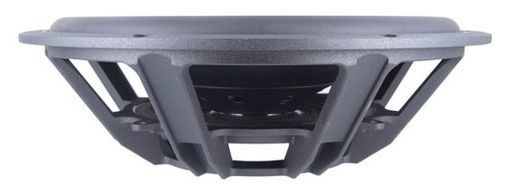

30W/0-00-00 - XXLS 12" PASSIVE RADIATOR

WAS PEERLESS 830548

$209.00
In Stock


Calculate Shipping


WAS PEERLESS 830548 Identical to the XLS/XXLS drivers, but without a magnet or voice coil. Available in two mass weightings, further weight can be added enabling excellent control over the final design. Eliminate air velocity noises and achieve a low tuning F without ridiculously long port dimensions. Best matched with 12” XLS driver for a box volume of 40 to 50L (17Hz) Supplied with 2 choices of ballast: Made in Denmark by Scan-Speak.

(36025)

Order Code 30W/0-00-00
Type Passive
Size 12"
Price Type each
Power Passive
Width 308mm
QTY 1
Impedance Passive
Depth 80mm
Re Passive
Qms 14
Vas 200L
Sd 466cm²
Cms 0.65mm/N
Fs 9.5Hz
Mms 435g
Zn Passive
Rms 1.84Kg/s
Xmax 28mm
Manufacturer Scan-speak
Prms Passive
Impedance (Ohm) Passive
Power (RMS) Passive
Inch 12



SKU 36025
Model # 30W/0-00-00
Brand Scan-speak
Shipping Weight 1.8600kg
Type Passive
