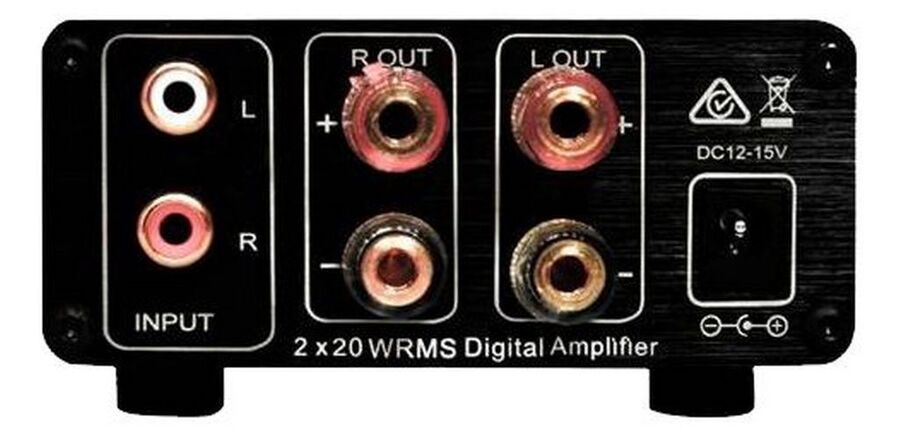

ADA40 Accento Dynamica 40W Amplifier

Compact 2x20W Stereo Amplifier Class-D

$99.00
In Stock


Calculate Shipping


COMPACT 2x20W STEREO AMPLIFIER CLASS-D

  • The compact size of the Accento Dynamica ADA40 makes it an ideal choice for small areas with limited space or for those looking for a cleaner audio environment. This amp is remarkably compact, yet still delivers crisp, vibrant sound comparable to much larger amplifiers. Centred on the TDA7492PE, this Class-D amplifier is highly efficient while delivering deep bass and an expanded sound stage to the listener., Includes 240Vac Power Pack.
    Includes SMP15V2A21R

    • Class D amp design maximizes fidelity and efficiency
    • Your music sounds its best in a convenient compact package
    • Simple operation with an on/off switch & volume control knob
    • All metal case black anodised extruded aluminium rubber feet
    • RCA Stereo line level gold-plated input
    • Bare-wire or 4mm speaker connection terminals
    • Includes 15 VDC, 2.0A power supply for optimum performance
    • Highly efficient operation with realistic audio sound stage
    • Small size lets you use this amp almost anywhere

(ADA40)

  • Class D amp design maximizes fidelity and efficiency
  • Your music sounds its best in a convenient compact package
  • Simple operation with an on/off switch & volume control knob
  • All metal case black anodised extruded aluminium rubber feet
  • RCA Stereo line level gold-plated input
  • Bare-wire or 4mm speaker connection terminals
  • Includes 15 VDC, 2.0A power supply for optimum performance
  • Highly efficient operation with realistic audio sound stage
  • Small size lets you use this amp almost anywhere

Power output: 2 x 20 watts
DC15V 4Ω 21W THD=10%
DC12V 4Ω 16W THD=10%
Impedance: 4Ω to 8Ω
SNR: 98db
Distortion: 0.03%
Frequency response: 20-22,000 Hz
Dynamic Range: 103dB
Signal Input: RCA gold-plated lotus signal input
Signal output: 4-wire signal output. Bare-wire or 4mm
Power Supply: DC12-15V 30Wnom, 40Wmax
DC Plug: O/D 5.5mm, Centre Pin 2.1mm (Positive)
Circuit plate: 1.6mm thick fibreglass Immersion Gold
Dimensions Case: 90mm(w) x 40mm(h) x 120mm(d)
Dimensions Plus: 150x92x47mm including protruding parts
Case Material: Extruded Aluminium body Anodized front panel.
Weight: 0.32kg

SKU ADA40
Model # ADA40
Brand Accento Dynamica
Shipping Weight 0.5750kg
