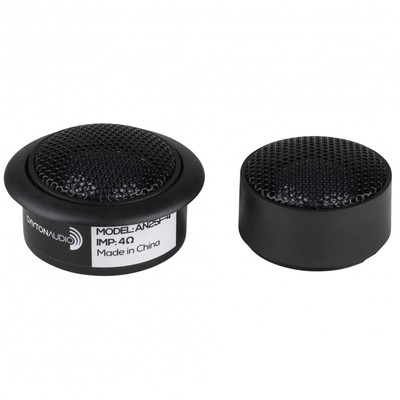

AN25F-4 1" Soft Dome Neodymium Car Audio Tweeter Pair 4 Ohm

Ultra-high sensitivity 96dB from 3 kHz to 20 kHz

$59.00
RRP $72.48
SAVE $13.48 (19%)
In Stock


Calculate Shipping

The Automotive Neodymium Series tweeter pairs by Dayton Audio offer remarkable clarity, good off-axis dispersion and an exceptionally flat response above 3 kHz. These tweeters where specifically designed for car audio systems however their modern appearan


These Dayton Audio AN25F-4 tweeter pairs are carefully optimized to provide superb audio reproduction. The silk diaphragms offer remarkable clarity, great off-axis dispersion and an exceptionally flat response above 3 kHz. Although these tweeters where specifically designed for car audio systems their modern appearance, high efficiency and flat response curve integrate easily into many non-automotive designs and are especially useful in MTM and TMM designs where high efficiency and/or minimal center-to-center spacing of the tweeter and woofer placement is needed. Sold in pairs.

Specifications: • Power handling: 30 watts RMS/60 watts max (with appropriate crossover) • VCdia: 1" *Impedance: 4 ohms • Re: 3.0 ohms • Frequency range: 3,000-20,000 Hz • Fs: 1619 Hz • SPL: 96 dB @2.83V/1m.



(848791004698)

• Ultra-high sensitivity 96dB from 3 kHz to 20 kHz
• Exceptionally flat treble response for accurate high frequency reproduction
• High-strength neodymium motor provides low distortion
• 1" silk diaphragm for remarkable clarity and great off-axis response
• 1" diameter voice coil for excellent power handling

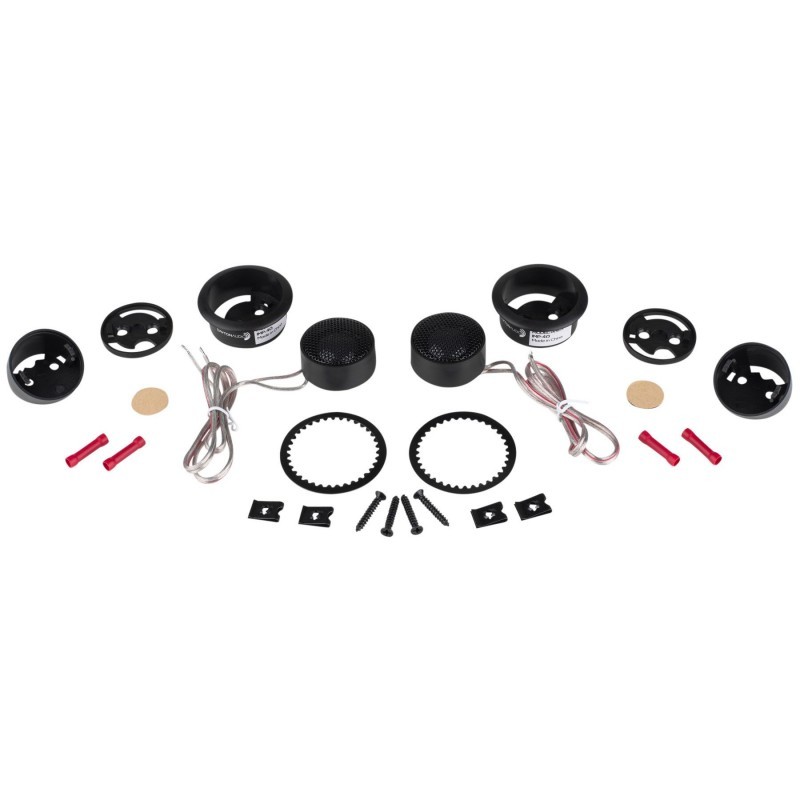

• All hardware included to permit flush or surface mounting



Model Number AN25F-4
Color Black
Unit of Measure Pair
UPC 848791004698
Warranty - Parts 5 Years
Warranty - Labor 5 Years
Product Shipping Weight (lbs.) 0.7500
Speaker Type Tweeter
Nominal Diameter 1"
Power Handling (RMS) 30 watts
Power Handling (max) --
Continuous Program Power --
Impedance 4 ohms
Sensitivity 96.5 dB 2.83V/1m
Frequency Response 3,000 - 20,000 Hz
Voice Coil Diameter 25.4 mm
Magnet Weight --
DC Resistance (Re) 3.04 ohms
Voice Coil Inductance (Le) 0.03 mH
Resonant Frequency (Fs) 1619 Hz
Mechanical Q (Qms) 3.77
Electromagnetic Q (Qes) 1.91
Total Q (Qts) 1.27
Diaphragm Mass Inc. Airload (Mms) --
Moving Mass Of Diaphragm (Mmd) --
Mechanical Compliance of Suspension (Cms) --
Surface Area Of Cone (Sd) --
Volume of Displacement (Vd) --
BL Product (BL) --
Compliance Equivalent Volume (Vas) --
Maximum Linear Excursion (Xmax) --
Driver's Mechanical Losses (Rms) --
Cone / Diaphragm Material Fabric
Entry / Exit Diameter --
Surround Material --
Voice Coil Wire Material Copper
Voice Coil Former Polyimide
Basket/Frame Material Plastic
Magnet Material Neodymium
Overall Outside Diameter 53 mm
Overall Depth 25.5 mm
Baffle Cutout Diameter 18 mm
Mounting Hole Diameter --
Bolt Circle Diameter --
Product Weight --



SKU 848791004698
Model # AN25F-4
Barcode # 848791004698
Shipping Weight 0.3000kg
