CE32A-8 1-1/4" Mini Speaker 8 Ohm

Elegant black-anodized aluminum diaphragm

$13.95
In Stock


Calculate Shipping

Great-looking and great-sounding, the CE32A-8 miniature speaker driver from Dayton Audio has the goods in a surprisingly small package. Its high-quality design has big-speaker features like an elegant black-anodized aluminum cone, rubber surround, and a n





Dayton Audio is pleased to introduce the new Commercial Engineering (CE) Series of small loudspeaker drivers. Engineers, designers, and integrators will benefit from how effortlessly these speaker components satisfy the diverse demands associated with consumer electronics and audio-enabled projects.



Multiple types and styles are available within the CE Series driver family. Each was produced to provide excellent audio quality no matter what the overall system design goals may be, and to suit a wide spectrum of engineering requirements. These versatile yet economical loudspeakers are available in sizes from 28 mm (1-1/8") to 90 mm (3-1/2") in diameter, and with power ratings from 1.5 watts to 5 watts continuous RMS power.

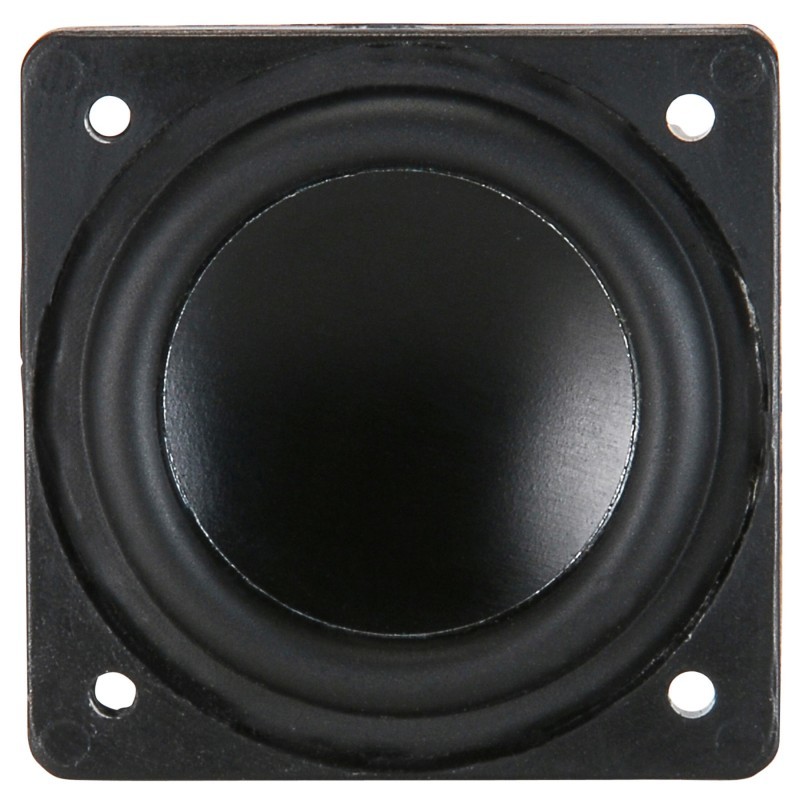

The CE32A-8 provides features you’d expect from a much larger driver, in a size that’s perfect for miniature applications that require wide dispersion and rich, natural sound. Its high-quality design features an elegant black-anodized concave aluminum diaphragm, rubber surround, textile spider, high-output neodymium motor, and a square injection-molded frame drilled for conventional mounting.








(848791000416)

• Elegant black-anodized aluminum diaphragm
• Rubber surround and textile spider for low distortion
• High-energy double neodymium magnet motor


Speaker Series CE Series
Model Number CE32A-8
Color Black
Unit of Measure Each
UPC 848791000416
Warranty - Parts 5 Years
Warranty - Labor 5 Years
Product Shipping Weight (lbs.) 0.0650
Speaker Type Mini Speaker
Power Handling (RMS) 2 watts
Power Handling (max) 4 watts
Continuous Program Power --
Impedance 8 ohms
Sensitivity --
Frequency Response 240 - 20,000 Hz
Voice Coil Diameter 12.5 mm
Magnet Weight --
DC Resistance (Re) 7.01 ohms
Voice Coil Inductance (Le) 0.29 mH
Resonant Frequency (Fs) 273.9 Hz
Mechanical Q (Qms) 2.84
Electromagnetic Q (Qes) 1.25
Total Q (Qts) 0.87
Diaphragm Mass Inc. Airload (Mms) 0.49 g
Moving Mass Of Diaphragm (Mmd) --
Mechanical Compliance of Suspension (Cms) 0.68 mm/N
Surface Area Of Cone (Sd) 3.917 cm²
Volume of Displacement (Vd) 0.002 cm³
BL Product (BL) 2.2 Tm
Compliance Equivalent Volume (Vas) .015 liters
Maximum Linear Excursion (Xmax) 0.7 mm
Driver's Mechanical Losses (Rms) --
Cone / Diaphragm Material Aluminum Cone
Entry / Exit Diameter --
Surround Material Rubber
Voice Coil Wire Material --
Voice Coil Former --
Basket/Frame Material --
Magnet Material Neodymium
Overall Outside Diameter 32 mm
Overall Depth 15.5 mm
Baffle Cutout Diameter 19 mm
# Mounting Holes 4
Mounting Hole Diameter --
Bolt Circle Diameter --
Product Weight --

SKU 848791000416
Model # CE32A-8
Barcode # 848791000416
Brand Dayton Audio
Shipping Weight 0.0230kg
Shipping Width 0.038m
Shipping Height 0.025m
Shipping Length 0.038m
Shipping Cubic 0.000037000m3
Assembled Length 0.038m
Assembled Height 0.025m
Assembled Width 0.038m
