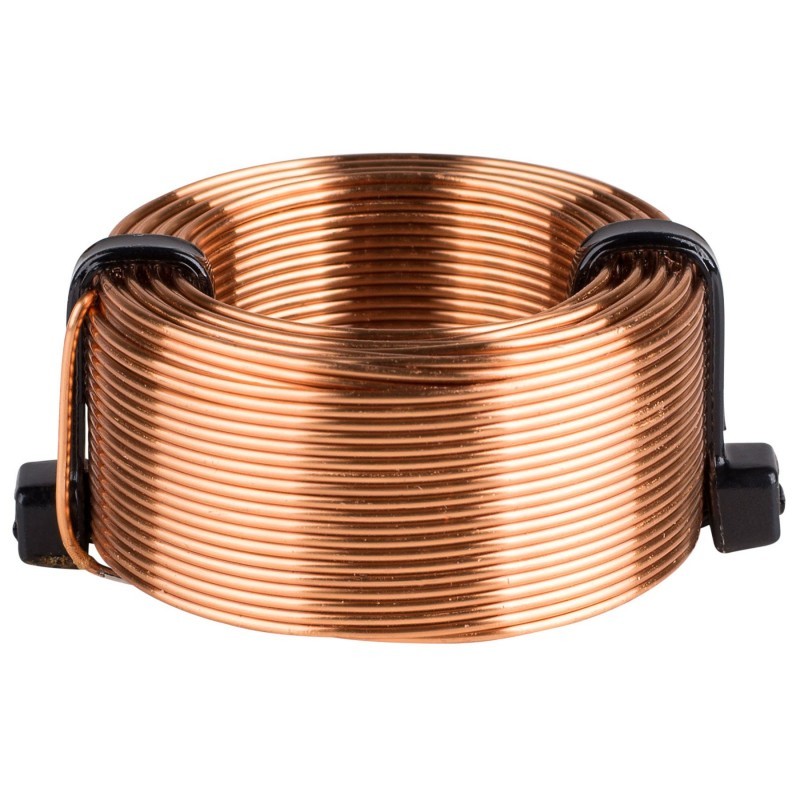

AC20-90 0.90mH 20 AWG Air Core Inductor Coil

Highly refined copper wire for low DCR

$14.95
In Stock


Calculate Shipping

Dayton Audio 20 gauge air core inductors are a great choice and the best value for building high quality crossovers. Features fully annealed refined copper wire, perfect layer windings and air core construction to ensure no hysteresis and saturation disto


Dayton Audio 20 gauge air core inductors are a great choice and the best value for building high quality crossovers. Features fully annealed refined copper wire, perfect layer windings and air core construction to ensure no hysteresis and saturation distortions.

Specifications: • Inductance: 0.90 mH • Wire gauge: 20 AWG • Core type: Air • DC resistance: 0.71 ohms • Tolerance: ±5% • Power handling: 200 watts RMS • Dimensions: 1.55" Ø x 0.71" H (39.5 x 18 mm.)

Copper quality/purity: The copper used in all Dayton Audio inductors, both wire and foil based, is a minimum of 99.9% pure, providing 100% conductivity. The oxygen component of the copper is between 0.02% and 0.04%.

Technical note: To prevent crosstalk and noise position inductors in crossovers at right angles to each other.

(848791003714)

• Highly refined copper wire for low DCR
• Perfect layer windings
• Air core construction
• 200 watts RMS
• ±5% Tolerance

Model Number AC20-90
Unit of Measure Each
UPC 848791003714
Warranty - Parts 5 Years
Warranty - Labor 5 Years
Product Height 18 mm
Product Width 39.5 mm Dia.
Product Length --
Product Depth --
Product Weight --
Product Shipping Weight (lbs.) 0.1900
SKU 848791003714
Model # AC20-90
Barcode # 848791003714
Brand Dayton Audio
Shipping Weight 0.0890kg
Shipping Width 0.051m
Shipping Height 0.025m
Shipping Length 0.051m
Shipping Cubic 0.000066000m3
