CE40-20F-8 1-1/2" x 3/4" Mini Speaker 8 Ohm
Lightweight treated fabric diaphragm
$6.50
RRP $8.22
SAVE $1.72 (21%)
In Stock
Notify me when back in stock
The Commercial Engineering (CE) series of speaker drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects.

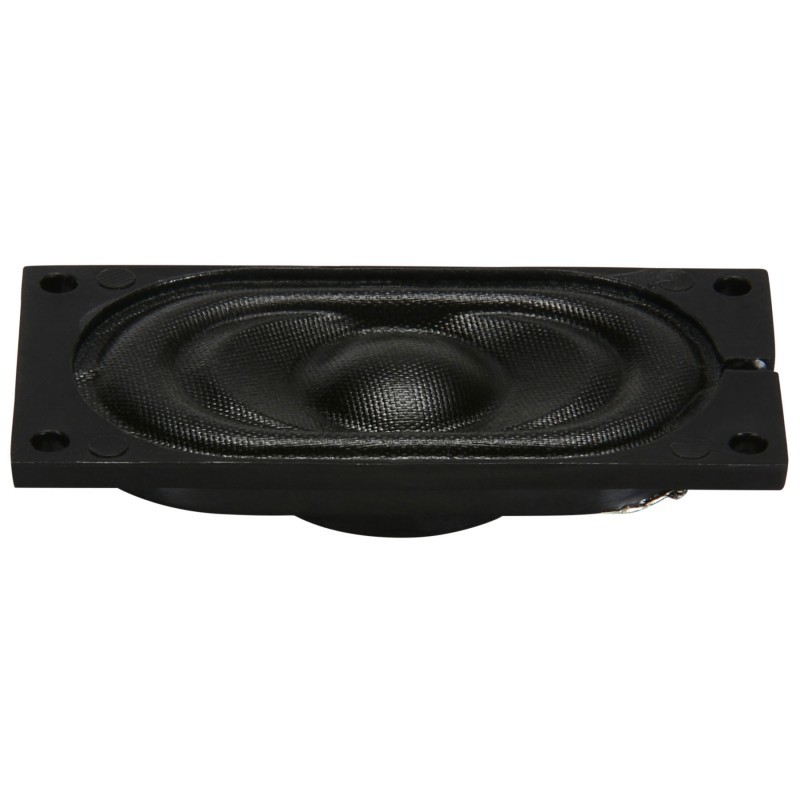

The Dayton Audio CE40-20F-8 is a compact rectangular mini-speaker featuring a racetrack-shaped, coated fabric diaphragm for extremely low resonance and excellent detail from a small driver. The highly damped diaphragm is an excellent choice for use as an extended-range mini speaker in laptops and flat-screen displays, or as a mini-tweeter to complement small woofers.
(848791001130)
• Lightweight treated fabric diaphragm
• Rugged plastic frame with 4 holes for easy mounting
• Powerful neodymium magnet
• Use as a tweeter or extended range driver
• Rugged plastic frame with 4 holes for easy mounting
• Powerful neodymium magnet
• Use as a tweeter or extended range driver
| Speaker Series | CE Series |
|---|---|
| Model Number | CE40-20F-8 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 848791001130 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 0.0100 |
| Speaker Type | Mini Speaker |
| Nominal Diameter | 1.5" x.75" |
| Power Handling (RMS) | 1 watt |
| Power Handling (max) | 2 watts |
| Continuous Program Power | -- |
| Impedance | 8 ohms |
| Sensitivity | 76 dB @ 1W/1m |
| Frequency Response | 500 - 20,000 Hz |
| Voice Coil Diameter | 12.5 mm |
| Magnet Weight | -- |
| DC Resistance (Re) | 6.76 ohms |
| Voice Coil Inductance (Le) | 0.36 mH |
| Resonant Frequency (Fs) | 695 Hz |
| Mechanical Q (Qms) | 1.67 |
| Electromagnetic Q (Qes) | 11.9 |
| Total Q (Qts) | 1.46 |
| Diaphragm Mass Inc. Airload (Mms) | 0.11 g |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | 0.47 mm/N |
| Surface Area Of Cone (Sd) | 3.5 cm² |
| Volume of Displacement (Vd) | 0.04 cm³ |
| BL Product (BL) | 0.53 Tm |
| Compliance Equivalent Volume (Vas) | 0.008 liters |
| Maximum Linear Excursion (Xmax) | 0.1 mm |
| Driver's Mechanical Losses (Rms) | -- |
| Cone / Diaphragm Material | Soft Dome |
| Entry / Exit Diameter | -- |
| Surround Material | Cloth |
| Voice Coil Wire Material | -- |
| Voice Coil Former | -- |
| Basket/Frame Material | -- |
| Magnet Material | -- |
| Overall Outside Diameter | 40 mm x 20 mm |
| Overall Depth | 6.1 mm |
| Baffle Cutout Diameter | 35.3 mm |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 848791001130 |
| Model # | CE40-20F-8 |
| Barcode # | 848791001130 |
| Brand | Dayton Audio |
| Shipping Weight | 0.0060kg |
| Shipping Width | 0.032m |
| Shipping Height | 0.013m |
| Shipping Length | 0.051m |
| Shipping Cubic | 0.000020000m3 |
| Assembled Length | 0.051m |
| Assembled Height | 0.013m |
| Assembled Width | 0.032m |
