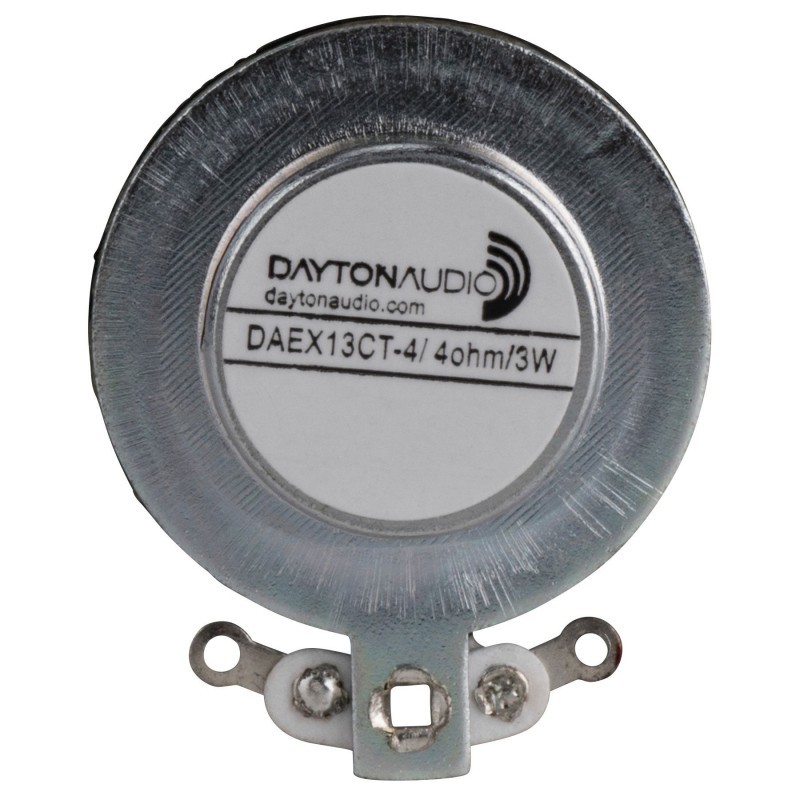

DAEX13CT-4 Coin Type 13mm Exciter 3W 4 Ohm

Super small size;just over an inch in diameter, about 3/

$8.95
In Stock


Calculate Shipping

Take your product or project to the next level by turning into a speaker! The DAEX13CT-4 sound exciter, by Dayton Audio, is designed to turn small surfaces into a hidden sound source.


Dayton Audio's 13 mm DAEX13CT-4 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows!

A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. Its 4-ohm nominal impedance facilitates the use of series and series-parallel wired arrays for a highly focused, minimum dispersion sound pattern.

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.

Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

Adhesive Dimensions: 15.7 mm (outside diameter)

(848791001000)

• Super small size;just over an inch in diameter, about 3/8" high
• Pre-applied 3M™ VHB™ adhesive for a quick, secure installation
• Rare-earth neodymium motor
• 4 ohms impedance for use with small, Class D amplifiers

Speaker Series Exciters
Model Number DAEX13CT-4
Color Silver
Unit of Measure Each
UPC 848791001000
Warranty - Parts 5 Years
Warranty - Labor 5 Years
Product Shipping Weight (lbs.) 0.0500
Speaker Type Exciter
Power Handling (RMS) 3 watts
Power Handling (max) --
Continuous Program Power --
Impedance 4 ohms
Sensitivity --
Frequency Response --
Voice Coil Diameter 13 mm
Magnet Weight --
DC Resistance (Re) 3.6 ohms
Voice Coil Inductance (Le) 0.04 mH @ 1 kHz
Resonant Frequency (Fs) 650 Hz
Mechanical Q (Qms) --
Electromagnetic Q (Qes) --
Total Q (Qts) 3.25
Diaphragm Mass Inc. Airload (Mms) 0.26 g
Moving Mass Of Diaphragm (Mmd) --
Mechanical Compliance of Suspension (Cms) 0.0002 mm/N
Surface Area Of Cone (Sd) --
Volume of Displacement (Vd) --
BL Product (BL) 1.12 Tm
Compliance Equivalent Volume (Vas) --
Maximum Linear Excursion (Xmax) --
Driver's Mechanical Losses (Rms) --
Entry / Exit Diameter --
Surround Material --
Voice Coil Wire Material --
Voice Coil Former --
Basket/Frame Material --
Magnet Material --
Overall Outside Diameter 26.3 mm
Overall Depth 9.5 mm
Baffle Cutout Diameter --
Mounting Hole Diameter --
Bolt Circle Diameter --
Product Weight --
SKU 848791001000
Model # DAEX13CT-4
Barcode # 848791001000
Brand Dayton Audio
Shipping Weight 0.0140kg
Shipping Width 0.051m
Shipping Height 0.013m
Shipping Length 0.051m
Shipping Cubic 0.000033000m3
Assembled Length 0.051m
Assembled Height 0.013m
Assembled Width 0.051m
