DAEX19SL-4 Slimline Coin Type 19mm Exciter 4W 4 Ohm

Only 1.3" diameter by 0.26" high, can be installed almos

$8.25
RRP $10.96
SAVE $2.71 (25%)
In Stock


Calculate Shipping

This tiny exciter packs one heck of a punch. Dayton Audio's DAEX19SL-4 4 ohm sound exciter can turn most light rigid surfaces into a speaker with a surprising amount of output. Perfect for adding audio to small toys, signs, and many other projects.


Dayton Audio's 19 mm DAEX19SL-4 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in an extremely compact package for working with smaller surfaces in the minimum amount of space. This exciter's small size and weight enables audio reproduction in places never imagined: toys, signs, cabinet doors, etc... even windows!

A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output.

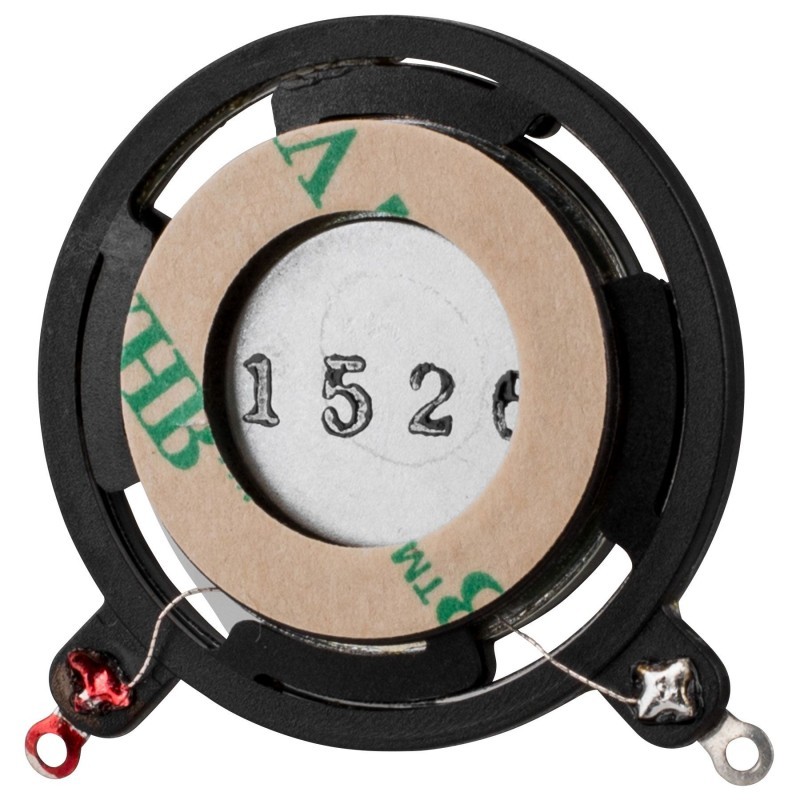

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.

Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

Specifications: • Power handling: 4 watts RMS • VCdia: 19 mm • Nominal impedance: 4 ohms • Re: 2.94 ohms • Le: 0.01 mH • Fs (uncoupled): 630 Hz • Dimensions: 1.3" (33 mm) dia. x 0.26" (6.6 mm) H • Adhesive dimensions: 0.9" (23 mm) outside diameter, 0.63" (16 mm) inside diameter • Weight: 13.5 grams.

(848791002007)

• Only 1.3" diameter by 0.26" high, can be installed almost anywhere
• Dual suspension for linear operation and lower distortion
• 4 ohms impedance for use with small, Class D amplifiers
• Pre-applied 3M™ VHB™ adhesive for quick, durable installation

Model Number DAEX19SL-4
Color Black
Unit of Measure Each
UPC 848791002007
Warranty - Parts 5 Years
Warranty - Labor 5 Years
Product Shipping Weight (lbs.) 0.0500
Speaker Type Exciter
Power Handling (RMS) 4 watts
Power Handling (max) --
Continuous Program Power --
Impedance 4 ohms
Sensitivity --
Frequency Response --
Voice Coil Diameter 19 mm
Magnet Weight --
DC Resistance (Re) 2.94 ohms
Voice Coil Inductance (Le) 0.01 mH
Resonant Frequency (Fs) 630 Hz
Mechanical Q (Qms) --
Electromagnetic Q (Qes) --
Total Q (Qts) --
Diaphragm Mass Inc. Airload (Mms) --
Moving Mass Of Diaphragm (Mmd) --
Mechanical Compliance of Suspension (Cms) --
Surface Area Of Cone (Sd) --
Volume of Displacement (Vd) --
BL Product (BL) --
Compliance Equivalent Volume (Vas) --
Maximum Linear Excursion (Xmax) --
Driver's Mechanical Losses (Rms) --
Entry / Exit Diameter --
Surround Material --
Voice Coil Wire Material --
Voice Coil Former --
Basket/Frame Material --
Magnet Material --
Overall Outside Diameter --
Overall Depth --
Baffle Cutout Diameter --
Mounting Hole Diameter --
Bolt Circle Diameter --
Product Weight --
SKU 848791002007
Model # DAEX19SL-4
Brand Dayton Audio
Shipping Weight 0.0230kg
Shipping Width 0.051m
Shipping Height 0.013m
Shipping Length 0.051m
Shipping Cubic 0.000033m3
