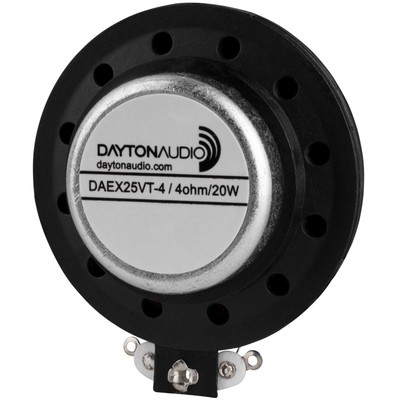

DAEX25VT-4 Vented 25mm Exciter 20W 4 Ohm

Small size;just over 2" diameter, about 7/8" high

$17.59
RRP $19.19
SAVE $1.60 (8%)
Availability:
8-14 days


Calculate Shipping

Take your product or project to the next level by turning into a speaker! The DAEX25VT-4 is designed by Dayton Audio with voice coil cooling air vents, for high-power applications.


Dayton Audio's 25 mm DAEX25CT-4 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows!

A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor.

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.

Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

Adhesive dimensions: 28 mm (outside diameter), 21.5 mm (inside diameter)

(848791000942)

• Small size;just over 2" diameter, about 7/8" high
• Pre-applied 3M™ VHB™ adhesive for quick, secure installation
• Rare-earth neodymium motor and a proprietary voice coil
• 4 ohms impedance for use with small, Class D amplifiers
• 20 watt RMS power handling for high output

Speaker Series Exciters
Model Number DAEX25VT-4
Color Black
Unit of Measure Each
UPC 848791000942
Warranty - Parts 5 Years
Warranty - Labor 5 Years
Product Shipping Weight (lbs.) 0.2000
Speaker Type Exciter
Power Handling (RMS) 20 watts
Power Handling (max) --
Continuous Program Power --
Impedance 4 ohms
Sensitivity --
Frequency Response --
Voice Coil Diameter 25 mm
Magnet Weight --
DC Resistance (Re) 4.2 ohms
Voice Coil Inductance (Le) 0.24 mH @ 1 kHz
Resonant Frequency (Fs) 230 Hz
Mechanical Q (Qms) --
Electromagnetic Q (Qes) --
Total Q (Qts) 0.83
Diaphragm Mass Inc. Airload (Mms) 1.75 g
Moving Mass Of Diaphragm (Mmd) --
Mechanical Compliance of Suspension (Cms) 0.0003 mm/N
Surface Area Of Cone (Sd) --
Volume of Displacement (Vd) --
BL Product (BL) 3.86 Tm
Compliance Equivalent Volume (Vas) --
Maximum Linear Excursion (Xmax) --
Driver's Mechanical Losses (Rms) --
Entry / Exit Diameter --
Surround Material --
Voice Coil Wire Material --
Voice Coil Former --
Basket/Frame Material --
Magnet Material --
Overall Outside Diameter 51.4 mm dia.
Overall Depth 20.5 mm
Baffle Cutout Diameter --
Mounting Hole Diameter --
Bolt Circle Diameter --
Product Weight --
SKU 848791000942
Model # DAEX25VT-4
Brand Dayton Audio
Shipping Weight 0.0908kg
Shipping Width 0.102m
Shipping Height 0.051m
Shipping Length 0.102m
Shipping Cubic 0.000524m3
Assembled Length 0.102m
Assembled Height 0.051m
Assembled Width 0.102m
