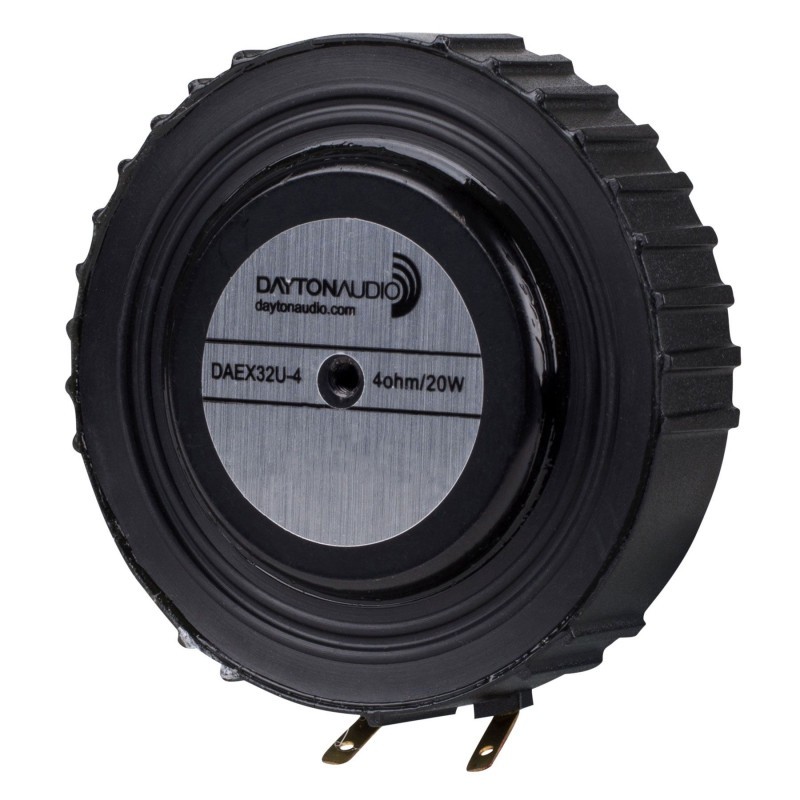

DAEX32U-4 Ultra 32mm 20W 4 Ohm

Heavy-duty design with a 32 mm voice coil for a high 20

$29.80
RRP $31.53
SAVE $1.73 (5%)
Availability:
8-14 days


Calculate Shipping

Turn large, rigid surfaces into speakers with the Dayton Audio DAEX32U-4. Includes pre-attached 3M VHB adhesive for maximum energy transfer, even on moving objects!


Dayton Audio's DAEX32U-4 Ultra exciter is built to turn large, thick, rigid surfaces into speakers. The 32 mm voice coil makes it perfect for large glass panes, furniture, and surfaces that would normally resist the effects of an exciter.

A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small Class D audio amplifiers, without sacrificing total output.

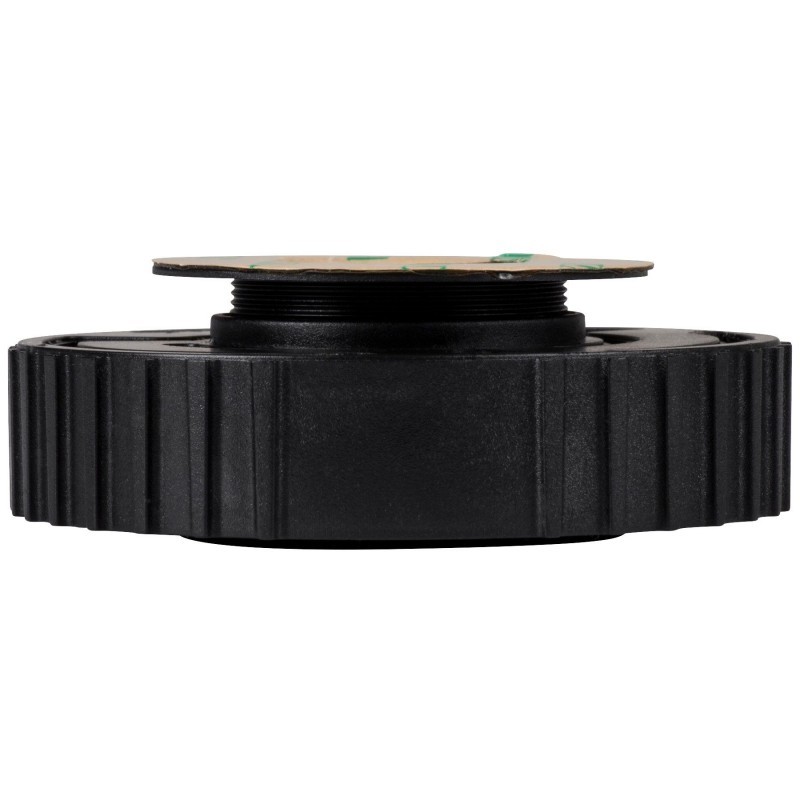

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body... just peel and stick! Two male spade quick-disconnect terminals are built onto the main body for quick electrical connection.

Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

Dimensions: 2.625" (66 mm) overall diameter x 0.75" (19 mm) total height • Adhesive dimensions: 1.64" (41.7 mm) outside diameter, 0.86" (21.7 mm) inside diameter

(848791001925)

• Heavy-duty design with a 32 mm voice coil for a high 20 watt RMS power handling
• Pre-applied 3M™ VHB™ adhesive for quick, secure installation
• Rare-earth neodymium motor and a proprietary two-layer voice coil
• 4 ohms impedance for use with small, Class D amplifiers

Speaker Series Exciters
Model Number DAEX32U-4
Color Black
Unit of Measure Each
UPC 848791001925
Warranty - Parts 5 Years
Warranty - Labor 5 Years
Product Shipping Weight (lbs.) 0.3500
Power Handling (RMS) 20 watts
Power Handling (max) 40 watts
Continuous Program Power --
Impedance 4 ohms
Sensitivity --
Frequency Response --
Voice Coil Diameter 32 mm
Magnet Weight --
DC Resistance (Re) 3.5 ohms
Voice Coil Inductance (Le) 0.23 mH @ 1 kHz
Resonant Frequency (Fs) 160 Hz
Mechanical Q (Qms) --
Electromagnetic Q (Qes) --
Total Q (Qts) --
Diaphragm Mass Inc. Airload (Mms) --
Moving Mass Of Diaphragm (Mmd) --
Mechanical Compliance of Suspension (Cms) --
Surface Area Of Cone (Sd) --
Volume of Displacement (Vd) --
BL Product (BL) --
Compliance Equivalent Volume (Vas) --
Maximum Linear Excursion (Xmax) --
Driver's Mechanical Losses (Rms) --
Entry / Exit Diameter --
Surround Material --
Voice Coil Wire Material --
Voice Coil Former --
Basket/Frame Material --
Magnet Material --
Overall Outside Diameter --
Overall Depth --
Baffle Cutout Diameter --
Mounting Hole Diameter --
Bolt Circle Diameter --
Product Weight --
SKU 848791001925
Model # DAEX32U-4
Brand Dayton Audio
Shipping Weight 0.1589kg
Shipping Width 0.102m
Shipping Height 0.051m
Shipping Length 0.127m
Shipping Cubic 0.000655m3
