XO3W-375/3K 3-Way Crossover 375/3,000 Hz

Designed with a 3 octave spread between crossover points

$83.04
RRP $96.00
SAVE $12.96 (14%)
Availability:
8-14 days


Calculate Shipping

These 3-way, 2nd-order (12 dB/octave) crossovers were designed with a 3 octave spread between crossover points. Dayton Audio metallized polyester film capacitors are used in critical midrange and tweeter signal paths. 18 gauge tweeter and midrange inducto

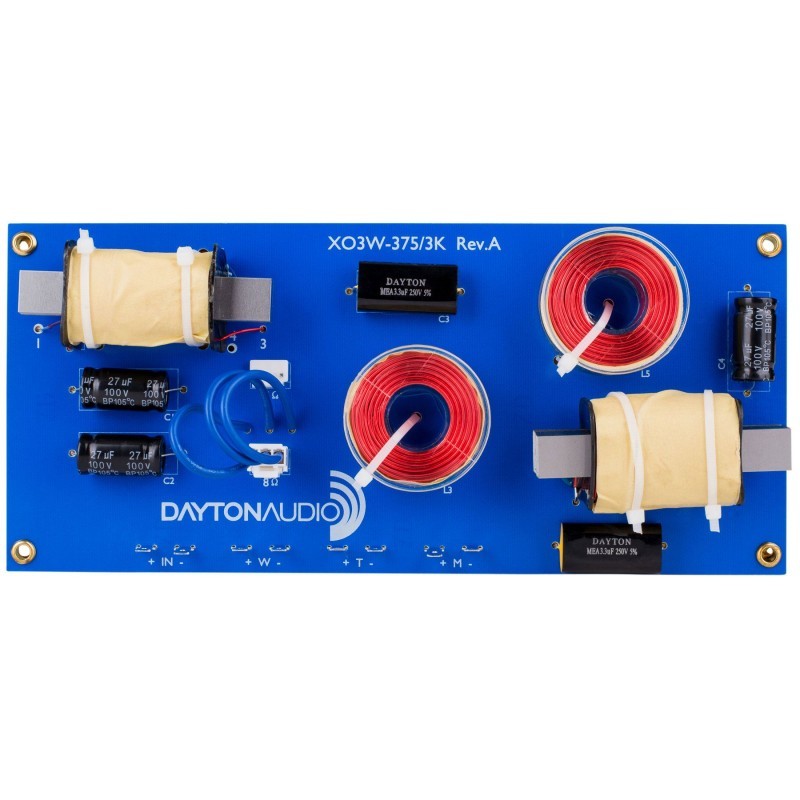

These 3-way, 2nd-order (12 dB/octave) crossovers were designed with a 3 octave spread between crossover points. Dayton Audio metallized polyester film capacitors are used in the critical midrange and tweeter signal paths. 18 gauge tweeter and midrange inductors, and 20 gauge woofer inductors are used to keep DC resistance to a minimum. A unique design feature of the low-pass section allows for the use of 4 or 8 ohm woofers, perfect for building a multi woofer system. The midrange and high-pass sections are rated for an 8 ohm load. All components are glued or fastened down to eliminate buzzing and vibrations. The high quality blue PC board uses a back plate for added rigidity and eyelet holes for easy mounting. Available in a variety of crossover points. 300W power handling. Board measures: 11-3/8" W x 4-3/8" H x 2" D. Terminals are 0.205".

(844632045202)

• Designed with a 3 octave spread between crossover points
• Metallized polyester film capacitors are used in the critical midrange and tweeter signal paths
• Low pass section allows use of 4 or 8 ohm woofers
Model Number XO3W-375/3K
Unit of Measure Each
UPC 844632045202
Warranty - Parts 5 Years
Warranty - Labor 5 Years
Product Height 4-3/8"
Product Width 11-3/8"
Product Length --
Product Depth 2"
Product Weight --
Product Shipping Weight (lbs.) 2.4000
SKU 844632045202
Model # XO3W-375/3K
Brand Dayton Audio
Shipping Weight 1.0896kg
Shipping Width 0.121m
Shipping Height 0.051m
Shipping Length 0.416m
Shipping Cubic 0.002548m3
Assembled Length 0.416m
Assembled Height 0.051m
Assembled Width 0.121m
