810921 - PEERLESS 1" DOME TWEETER - PREMIUM HDS

PREMIUM EXCLUSIVE AS USED IN OUR HDS KIT SPEAKERS

$159.00
In Stock


Calculate Shipping


PREMIUM EXCLUSIVE AS USED IN OUR HDS KIT SPEAKERS The new Peerless HDS tweeter builds on Peerless’ long history of tweeter design by optimising several key design elements for pure, clean music reproduction. The HDS tweeter uses a very light, low mass “soft dome” with high internal damping, and a highly optimised, low-compression magnet system, which was designed especially for the low mass dome. The result is a driver that has both good sensitivity and an impressive range into the lower frequencies. The low mass dome, coupled with a fully vented motor system provides non-compressed sound reproduction over the entire frequency response. This combination allows the HDS tweeter to be used in systems with lower cross-over points than is recommended for most normal tweeters, making this product a powerful tool for any acoustic designer in the process of tuning a system. The HDS tweeter is ideal for use in applications including home entertainment, studio monitors, and general hi-fi systems.

(7139)

Order Code810921
TypeTweeter
Size1"
Price Typeeach
Power80Wrms
Coil26mmØ

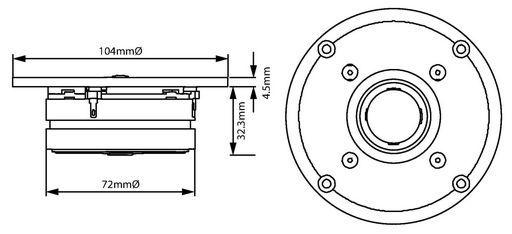

Width104mmØ
QTY1
Impedance8O (Re 5.6O)
Depth32.3mm
Sens.91.3dB
Re5.6O
Qms0.51
Qes0.65
Qts0.29
Vas0.02L
Zo10.82O
Sd7cm²
Cms0.29mm/N
Fs700Hz
Mms0.18g
Zn8O
Le0.04mH
Rms1.54kg/s
Price Type 1x1
ManufacturerPeerless
Prms80W
Impedance (Ohm)8 ohm
Power (RMS)51-100 Watt
Inch1

SKU 7139
Model # 810921
Brand Peerless
Shipping Weight 0.6800kg
Type Tweeter
