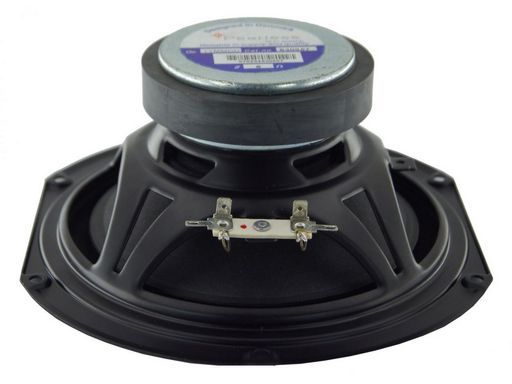

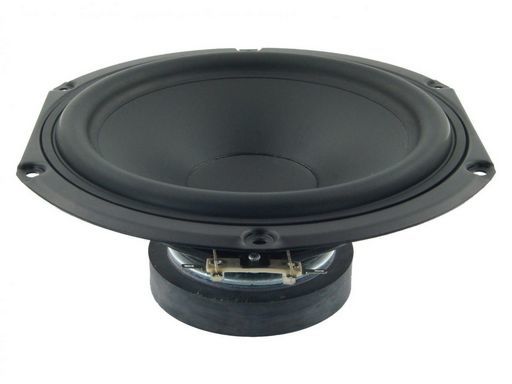

STEEL BASKET - COATED PAPER The SDS compact subwoofer family offers low resonant frequency performance, ideally suited for compact sealed enclosures. This 6.5 inch 8 ohm member of the SDS family offer a coated paper cone with rubber surround, a high power voice coil suspended in a ferrite magnet motor, and a narrow-profile steel basket, shaped to fit into narrow cabinets. The Peerless Superior Dynamic Sounds (SDS) Series provides the lowest cost/highest-quality woofers in the industry today. The SDS woofers are characterized by their very smooth frequency response all the way into the midrange, with low distortion and consistent off-axis performance. Applying the best in Danish engineering, but manufactured to be very affordable, these audio transducers are ideal for use in small surround sound systems and other hi-fi applications. Transducer Size 6 in –

DC Resistance 6.05 Ω ±5.0%

Resonant Frequency 44.75 Hz 15%

Half Space Sensitivity @ 2.83V 89.46 dB ±1.01

Sensitivity @ 1W/1m 88.5 dB ±1.01

Rated Noise Power (IEC 268-5 18.1) 60 W –

Test Spectrum Bandwidth 40Hz - 4kHz 12 dB/Oct –

Effective Piston Area 141 cm2 –

Moving Mass 11.5 g –

Motor Force Factor 5.98 T•m –

Voice Coil Inner Diameter 25.73 mm –

Gap Height 6 mm –

Maximum Linear Excursion 3.5 mm –

Ferrofluid Type –

Minimum Impedance 6.44 Ω ±7.5%

Voice Coil Inductance 0.38 mH –

Mechanical Q Factor 2.74 –

Electrical Q Factor 0.55 –

Total Q Factor 0.46 –

Ratio 98.35 fs/Qts –

Energy Bandwidth Product ((1/Qes)•fs) –

Suspension Compliance 1101.4 μm/N –

Effective Cone Diameter 13.4 cm –

Motor Efficiency Factor 5.9 (T•m2)/Ω –

Voice Coil Former Material ASV –

Transducer Mass 0.84 Kg –

Equivalent Volume 30.77 L –
