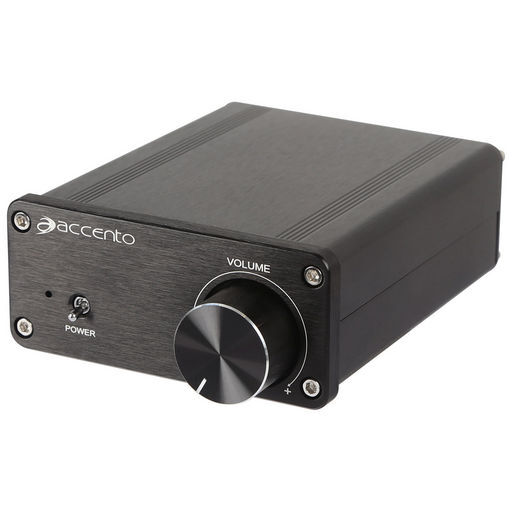

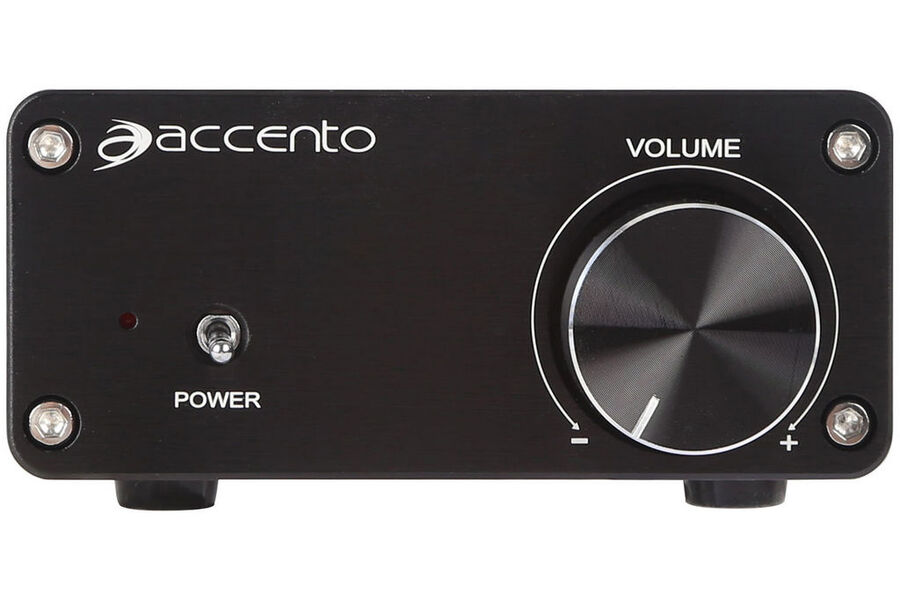

Accento Dynamica ADA120 120 Watt Amplifier

Compact 2x60w Stereo

$179.00
In Stock


Calculate Shipping

A Compact Stereo Class-D Amplifier That Works Great In Small Spaces


The small and powerful Accento Dynamica ADA-120 Class D amplifier installs virtually anywhere. It produces big-amp sound while occupying minimal space on your desk or A/V cabinet. The compact size makes it an ideal choice for small areas with limited space or for those looking for a cleaner audio environment, yet still delivers crisp, vibrant sound comparable to bulky power amplifiers. This unit features the STA508 chipset that provides 60 watts of continuous power per channel (120 Watts total) into a 4 ohm load and 40 watts into an 8 ohm load.

Includes switch mode 24 volt, 6 amp power supply to suit.

STA508 chipset Class-D offers Audiophile-quality sound reproduction
Compact fits almost anywhere for modern style & minimal decor impact
Ultra-quiet 103 dB signal to noise ratio (A-weighted)
40Wrms into an 8 ohm load, 60Wrms continuous into a 4 ohm load
Front-mounted gold-plated 3.5mm input and rear gold-plated RCA inputs
Quad mini gold-plated binding posts accept bare wire or banana plugs
6.35mm Headphone gold-plated output socket
Compact extruded aluminium heat sink enclosure
Thick, stylish black-anodized aluminium face plate
Simple controls: Volume pot with Off position
Short circuit, thermal, and overload protection

Power Output: 60 watts RMS x 2 into 4 ohm, 40 watts RMS x 2 into 8 ohm
Total Harmonic Distortion: <0.01% @ 30W per channel, <10% @ 60W per channel (4 Ohm)
Speaker Impedance: 4 ohm to 8 ohm
Signal-to-Noise Ratio: 103 dB, A weighted
Input Impedance: 10k ohms (minimum)
Input Sensitivity: 680 mV
Frequency Response: 20-20,000 Hz
Channel Separation: 95 dB
Efficiency: >85%
Dynamic Range: >100 dB
Electrical Requirement: 24VDC @ 5A center pin positive
Dimensions: 50mm(H) x 86mm(W) x 160mm(D)
Weight: 540g

(23395)

STA508 chipset Class-D offers Audiophile-quality sound reproduction
Compact fits almost anywhere for modern style & minimal decor impact
Ultra-quiet 103 dB signal to noise ratio (A-weighted)
40Wrms into an 8 ohm load, 60Wrms continuous into a 4 ohm load
Front-mounted gold-plated 3.5mm input and rear gold-plated RCA inputs
Quad mini gold-plated binding posts accept bare wire or banana plugs
6.35mm Headphone gold-plated output socket
Compact extruded aluminium heat sink enclosure
Thick, stylish black-anodized aluminium face plate
Simple controls: Volume pot with Off position
Short circuit, thermal, and overload protection

Power Output: 60 watts RMS x 2 into 4 ohm, 40 watts RMS x 2 into 8 ohm
Total Harmonic Distortion: <0.01% @ 30W per channel, <10% @ 60W per channel (4 Ohm)
Speaker Impedance: 4 ohm to 8 ohm
Signal-to-Noise Ratio: 103 dB, A weighted
Input Impedance: 10k ohms (minimum)
Input Sensitivity: 680 mV
Frequency Response: 20-20,000 Hz
Channel Separation: 95 dB
Efficiency: >85%
Dynamic Range: >100 dB
Electrical Requirement: 24VDC @ 5A center pin positive
Dimensions: 50mm(H) x 86mm(W) x 160mm(D)
Weight: 540g

SKU 23395
Model # ADA120
Brand Accento Dynamica
Shipping Weight 0.6160kg
Shipping Width 0.210m
Shipping Height 0.090m
Shipping Length 0.130m
Shipping Cubic 0.002457000m3
Unit Of Measure ea
