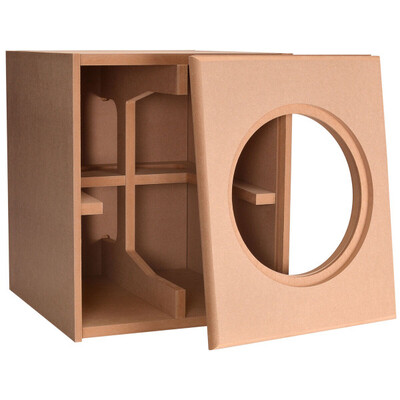

CAB12-22 DIY SUBWOOFER CABINET FOR DAYTON AUDIO 12" ULTIMAX

Pre-cut groves and recesses to make assembly fast

$395.00
In Stock


Calculate Shipping


Kit includes all the CNC machined MDF panels for you to assemble a sub-woofer cabinet. Bare MDF and no terminal plate or feet supplied so you can create your own custom design.

This speaker cabinet is designed specifically for the Dayton Audio 12" Ultimax subwoofer (UM12-22), but works for any subwoofer with an overall diameter of 314mm or less, and a cutout requirement of 283mm or less. Rabbets and dadoes are pre-cut for precise panel alignment. A two-piece brace adds superior cabinet rigidity without affecting the subwoofer's performance. Both side panels feature 19.1mm rabbeted extensions with recesses to perfectly install the first piece of the two-part, double thick baffle. The end result is a resonance-free, sealed subwoofer cabinet that is purpose-built to extract the best performance from Dayton Audio's 12" Ultimax subwoofer.

Dayton Audio Knock-Down MDF 2.0 cu. ft. Subwoofer Cabinet for Dayton Audio 12" Ultimax Subwoofer
Even the easiest do-it-yourself subwoofer can turn into an arduous project; from uneven cuts, to measuring mistakes. CNC knock-down cabinets make it easy for the beginner to end up with amazing finished results without all of the time and effort necessary to perfect your woodworking skills. This cabinet is designed for speaker builders and designers who don't have access to expensive tools or a woodshop.
This particular cabinet is designed specifically for the Dayton Audio 12" Ultimax subwoofer, but works for any subwoofer with an overall diameter of 12-3/8" or less, and a cutout requirement of 11-1/8" or less. For optimum performance with the Ultimax 12" subwoofer, add one pound of Acousta-Stuf polyfill for a Qtc of 0.707 and an f3 of 36 Hz.
During the CNC manufacturing process, rabbets and dadoes are cut into the back panel for precise panel alignment. A unique two-piece brace adds superior rigidity without affecting the subwoofer's performance. Both side panels feature 3/4" rabbeted extensions with recesses to perfectly install the first piece of the two-part, double thick baffle.
The end result is a resonance-free, sealed subwoofer cabinet that is purpose-built to extract the best performance from Dayton Audio's 12" Ultimax subwoofer. All that's left to do is finish it to match your décor or paint it to stand out. When your friends ask about it, you get the pleasure of saying, "I built it myself!"

  • Save time with all the woodwork done for you
  • Kit of panels pre-cut for easy DIY assembly
  • Includes all 19mm MDF panels and braces
  • Double thick 38mm front baffle with beveled edge
  • CNC-machined dadoes to assist joinery
  • 283mmØ cutout and 314mmØ recess hole
  • Sealled cabinet 2cu (57 Litres) infinite baffle
  • Bracing system that increases cabinet rigidity
  • MDF Supplied bare for your choice of finishing
  • Requires rear connection panel and feet


MDF Panels only. Requires speaker, terminals, wiring, feet, glue, etc.

(CAB12-22)

SKU CAB12-22
Model # CAB12-22
Shipping Weight 20.0000kg
Shipping Width 0.560m
Shipping Height 0.190m
Shipping Length 0.490m
Shipping Cubic 0.052136000m3
