DSA135-8 5" Designer Series Aluminum Cone Woofer 8 Ohm

Cosmetic frame with low profile lip, designed for front

$59.00
RRP $61.32
SAVE $2.32 (4%)
In Stock


Calculate Shipping

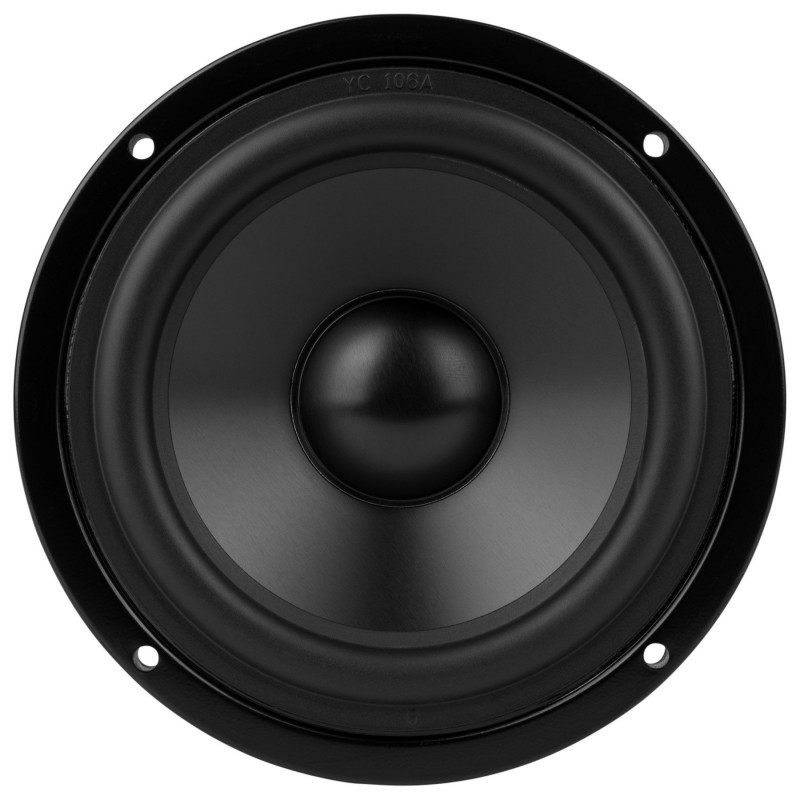

The Designer Series DSA135-8 from Dayton Audio brings great audio fidelity and superior cosmetics to the 5" woofer category.


The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.

These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

OPTIMUM CABINET SIZE *
Sealed Volume 0.09 ft.³
Sealed F3 115 Hz
Vented Volume 0.18 ft.³
Vented F3 66 Hz
* Enclosure volume/F3s based on BassBox "optimum" calculations

(848791002403)

• Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
• Low distortion motor system with copper shorting ring
• Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
• Optimized to yield the smallest possible box volume and lowest 3 dB down point
• Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
• Vented pole piece for minimized power compression and maximized reliability
• Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators

Speaker Series Designer Series
Model Number DSA135-8
Color Black
Unit of Measure Each
UPC 848791002403
Warranty - Parts 5 Years
Warranty - Labor 5 Years
Product Shipping Weight (lbs.) 3.0000
Speaker Type Woofer
Nominal Diameter 5"
Power Handling (RMS) 50 watts
Power Handling (max) 100 watts
Continuous Program Power --
Impedance 8 ohms
Sensitivity 87 dB @ 2.83V/1m
Frequency Response 51 - 9,000 Hz
Voice Coil Diameter 25.4 mm
Magnet Weight 21 oz.
DC Resistance (Re) 5.9 ohms
Voice Coil Inductance (Le) 0.78 mH @ 1 kHz
Resonant Frequency (Fs) 51.81 Hz
Mechanical Q (Qms) 2.04
Electromagnetic Q (Qes) 0.47
Total Q (Qts) 0.38
Diaphragm Mass Inc. Airload (Mms) 9.5g
Moving Mass Of Diaphragm (Mmd) --
Mechanical Compliance of Suspension (Cms) 0.99 mm/N
Surface Area Of Cone (Sd) 75.4 cm²
Volume of Displacement (Vd) 36.6 cm³
BL Product (BL) 6.22 Tm
Compliance Equivalent Volume (Vas) 7.93 liters
Maximum Linear Excursion (Xmax) 4.9 mm
Driver's Mechanical Losses (Rms) --
Cone / Diaphragm Material Aluminum Cone
Entry / Exit Diameter --
Surround Material Rubber
Voice Coil Wire Material Copper
Voice Coil Former Aluminum
Basket/Frame Material Steel
Magnet Material Ferrite
Overall Outside Diameter 135 mm
Overall Depth 68.6 mm
Baffle Cutout Diameter 111.5 mm
# Mounting Holes 4
Mounting Hole Diameter --
Bolt Circle Diameter --
Product Weight --
SKU 848791002403
Model # DSA135-8
Barcode # 848791002403
Brand Dayton Audio
Shipping Weight 1.4230kg
Shipping Width 0.152m
Shipping Height 0.102m
Shipping Length 0.152m
Shipping Cubic 0.002360000m3
