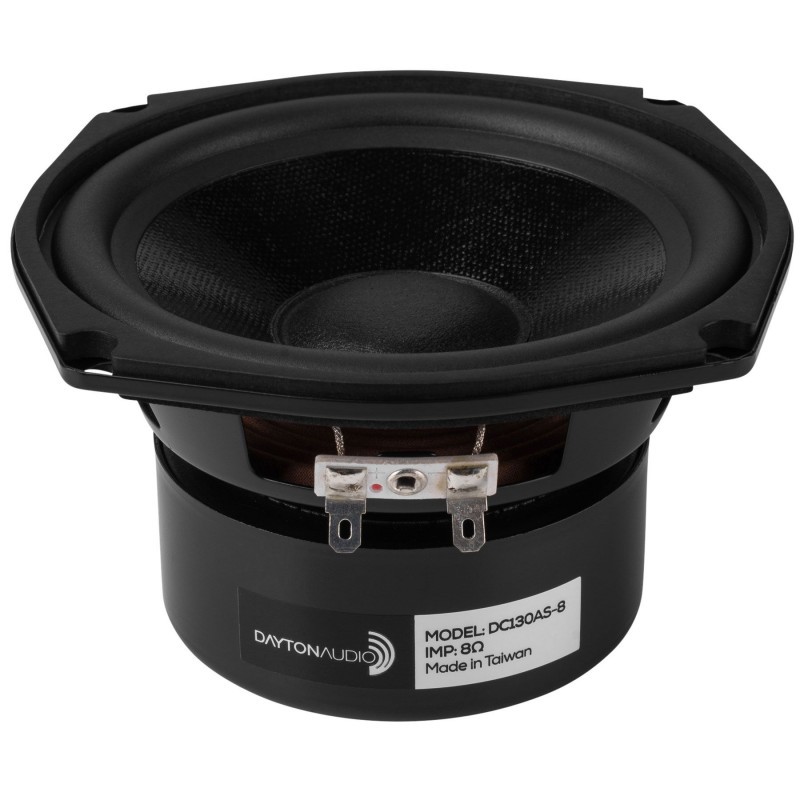

DC130AS-8 5-1/4" Classic Shielded Woofer 8 Ohm
Use as a woofer, midbass, or a small subwoofer
$55.00
In Stock
Notify me when back in stock
Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC130AS-8 shielded 5-1/4" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. You can even be use the DC130AS-8 as a small subwoofer! The excellent low frequency performance will amaze you.
A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil increases power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.
OPTIMUM CABINET SIZE *
Sealed Volume 0.19 ft.³
Sealed F3 95 Hz
Vented Volume 0.6 ft.³
Vented F3 47 Hz
- Enclosure volume/F3s based on BassBox "optimum" calculations
(844632000218)
• Use as a woofer, midbass, or a small subwoofer
• Smooth frequency response up to 2 kHz
• Aluminum voice coil and extended bump plate
• Shielded design increases performance
• 4 ohm impedance for series pair use in MTMs and center channel speakers
• Smooth frequency response up to 2 kHz
• Aluminum voice coil and extended bump plate
• Shielded design increases performance
• 4 ohm impedance for series pair use in MTMs and center channel speakers
| Speaker Series | Classic Series |
|---|---|
| Model Number | DC130AS-8 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 844632000218 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 2.5000 |
| Speaker Type | Woofer |
| Nominal Diameter | 5.25" |
| Power Handling (RMS) | 30 watts |
| Power Handling (max) | 60 watts |
| Continuous Program Power | -- |
| Impedance | 8 ohms |
| Sensitivity | 88.5 dB @ 2.83V/1m |
| Frequency Response | 55 - 4,000 Hz |
| Voice Coil Diameter | 25 mm |
| Magnet Weight | 10 oz. |
| DC Resistance (Re) | 5.6 ohms |
| Voice Coil Inductance (Le) | 0.84 mH @ 1 kHz |
| Resonant Frequency (Fs) | 57.2 Hz |
| Mechanical Q (Qms) | 2.01 |
| Electromagnetic Q (Qes) | 0.58 |
| Total Q (Qts) | 0.45 |
| Diaphragm Mass Inc. Airload (Mms) | 9.7g |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | 0.8 mm/N |
| Surface Area Of Cone (Sd) | 91.6 cm² |
| Volume of Displacement (Vd) | 22.9 cm³ |
| BL Product (BL) | 5.83 Tm |
| Compliance Equivalent Volume (Vas) | 9.73 liters |
| Maximum Linear Excursion (Xmax) | 2.5 mm |
| Driver's Mechanical Losses (Rms) | -- |
| Cone / Diaphragm Material | Treated Paper |
| Entry / Exit Diameter | -- |
| Surround Material | Rubber |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Aluminum |
| Basket/Frame Material | Steel |
| Magnet Material | Ferrite |
| Shielded | Yes |
| Overall Outside Diameter | 134 mm |
| Overall Depth | 78.4 mm |
| Baffle Cutout Diameter | 120 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 844632000218 |
| Model # | DC130AS-8 |
| Barcode # | 844632000218 |
| Brand | Dayton Audio |
| Shipping Weight | 1.1400kg |
| Shipping Width | 0.140m |
| Shipping Height | 0.089m |
| Shipping Length | 0.140m |
| Shipping Cubic | 0.001735000m3 |
| Assembled Length | 0.140m |
| Assembled Height | 0.089m |
| Assembled Width | 0.140m |
