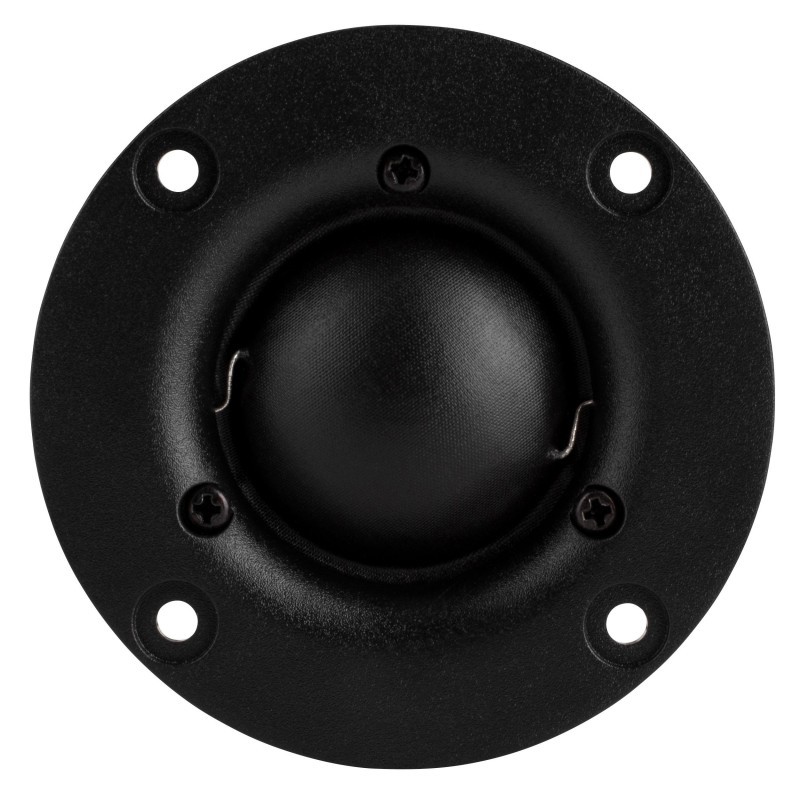

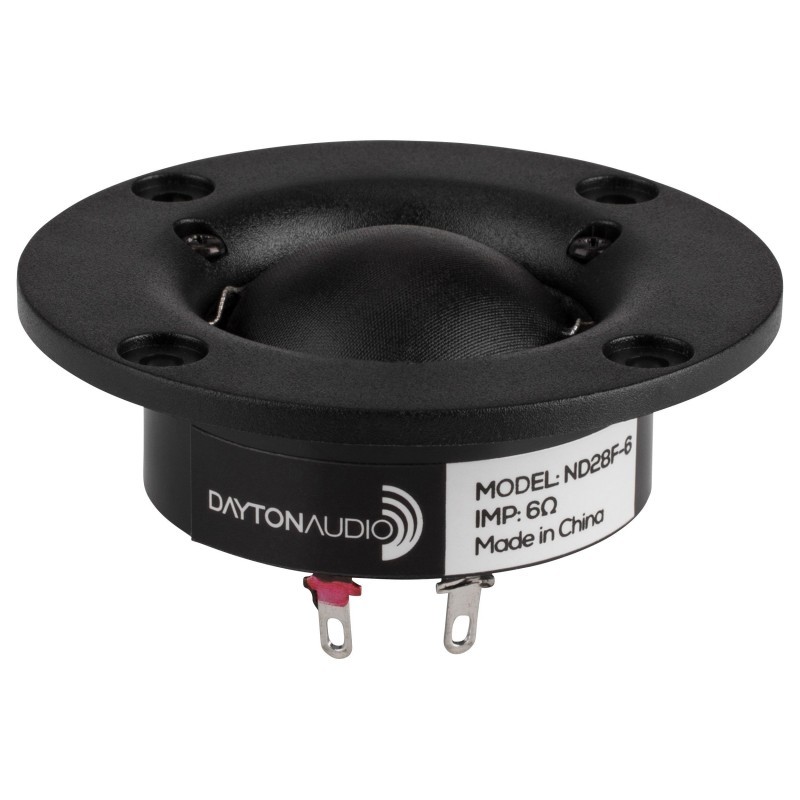

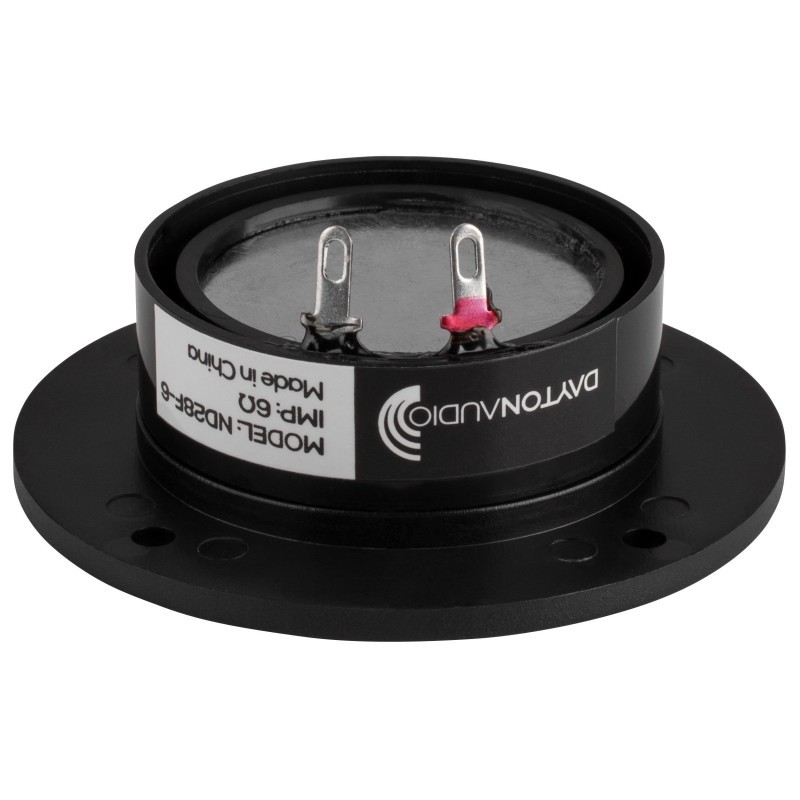

ND28F-6 1-1/8" Neodymium Dome Tweeter 6 Ohm
Front-mount design
$39.95
RRP $42.51
SAVE $2.56 (6%)
In Stock
Notify me when back in stock
This compact 1-1/8" soft dome tweeter offers the best of both worlds. A low free air resonance together with a compact faceplate. Great for MTM or line array designs.
(844632064586)
• Front-mount design
• Center-to-center spacing as low as 2-1/2"
• Great top-end air and sparkle
• Self shielding neodymium motors
• Center-to-center spacing as low as 2-1/2"
• Great top-end air and sparkle
• Self shielding neodymium motors
| Speaker Series | ND Series |
|---|---|
| Model Number | ND28F-6 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 844632064586 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 0.6000 |
| Speaker Type | Tweeter |
| Nominal Diameter | 1.125" |
| Power Handling (RMS) | 30 watts |
| Power Handling (max) | 60 watts |
| Continuous Program Power | -- |
| Impedance | 6 ohms |
| Sensitivity | 88.4 dB @ 1W/1m |
| Frequency Response | 2,200 - 20,000 Hz |
| Voice Coil Diameter | 25 mm |
| Magnet Weight | -- |
| DC Resistance (Re) | 5.4 ohms |
| Voice Coil Inductance (Le) | 0.08 mH |
| Resonant Frequency (Fs) | 1,097 Hz |
| Mechanical Q (Qms) | 2.16 |
| Electromagnetic Q (Qes) | 2.94 |
| Total Q (Qts) | 1.24 |
| Diaphragm Mass Inc. Airload (Mms) | -- |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | -- |
| Surface Area Of Cone (Sd) | 4.9 cm² |
| Volume of Displacement (Vd) | -- |
| BL Product (BL) | -- |
| Compliance Equivalent Volume (Vas) | -- |
| Maximum Linear Excursion (Xmax) | -- |
| Driver's Mechanical Losses (Rms) | -- |
| Cone / Diaphragm Material | Textile Soft Dome |
| Cone / Dome Diameter | 1-1/8" |
| Entry / Exit Diameter | -- |
| Surround Material | -- |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Aluminum |
| Basket/Frame Material | -- |
| Magnet Material | Neodymium |
| Overall Outside Diameter | 65 mm |
| Overall Depth | 19.5 mm |
| Baffle Cutout Diameter | 43.5 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 844632064586 |
| Model # | ND28F-6 |
| Barcode # | 844632064586 |
| Brand | Dayton Audio |
| Shipping Weight | 0.0900kg |
| Shipping Width | 0.146m |
| Shipping Height | 0.089m |
| Shipping Length | 0.140m |
| Shipping Cubic | 0.001814000m3 |
| Assembled Length | 0.140m |
| Assembled Height | 0.089m |
| Assembled Width | 0.146m |
