AMT3-4 Air Motion Transformer Tweeter 4 Ohm
Advanced Air Motion Transformer design "squeezes" air mo
$289.00
In Stock
Notify me when back in stock

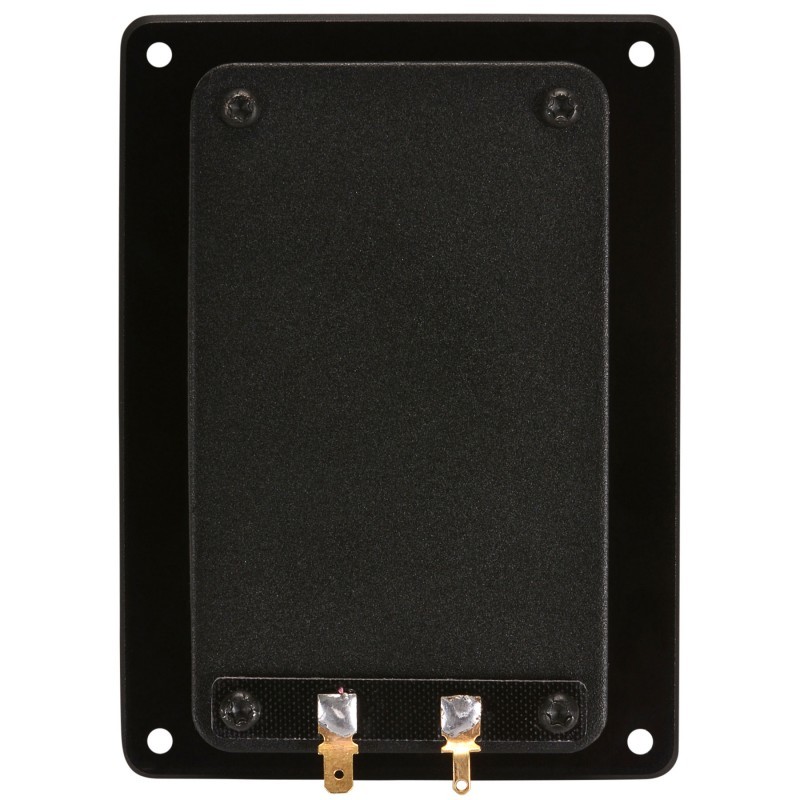

The Dayton Audio AMT3-4's generous radiating area extends response from lower frequencies into the upper midrange, making the transducer great for use as a wideband "mid-tweeter" in a 2-way design with larger woofers, or as a midrange in a 3-way design. The robust metal faceplate adds the distinctive feel of quality, while the sealed rear chamber design eliminates the need for a separate enclosure chamber.
Dayton Audio AMT (Air Motion Transformer) tweeters use groundbreaking transducer technology from the original ESS/Heil Air Motion Transformer to provide ultra-clean, detailed, and dynamic treble output. The pleated ribbon diaphragm of an AMT provides a large acoustic radiating area condensed into a compact chassis, for extremely high output and improved power handling.
Specifications: Dimensions: Overall: 5.12" H x 3.74" W, Cutout: 4.45" H x 2.68", Depth: 0.75".
(848791000638)
• Advanced Air Motion Transformer design "squeezes" air molecules instead of shoving or crushing them
• Folded Kapton ribbon diaphragm delivers clean, detailed, and highly dynamic output
• Robust metal faceplate provides secure, stable mounting
• Powerful, lightweight neodymium magnet structure for low distortion and high efficiency
• Wide bandwidth facilitates integration with large midwoofers
• Folded Kapton ribbon diaphragm delivers clean, detailed, and highly dynamic output
• Robust metal faceplate provides secure, stable mounting
• Powerful, lightweight neodymium magnet structure for low distortion and high efficiency
• Wide bandwidth facilitates integration with large midwoofers
| Speaker Series | AMT Series |
|---|---|
| Model Number | AMT3-4 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 848791000638 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 1.4500 |
| Speaker Type | Tweeter |
| Power Handling (RMS) | 25 watts |
| Power Handling (max) | 50 watts |
| Continuous Program Power | -- |
| Impedance | 4 ohms |
| Sensitivity | 93 dB @ 1W/1m |
| Frequency Response | 1,900 - 18,000 Hz |
| Voice Coil Diameter | -- |
| Magnet Weight | -- |
| DC Resistance (Re) | 3 ohms |
| Voice Coil Inductance (Le) | -- |
| Resonant Frequency (Fs) | -- |
| Mechanical Q (Qms) | 6.26 |
| Electromagnetic Q (Qes) | -- |
| Total Q (Qts) | 6.15 |
| Diaphragm Mass Inc. Airload (Mms) | -- |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | -- |
| Surface Area Of Cone (Sd) | 32.54 cm² |
| Volume of Displacement (Vd) | -- |
| BL Product (BL) | -- |
| Compliance Equivalent Volume (Vas) | -- |
| Maximum Linear Excursion (Xmax) | -- |
| Driver's Mechanical Losses (Rms) | -- |
| Entry / Exit Diameter | -- |
| Surround Material | -- |
| Voice Coil Wire Material | -- |
| Voice Coil Former | -- |
| Basket/Frame Material | -- |
| Magnet Material | -- |
| Overall Outside Diameter | 95 mm x 130 mm |
| Overall Depth | 26.5 mm |
| Baffle Cutout Diameter | 113 mm x 68 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 848791000638 |
| Model # | AMT3-4 |
| Barcode # | 848791000638 |
| Brand | Dayton Audio |
| Shipping Weight | 0.6780kg |
| Shipping Width | 0.127m |
| Shipping Height | 0.051m |
| Shipping Length | 0.178m |
| Shipping Cubic | 0.001147000m3 |
| Assembled Length | 0.178m |
| Assembled Height | 0.051m |
| Assembled Width | 0.127m |
