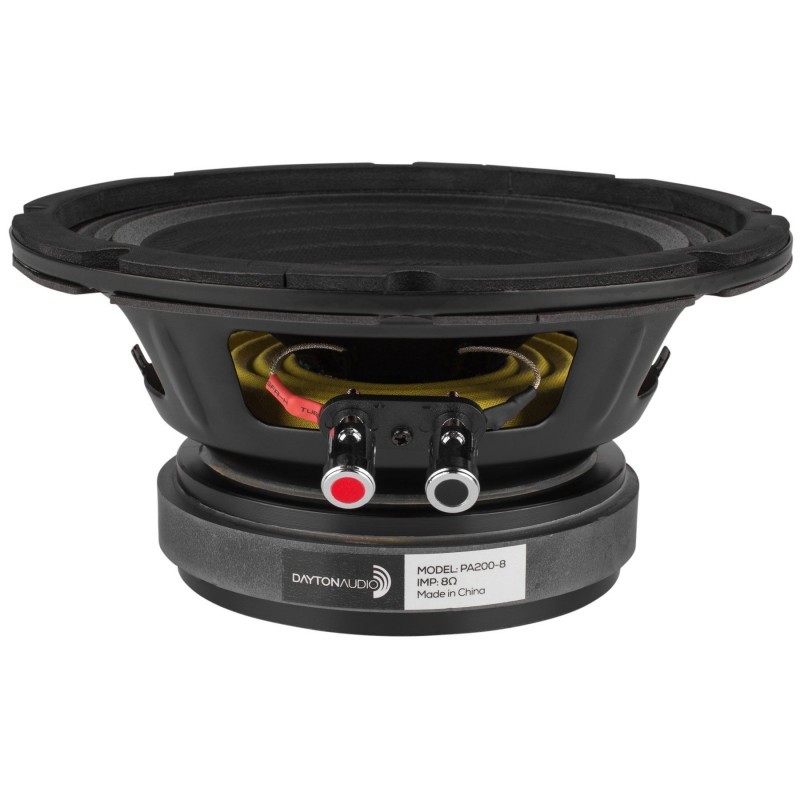

PA200-8 8" PA Woofer 8 Ohm
Strong, low-mass carbon fiber impregnated paper cone
Notify me when back in stock
The PA200-8 8" professional audio woofer, from Dayton Audio, features high power handling by using a vented pole piece and voice coil gap. Black motor parts (including a black polyimide voice coil) help dissipate heat away from the voice coil and help to minimize power compression.
Extended, smooth frequency response and low distortion are achieved through the use of a powerful 50 ounce ceramic ferrite magnet, combined with a copper cap on the pole piece to reduce stray eddy currents and minimize voice coil inductance.
A strong, low-mass, carbon fiber-impregnated paper cone, together with an I-beam rolled-edge 1.2 mm steel frame provides the rugged durability needed to handle the rigors of touring and for stage use, while still offering the sensitivity and punchy bass that you need.
Dayton Audio's PA Series woofer packs all of these premium features into a value-priced 8" driver that is great for use as an upgrade to sound reinforcement or musical instrument speakers. The PA200-8 also excels in custom-built speakers.
OPTIMUM CABINET SIZE *
Sealed Volume 0.57 ft.³
Sealed F3 96 Hz
Vented Volume 1.1 ft.³
Vented F3 48 Hz
- Enclosure volume/F3s based on BassBox "optimum" calculations
(848791000546)
• Low distortion motor system with copper cap
• Vented pole piece and voice coil gap improve thermal management
• Black motor parts and black polyimide voice coil former dissipate heat
• Bumped back plate for unrestricted excursion
| Speaker Series | Pro Audio Series |
|---|---|
| Model Number | PA200-8 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 848791000546 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 7.2500 |
| Speaker Type | Woofer |
| Nominal Diameter | 8" |
| Power Handling (RMS) | 250 watts |
| Power Handling (max) | 500 watts |
| Continuous Program Power | -- |
| Impedance | 8 ohms |
| Sensitivity | 92.4 dB 2.83V/1m |
| Frequency Response | 70 - 9,000 Hz |
| Voice Coil Diameter | 50 mm |
| Magnet Weight | -- |
| DC Resistance (Re) | 6.2 ohms |
| Voice Coil Inductance (Le) | 1.09 mH |
| Resonant Frequency (Fs) | 55.2 Hz |
| Mechanical Q (Qms) | 6.17 |
| Electromagnetic Q (Qes) | 0.51 |
| Total Q (Qts) | 0.48 |
| Diaphragm Mass Inc. Airload (Mms) | 20.5g |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | 0.4 mm/N |
| Surface Area Of Cone (Sd) | 210.4 cm² |
| Volume of Displacement (Vd) | 0.631 cm³ |
| BL Product (BL) | 9.28 Tm |
| Compliance Equivalent Volume (Vas) | 26.6 liters |
| Maximum Linear Excursion (Xmax) | 3.0 mm |
| Driver's Mechanical Losses (Rms) | -- |
| Cone / Diaphragm Material | Paper / Kevlar Cone |
| Entry / Exit Diameter | -- |
| Surround Material | Cloth |
| Voice Coil Wire Material | -- |
| Voice Coil Former | Kapton® / Polyimide |
| Basket/Frame Material | Steel |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 210 mm |
| Overall Depth | 108 mm |
| Baffle Cutout Diameter | 182 mm |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 848791000546 |
| Model # | PA200-8 |
| Barcode # | 848791000546 |
| Brand | Dayton Audio |
| Shipping Weight | 3.3400kg |
| Shipping Width | 0.229m |
| Shipping Height | 0.152m |
| Shipping Length | 0.229m |
| Shipping Cubic | 0.007964000m3 |
| Assembled Length | 0.229m |
| Assembled Height | 0.152m |
| Assembled Width | 0.229m |
