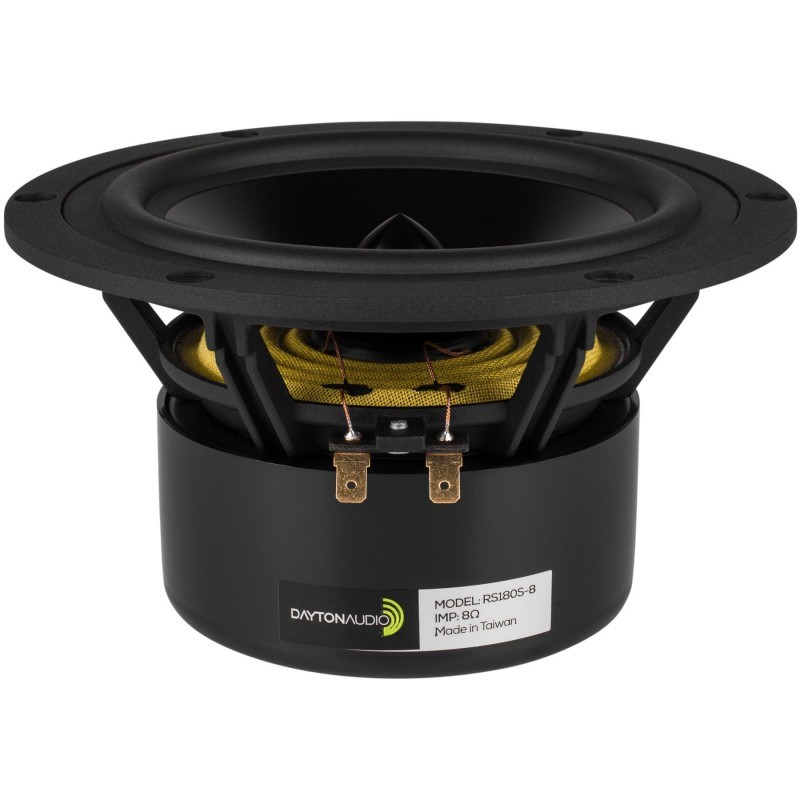

RS180S-8 7" Reference Shielded Woofer 8 Ohm
Long-excursion motor and suspension for strong bass perf
$179.00
In Stock
Notify me when back in stock
The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofers feature a shielded motor system, black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug.
OPTIMUM CABINET SIZE *
Sealed Volume 0.17 ft.³
Sealed F3 99 Hz
Vented Volume 0.49 ft.³
Vented F3 56 Hz
- Enclosure volume/F3s based on BassBox "optimum" calculations
(844632000331)
• Long-excursion motor and suspension for strong bass performance
• Subtle yet high-tech look makes a bold cosmetic statement
• Ultra-low stray magnetic field allows extremely close proximity to CRT's
• Subtle yet high-tech look makes a bold cosmetic statement
• Ultra-low stray magnetic field allows extremely close proximity to CRT's
| Speaker Series | Reference Series |
|---|---|
| Model Number | RS180S-8 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 844632000331 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 5.5000 |
| Speaker Type | Woofer |
| Nominal Diameter | 7" |
| Power Handling (RMS) | 60 watts |
| Power Handling (max) | 120 watts |
| Continuous Program Power | -- |
| Impedance | 8 ohms |
| Sensitivity | 86.9 dB @ 2.83V/1m |
| Frequency Response | 41 - 3,600 Hz |
| Voice Coil Diameter | 25 mm |
| Magnet Weight | -- |
| DC Resistance (Re) | 6.4 ohms |
| Voice Coil Inductance (Le) | 0.79 mH @ 1 kHz |
| Resonant Frequency (Fs) | 37.7 Hz |
| Mechanical Q (Qms) | 1.45 |
| Electromagnetic Q (Qes) | 0.49 |
| Total Q (Qts) | 0.36 |
| Diaphragm Mass Inc. Airload (Mms) | 17g |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | 1.05 mm/N |
| Surface Area Of Cone (Sd) | 124.7 cm² |
| Volume of Displacement (Vd) | 74.8 cm³ |
| BL Product (BL) | 7.28 Tm |
| Compliance Equivalent Volume (Vas) | 23 liters |
| Maximum Linear Excursion (Xmax) | 6.0 mm |
| Driver's Mechanical Losses (Rms) | -- |
| Cone / Diaphragm Material | Black Anodized Aluminum Cone |
| Entry / Exit Diameter | -- |
| Surround Material | Rubber |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Aluminum |
| Basket/Frame Material | Cast Aluminum |
| Magnet Material | Ferrite |
| Shielded | Yes |
| Overall Outside Diameter | 180.5 mm |
| Overall Depth | 98 mm |
| Baffle Cutout Diameter | 146 mm |
| # Mounting Holes | 6 |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 844632000331 |
| Model # | RS180S-8 |
| Barcode # | 844632000331 |
| Brand | Dayton Audio |
| Shipping Weight | 2.6500kg |
| Shipping Width | 0.203m |
| Shipping Height | 0.127m |
| Shipping Length | 0.203m |
| Shipping Cubic | 0.005244000m3 |
| Assembled Length | 0.203m |
| Assembled Height | 0.127m |
| Assembled Width | 0.203m |
