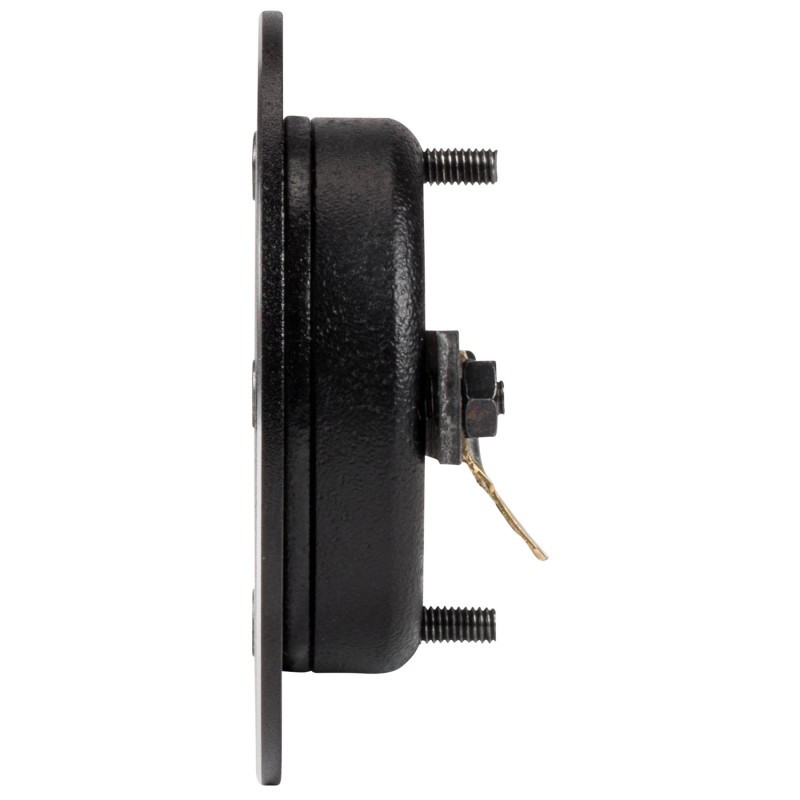

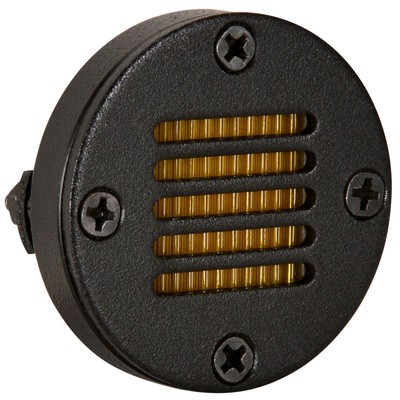

AMT Mini-8 Air Motion Transformer Tweeter 8 Ohm
Advanced Air Motion Transformer design
$69.50
Availability:
8-14 days
8-14 days
Notify me when back in stock
The Dayton Audio AMT Mini-8 model features a round housing and compact AMT element, for wide dispersion that easily replaces dome tweeters in retrofit or new design applications. The AMT Mini-8 is small enough to be used in compact satellite speakers, or installed in the center of a mid-woofer to create a full-bandwidth coaxial driver, or implemented in other ways -- including line arrays. The sealed rear chamber design of the AMT Mini-8 eliminates the need for a separate internal chamber in the loudspeaker enclosure.
Dayton Audio AMT (Air Motion Transformer) tweeters use groundbreaking transducer technology from the original ESS/Heil Air Motion Transformer to provide ultra-clean, detailed, and dynamic treble output. The pleated ribbon diaphragm of an AMT provides a large acoustic radiating area condensed into a compact chassis, for extremely high output and improved power handling.
Specifications: Dimensions: Overall diameter: 1.59", Depth: 0.91".
Note: This tweeter is designed for press-fit mounting.
(848791000652)
• Advanced Air Motion Transformer design
• Folded Kapton ribbon diaphragm delivers clean, detailed, and highly dynamic output
• Miniature design can be mounted virtually anywhere
• Powerful, lightweight neodymium magnet structure for low distortion and high efficiency
• Folded Kapton ribbon diaphragm delivers clean, detailed, and highly dynamic output
• Miniature design can be mounted virtually anywhere
• Powerful, lightweight neodymium magnet structure for low distortion and high efficiency
| Speaker Series | AMT Series |
|---|---|
| Model Number | AMT Mini-8 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 848791000652 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 0.1300 |
| Speaker Type | Tweeter |
| Power Handling (RMS) | 15 watts |
| Power Handling (max) | 30 watts |
| Continuous Program Power | -- |
| Impedance | 8 ohms |
| Sensitivity | 88 dB @ 1W/1m |
| Frequency Response | 3,500 - 40,000 Hz |
| Voice Coil Diameter | -- |
| Magnet Weight | -- |
| DC Resistance (Re) | 7.92 ohms |
| Voice Coil Inductance (Le) | -- |
| Resonant Frequency (Fs) | -- |
| Mechanical Q (Qms) | 1.86 |
| Electromagnetic Q (Qes) | -- |
| Total Q (Qts) | 1.84 |
| Diaphragm Mass Inc. Airload (Mms) | -- |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | -- |
| Surface Area Of Cone (Sd) | 3.8 cm² |
| Volume of Displacement (Vd) | -- |
| BL Product (BL) | -- |
| Compliance Equivalent Volume (Vas) | -- |
| Maximum Linear Excursion (Xmax) | -- |
| Driver's Mechanical Losses (Rms) | -- |
| Entry / Exit Diameter | -- |
| Surround Material | -- |
| Voice Coil Wire Material | -- |
| Voice Coil Former | -- |
| Basket/Frame Material | -- |
| Magnet Material | -- |
| Overall Outside Diameter | 40.5 mm |
| Overall Depth | 23 mm |
| Baffle Cutout Diameter | -- |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 848791000652 |
| Model # | AMTMINI-8 |
| Barcode # | 848791000652 |
| Brand | Dayton Audio |
| Shipping Weight | 0.1300kg |
| Shipping Width | 0.076m |
| Shipping Height | 0.076m |
| Shipping Length | 0.076m |
| Shipping Cubic | 0.000442000m3 |
| Assembled Length | 0.076m |
| Assembled Height | 0.076m |
| Assembled Width | 0.076m |
