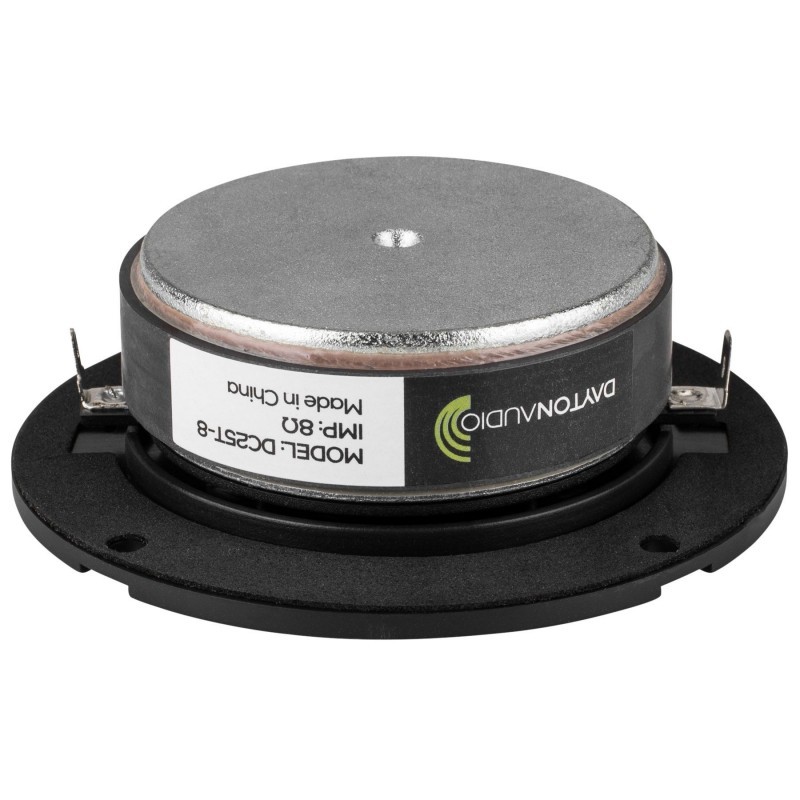

DC25T-8 1" Titanium Dome Tweeter 8 Ohm
Great replacement for the Dayton DC25TS-8 1" Titanium Do
$42.50
In Stock
Notify me when back in stock
Features a ferro fluid cooled aluminum voice coil and a rubber surround. The 1" Titanium dome and precision phase lens, provides very natural sounding high frequency reproduction.
(844632000157)
• Great replacement for the Dayton DC25TS-8 1" Titanium Dome Shielded Tweeter
| Speaker Series | Classic Series |
|---|---|
| Model Number | DC25T-8 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 844632000157 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 1.0000 |
| Speaker Type | Tweeter |
| Nominal Diameter | 1" |
| Power Handling (RMS) | 50 watts |
| Power Handling (max) | 100 watts |
| Continuous Program Power | -- |
| Impedance | 8 ohms |
| Sensitivity | 93 dB @ 1W/1m |
| Frequency Response | 3,000 - 20,000 Hz |
| Voice Coil Diameter | 25 mm |
| Magnet Weight | -- |
| DC Resistance (Re) | 7.7 ohms |
| Voice Coil Inductance (Le) | 0.59 mH @ 1 kHz |
| Resonant Frequency (Fs) | 1468 Hz |
| Mechanical Q (Qms) | 0.58 |
| Electromagnetic Q (Qes) | 2.55 |
| Total Q (Qts) | 0.47 |
| Diaphragm Mass Inc. Airload (Mms) | -- |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | -- |
| Surface Area Of Cone (Sd) | 4.9 cm² |
| Volume of Displacement (Vd) | -- |
| BL Product (BL) | -- |
| Compliance Equivalent Volume (Vas) | -- |
| Maximum Linear Excursion (Xmax) | -- |
| Driver's Mechanical Losses (Rms) | -- |
| Cone / Diaphragm Material | Titanium Dome |
| Cone / Dome Diameter | 1" |
| Entry / Exit Diameter | -- |
| Surround Material | -- |
| Voice Coil Wire Material | -- |
| Voice Coil Former | -- |
| Basket/Frame Material | -- |
| Magnet Material | -- |
| Overall Outside Diameter | 99.5 mm |
| Overall Depth | 27.5 mm |
| Baffle Cutout Diameter | 70 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 844632000157 |
| Model # | DC25T-8 |
| Barcode # | 844632000157 |
| Brand | Dayton Audio |
| Shipping Weight | 0.5670kg |
| Shipping Width | 0.102m |
| Shipping Height | 0.051m |
| Shipping Length | 0.102m |
| Shipping Cubic | 0.000524000m3 |
| Assembled Length | 0.102m |
| Assembled Height | 0.051m |
| Assembled Width | 0.102m |
