BC14SG76-08 - VIFA 5½"� MAGNETICALLY SHIELDED
VIFA LOGIC SERIES
$45.00
In Stock
Notify me when back in stock
VIFA LOGIC SERIES Composite polymer chassis polyamide, glass & minerals. High power, temperature resistant, open air, vented pole, aluminium voice coil. Poly doped fibre cone with inverted dust cap and rubber surround.
(7135)
| Order Code | BC14SG76-08 |
|---|---|
| Type | Mid-Woofer |
| Size | 5" |
| Price Type | each |
| Power | 30Wrms |
| Coil | 25mmØ |

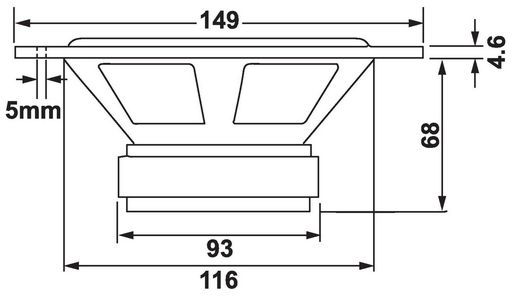

| Width | 149mmØ |
| Hole | 116mmØ |
| QTY | 1 |
| Impedance | 8O (Re 5.8O) |
| Depth | 68mm |
| Sens. | 88.079dB |
| Re | 5.8O |
| Qms | 2.363 |
| Qes | 0.475 |
| Qts | 0.396 |
| Vas | 11.419L |
| Sd | 80cm² |
| Fs | 55.8Hz |
| Zn | 8O |
| Manufacturer | Vifa |
| PAE | 14SG08 |
| Prms | 30W |
| Materials | NRSC Coated |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 0-50 Watt |
| Inch | 5 |
| SKU | 7135 |
| Model # | BC14SG76-08 |
| Brand | Vifa |
| Shipping Weight | 1.2000kg |
| Type | Mid-Woofer |
