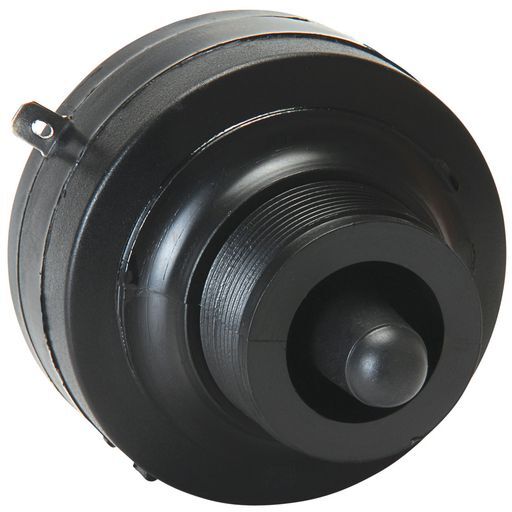

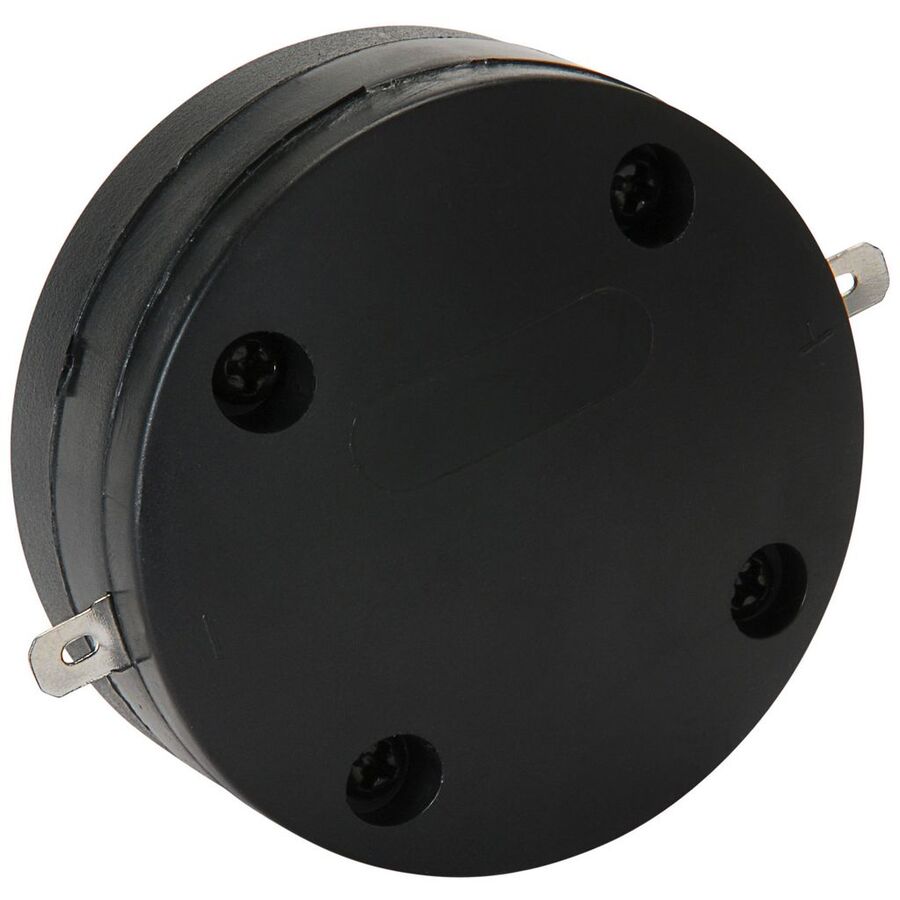

PZ1142 Horn Driver
KSN1142A Replacement - Requires Horn
$10.95
In Stock
Notify me when back in stock
Drop-In replacement for KSN1142A
Suits Motorola CTS 10” and 15” Horns.
35mm 1-3/8” 18-TPI Threaded
Piezo coupled paper cone
Popular PA tweeter
(23782)
| Type | Tweeter Horn |
| Size | 1" |
| Power | 120W |
| Freq. | 1.8KHz - 30KHz |
| Sens. | 92dB |
| Made | Copy |
| Manufacturer | Daichi |
| Impedance (Ohm) | Piezo |
| Power (RMS) | 51-100 Watt |
| Re | 0.3uF |
| Mount | 18-TPI |
| Coil | 22mm |
| Depth | 38mm |
| Prms | 60W |
| Diam. | 62mmØ |
| Dimensions | 62mmØ |
| SPL | 92dB |
| Brand. | Daichi |
| OEM | KSN1142A |
| Impedance | Piezo |
| Zn | Piezo |
| Series | Piezo |
| Materials | Piezo |
| Mag. | Piezo 22mm |
| SKU | 23782 |
| Model # | PZ1142 |
| Brand | Daichi |
| Shipping Weight | 0.7000kg |
