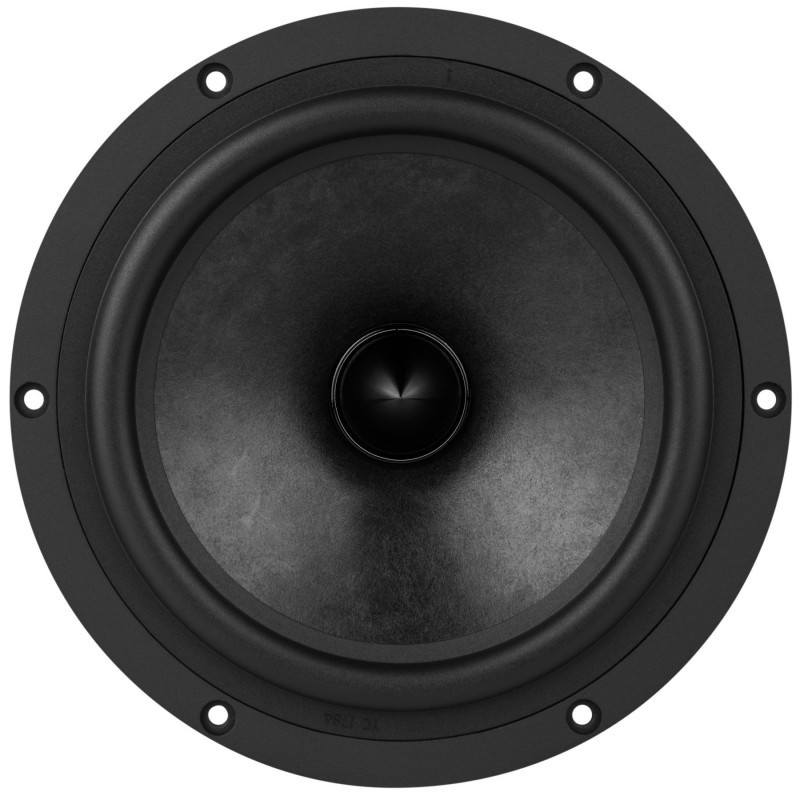

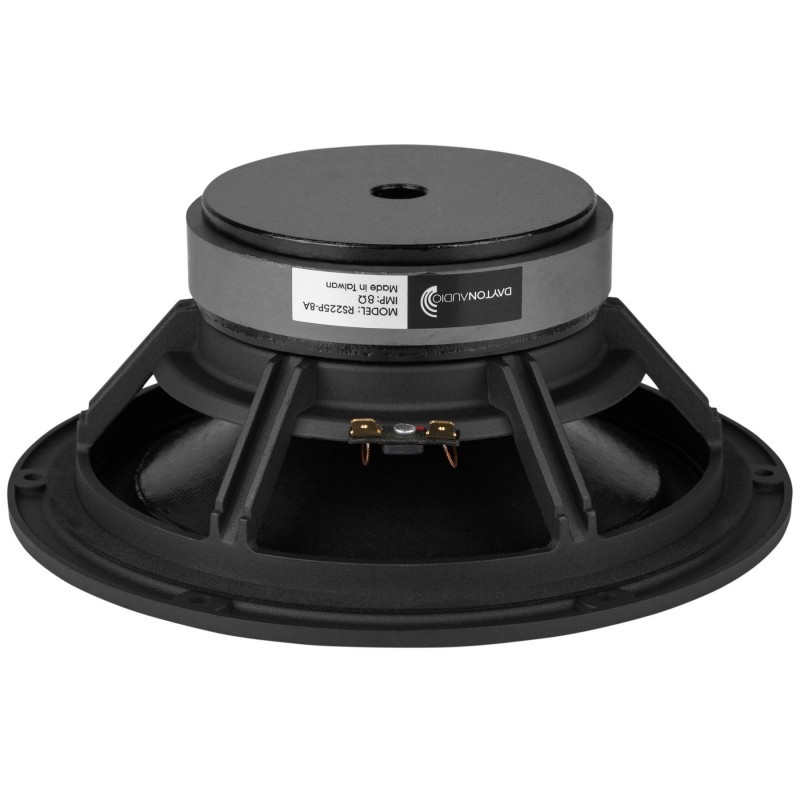

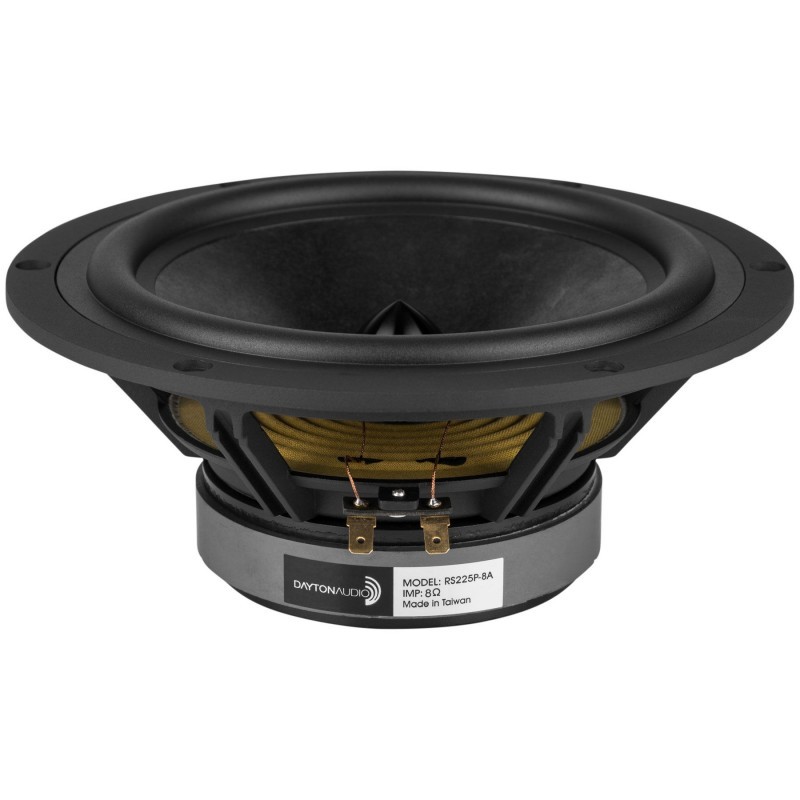

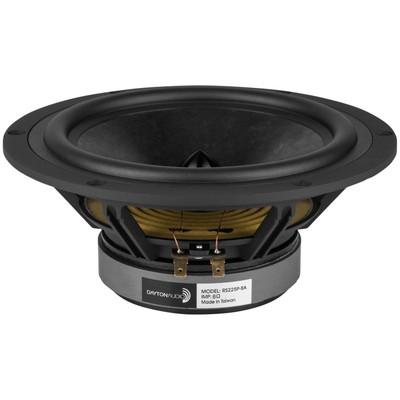

RS225P-8A 8" Reference Paper Woofer 8 Ohm
Now with improved frequency response for easier crossove
Notify me when back in stock
Now with improved frequency response – we tweaked the design and the result is a much a smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration.
The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.
Optimum Cabinet Size
Sealed Volume 0.41 ft.³
Sealed F3 80 Hz
Vented Volume 1.05 ft.³
Vented F3 49 Hz
(848791002687)
• Now with improved frequency response for easier crossover integration
• Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
• Low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
• Perfect for use as a woofer, midwoofer, or dedicated midrange driver
• 89.1 dB sensitivity and 7 mm of excursion
| Speaker Series | Reference Series |
|---|---|
| Model Number | RS225P-8A |
| Color | Black |
| Unit of Measure | Each |
| UPC | 848791002687 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 6.0000 |
| Speaker Type | Woofer |
| Nominal Diameter | 8" |
| Power Handling (RMS) | 80 watts |
| Power Handling (max) | 120 watts |
| Continuous Program Power | -- |
| Impedance | 8 ohms |
| Sensitivity | 89.1 dB @ 2.83V/1m |
| Frequency Response | 30 - 7,000 Hz |
| Voice Coil Diameter | 38.6 mm |
| Magnet Weight | -- |
| DC Resistance (Re) | 7.1 ohms |
| Voice Coil Inductance (Le) | 1.02 mH @ 1 kHz |
| Resonant Frequency (Fs) | 31.6 Hz |
| Mechanical Q (Qms) | 1.25 |
| Electromagnetic Q (Qes) | 0.46 |
| Total Q (Qts) | 0.34 |
| Diaphragm Mass Inc. Airload (Mms) | 23.6g |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | 1.07 mm/N |
| Surface Area Of Cone (Sd) | 213.8 cm² |
| Volume of Displacement (Vd) | 70.3 cm³ |
| BL Product (BL) | 8.5 Tm |
| Compliance Equivalent Volume (Vas) | 68.8 liters |
| Maximum Linear Excursion (Xmax) | 7 mm |
| Driver's Mechanical Losses (Rms) | -- |
| Cone / Diaphragm Material | Paper / Kevlar Cone |
| Entry / Exit Diameter | -- |
| Surround Material | Rubber |
| Voice Coil Wire Material | -- |
| Voice Coil Former | -- |
| Basket/Frame Material | Cast Aluminum |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 223 mm |
| Overall Depth | 89 mm |
| Baffle Cutout Diameter | 184 mm |
| # Mounting Holes | 6 |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 848791002687 |
| Model # | RS225P-8A |
| Barcode # | 848791002687 |
| Brand | Dayton Audio |
| Shipping Weight | 2.7510kg |
| Shipping Width | 0.235m |
| Shipping Height | 0.127m |
| Shipping Length | 0.235m |
| Shipping Cubic | 0.007011000m3 |
