DC160-4 - 6½" CLASSIC PAPER CONE WOOFER

6-1/2" Classic Woofer Speaker

$75.00
In Stock


Calculate Shipping


Choose the Dayton Audio Classic Series 6-1/2" woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.

The 6-1/2" woofer features a non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate. Economical and excellent low frequency performance.

  • 6½” woofer can function as a woofer, mid-bass, or a small subwoofer.
  • Treated paper cone provides smooth response and reduced cone breakup.
  • Rubber surround, aluminium voice coil, and extended bump plate.

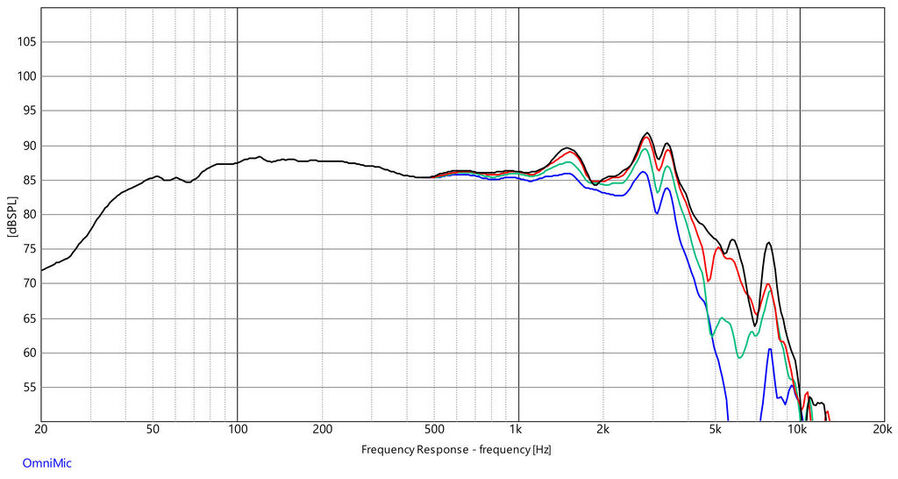

  • Smooth frequency response up to 2 kHz and great bass response.
  • Large diameter flat spider and good Xmax for clean bass.

(DC160-4)

Description 6-1/2" Classic Woofer Speaker
Cms 0.57mm/N
Coil 35.5mmØ

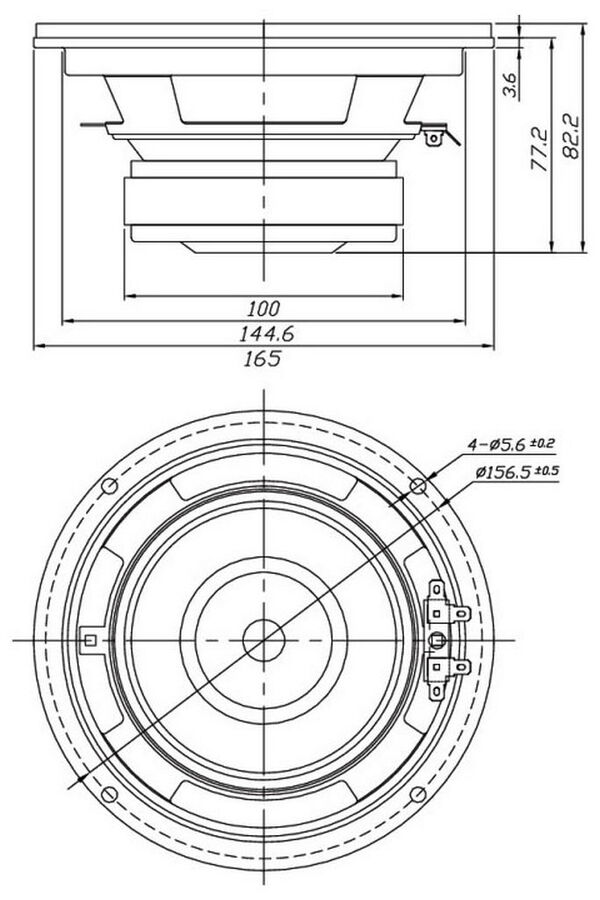

Depth 77.2mm
Diam. 165mmØ
Fs 39Hz
Impedance 4Ω Re 3.4Ω
Impedance (Ohm) 4 ohm
Inch 6.5
Le 0.99mH
Manufacturer Dayton Audio
Mms 29.2g
Power 60W
Power (RMS) 51-100 Watt
Price Type each
Prms 60W
Qes 0.49
Qms 3.31
Qts 0.43
QTY 1
Re 3.4Ω
Sd 136.8cm²
Sens. 88.3dB
Series Classic
Size 6.5'
Type Woofer
Vas 15L
Zn
Hole 145mmØ
SKU DC160-4
Model # DC160-4
Barcode # DC160-4
Brand Dayton Audio
Shipping Weight 1.4800kg
Shipping Width 0.170m
Shipping Height 0.095m
Shipping Length 0.170m
Shipping Cubic 0.002745500m3
