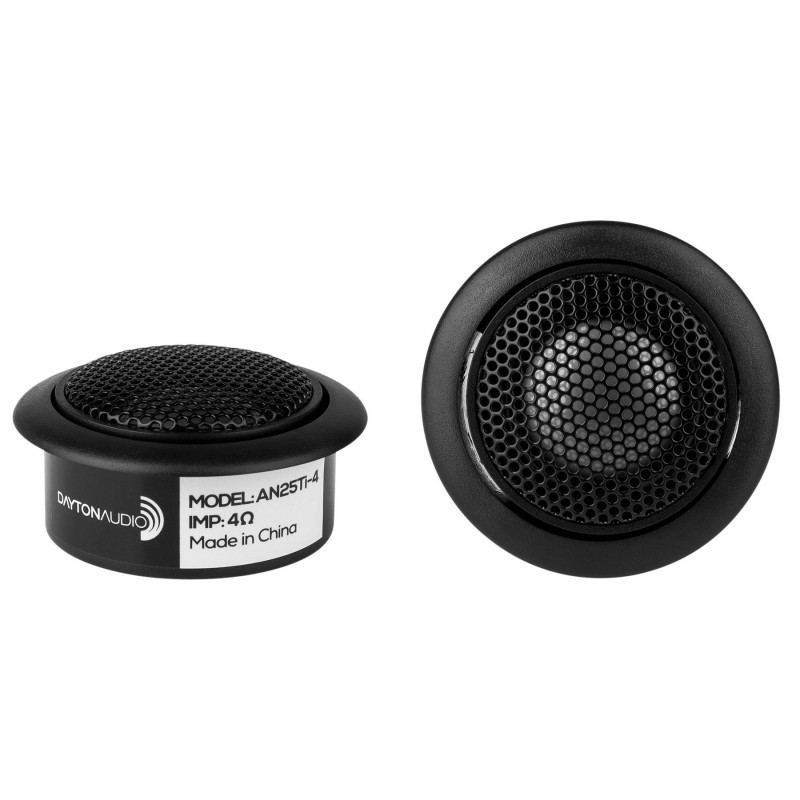

AN25Ti-4 1" Titanium Dome Neodymium Car Audio Tweeter Pair 4 Ohm
Exceptionally flat treble response for accurate high fre
Notify me when back in stock
Dayton Audio designed the AN25Ti-4 tweeter to provide superb audio reproduction. The titanium diaphragm offers remarkable accuracy, great off-axis dispersion and an exceptionally flat response above 3 kHz. Although these tweeters where specifically designed for car audio systems, their modern appearance, high efficiency, and flat response curve integrate easily into many non-automotive designs and are especially useful in MTM and TMM designs where high efficiency and/or minimal center-to-center spacing of the tweeter and woofer placement is needed. Sold in pairs.
Specifications: • Power handling: 30 watts RMS/60 watts max (with appropriate crossover) • VCdia: 1" • Impedance: 4 ohms • Re: 3.11 ohms • Frequency range: 3,000-20,000 Hz • Fs: 1744 Hz • SPL: 95.5 dB @2.83V/1m.
(848791004865)
• High-strength neodymium motor provides low distortion and compact size
• Ultra-high sensitivity of 95 dB to deliver high output with modest power
• 1" titanium diaphragm for incredibly accuracy and great off-axis response
• 1" diameter voice coil for excellent power handling

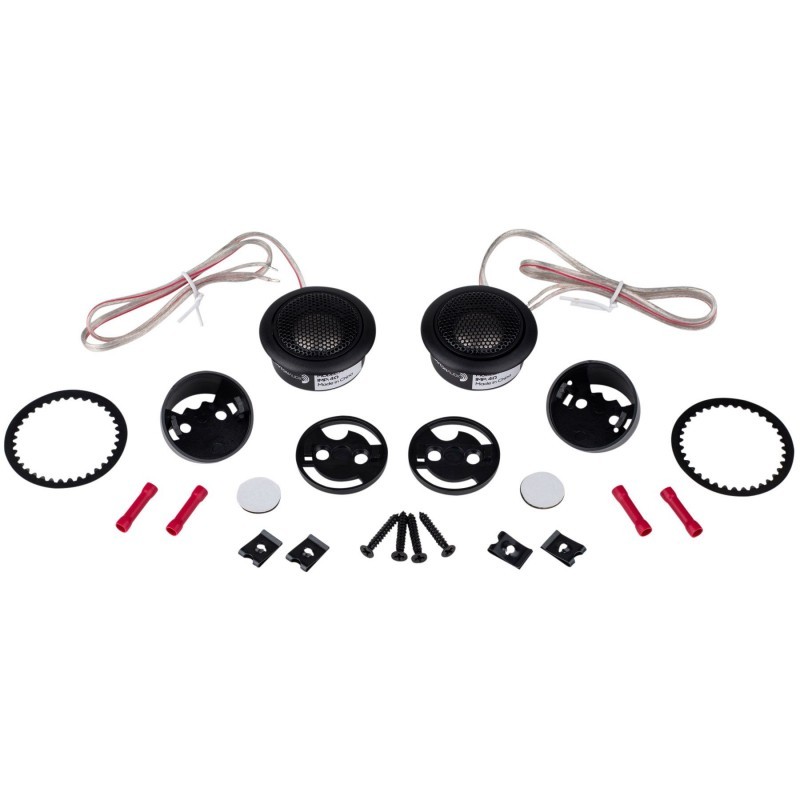

• All hardware included to permit flush or surface mounting
| Speaker Series | ND Series |
|---|---|
| Model Number | AN25Ti-4 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 848791004865 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 1.2000 |
| Speaker Type | Tweeter |
| Nominal Diameter | 1" |
| Power Handling (RMS) | 40 watts |
| Power Handling (max) | 80 watts |
| Continuous Program Power | -- |
| Impedance | 4 ohms |
| Sensitivity | 95.5 dB 2.83V/1m |
| Frequency Response | 3,000 - 20,000 Hz |
| Voice Coil Diameter | 25.4 mm |
| Magnet Weight | -- |
| DC Resistance (Re) | 3.11 ohms |
| Voice Coil Inductance (Le) | 0.03 mH |
| Resonant Frequency (Fs) | 1744 Hz |
| Mechanical Q (Qms) | 3.04 |
| Electromagnetic Q (Qes) | 2.28 |
| Total Q (Qts) | 1.30 |
| Diaphragm Mass Inc. Airload (Mms) | -- |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | -- |
| Surface Area Of Cone (Sd) | -- |
| Volume of Displacement (Vd) | -- |
| BL Product (BL) | -- |
| Compliance Equivalent Volume (Vas) | -- |
| Maximum Linear Excursion (Xmax) | -- |
| Driver's Mechanical Losses (Rms) | -- |
| Cone / Diaphragm Material | Titanium Cone |
| Entry / Exit Diameter | -- |
| Surround Material | -- |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Polyimide |
| Basket/Frame Material | Plastic |
| Magnet Material | Neodymium |
| Overall Outside Diameter | 53 mm |
| Overall Depth | 25.5 mm |
| Baffle Cutout Diameter | 18 mm |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 848791004865 |
| Model # | AN25TI-4 |
| Barcode # | 848791004865 |
| Shipping Weight | 0.2920kg |
