APA150 150W Power Amplifier

Virtually noise-free fan operation for near field applic

In Stock

Calculate Shipping

Dayton Audio's versatile APA150 can deliver 75 watts into 2 channels, or 150 watts into 8 ohms when set to bridge-mono mode. A built-in, switchable low-pass filter makes this a great subwoofer amp, and full range line-level outputs allow for bi-amp config

Amplifiers today need to be multi-faceted to keep up with the task at hand. Versatility is the foundation upon which the APA150 is based. Configured in stereo mode, amplification is provided to a pair of speakers for stereo or surround playback. Select bridge-mono mode and the APA150 is configured for powering a center channel speaker, or a subwoofer/tactile transducer when used with the on-board low pass filter. Full-range line-level outputs allow for daisy chaining amplifiers for a multi-room whole house audio system or for bi-amp applications. A smaller chassis consumes less space than conventional amplifiers making placement options virtually endless.

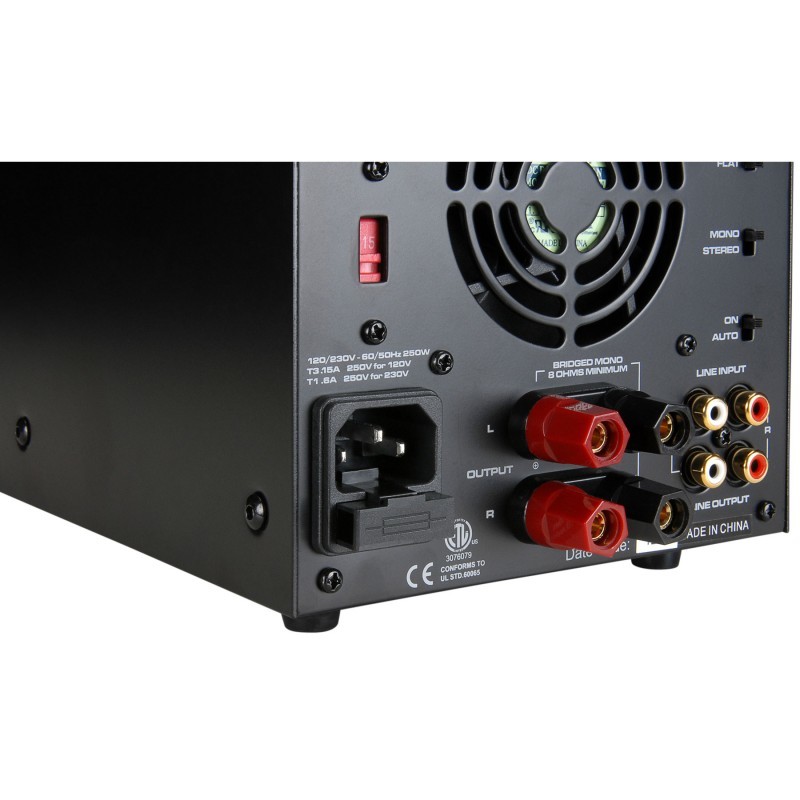

Key features of the APA150 are high current, discrete power transistors (used in premium amp designs), a hefty toroidal power supply transformer, low-noise forced air cooling, a fully adjustable—and defeatable—electronic 50-150 Hz low-pass filter (18 dB/octave), and complete protection against electrical shorting and thermal overload. Also included is auto-on/off, silent turn-off with no audible transient, gold plated RCA inputs/outputs, and 5-way binding posts.



• Virtually noise-free fan operation for near field applications
• Sleek modern design looks good in any audio system
• High current, discrete output transistors that run cool and quiet
• Adjustable 50-150 Hz low pass crossover gives you the room control you need
• Gold-plated 5-way binding posts that accept up to 8 AWG wire

Model Number APA150
Color Black
Unit of Measure Each
UPC 844632061523
Warranty - Parts 5 Years
Warranty - Labor 5 Years
Product Height 5.6"
Product Width 5.7"
Product Length --
Product Depth 12.8"
Product Shipping Weight (lbs.) 13.0000
Amplifier Type Power Amplifiers
Power Output 75 watts RMS x 2 into 4 ohms
150 watts RMS x 1 into 8 ohms
Power Output (RMS @ 70V) Range --
Output Channels 2
Output Connectors Binding Post
Output Types 4 ohms, 8 ohms
Inputs 1
Input Connectors RCA
Input Impedance 47 k ohms ±5%
Signal-to-Noise Ratio >100 dB, unweighted
THD @ Rated Power Less than 0.01%
Parametric EQ --
Phase Adjustment --
Low-pass Crossover Variable 50-150 Hz, 18 dB/octave
Low Pass Adjustment --
Dynamic Range --
Frequency Response 20 Hz - 20,000 Hz
Efficiency --
Gain --
Bass Boost --
Voltage Requirement 120V 60 Hz, 230V 50 Hz (switchable)
Auto-on Sensitivity 3 mV
Stand-by Power Rating --
Special Features --
SKU 844632061523
Model # APA150
Barcode # 844632061523
Brand Dayton Audio
Shipping Weight 5.6000kg
Shipping Width 0.210m
Shipping Height 0.203m
Shipping Length 0.394m
Shipping Cubic 0.016764000m3
Assembled Length 0.394m
Assembled Height 0.203m
Assembled Width 0.210m
