RSS460-PR 18" Aluminum Cone Passive Radiator

SMS (Sandwich Mass System) permits greater linearity by

$499.00
Availability:
8-14 days


Calculate Shipping

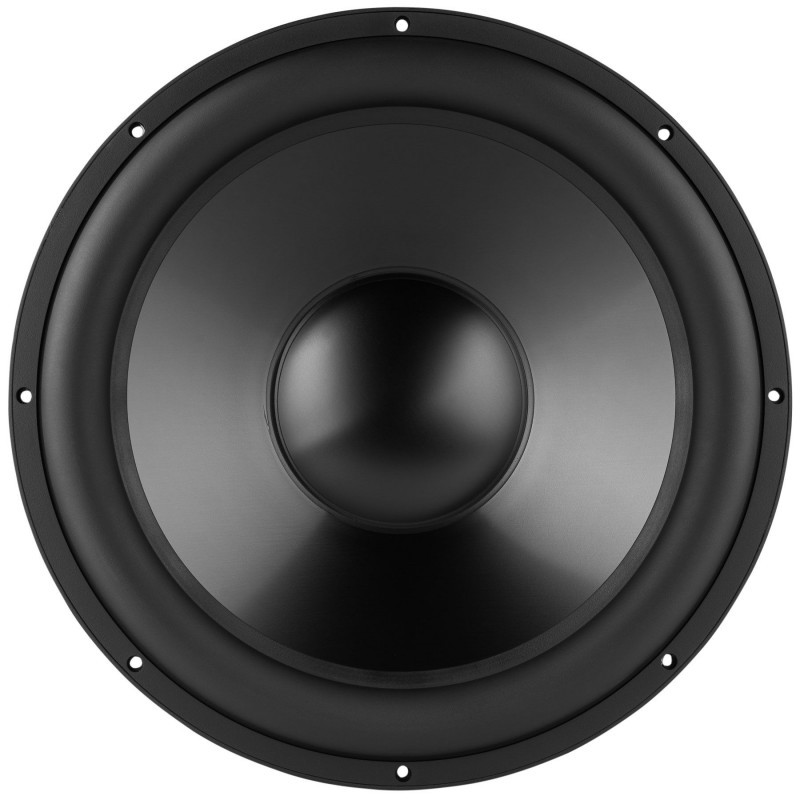

Dayton Audio's RSS460-PR 18" passive radiator is the ideal choice for tuning small enclosures lower than possible with a conventional port. With a thick aluminum cone, cast frame, rubber surround, and incredible excursion capabilities (68 mm peak to peak)


Dayton Audio is proud to offer our customers a complete line of Reference Series Passive Radiators. These high quality, well-engineered passive radiators are carefully constructed using the same rigid anodized aluminum cone and cast frame as our world renowned Reference Series subwoofers, making them visually identical and a perfect match to the very popular line of drivers.

Each passive radiator employs the unique SMS (Sandwiched Mass Structure) design which keeps the majority of the mass centered between the surround and spider providing greater linearity by minimizing angular torque. These passives are also tunable using the included weights with the bolt-on mass adjustment assembly making them easily integrated into virtually any subwoofer design.

The RSS460-PR 18" passive radiator includes:
1 – Passive radiator
8 – 75 gram disk weights
1 – wing nut (for tuning)
1 – lock nut (for final assembly)

Note: Parameters above are for the passive only with no additional mass added. Parameters with additional mass added are listed in the table below.








Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.

(848791002748)

• SMS (Sandwich Mass System) permits greater linearity by minimizing angular torque
• Durable yet compliant suspension provides substantial linear travel and mechanical stability
• Rigid cast aluminum frame with thick black anodized aluminum cone

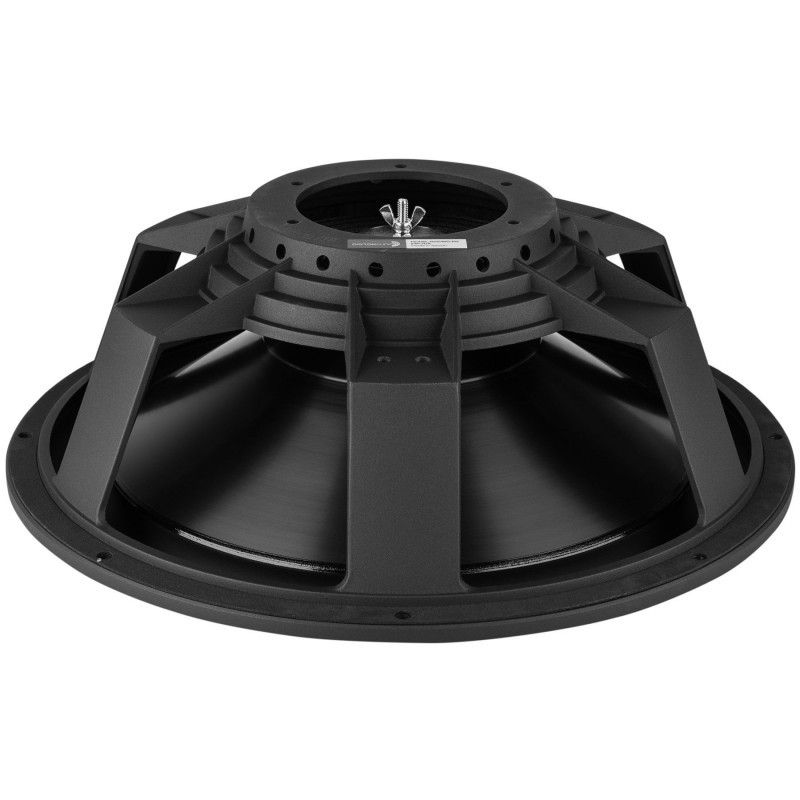

• Threaded rod with lock nut for easy adjustment of tuning frequency
• Includes 8-75 gram weighted disks for simple tuning adjustment
• Cosmetically identical to our popular Reference Series Subwoofer lines

Speaker Series Reference Series
Model Number RSS460-PR
Color Black
Unit of Measure Each
UPC 848791002748
Warranty - Parts 5 Years
Warranty - Labor 5 Years
Product Shipping Weight (lbs.) 19.0000
Speaker Type Passive Radiator
Nominal Diameter 18"
Power Handling (max) --
Continuous Program Power --
Sensitivity --
Frequency Response --
Voice Coil Diameter --
Magnet Weight --
DC Resistance (Re) --
Voice Coil Inductance (Le) --
Resonant Frequency (Fs) 14.7 Hz
Mechanical Q (Qms) 5.03
Electromagnetic Q (Qes) --
Total Q (Qts) --
Diaphragm Mass Inc. Airload (Mms) 500g
Moving Mass Of Diaphragm (Mmd) --
Mechanical Compliance of Suspension (Cms) 0.23 mm/N
Surface Area Of Cone (Sd) 1164.0 cm²
Volume of Displacement (Vd) 3,957.6 cm³
BL Product (BL) --
Compliance Equivalent Volume (Vas) 449.0 liters
Maximum Linear Excursion (Xmax) 34 mm
Driver's Mechanical Losses (Rms) 9.21 kg/s
Entry / Exit Diameter --
Surround Material --
Voice Coil Wire Material --
Voice Coil Former --
Basket/Frame Material --
Magnet Material --
Overall Outside Diameter 461.5 mm
Overall Depth 157 mm
Baffle Cutout Diameter 424 mm
Mounting Hole Diameter --
Bolt Circle Diameter --
Product Weight --
SKU 848791002748
Model # RSS460-PR
Barcode # 848791002748
Brand Dayton Audio
Shipping Weight 4.9900kg
Shipping Width 0.508m
Shipping Height 0.229m
Shipping Length 0.508m
Shipping Cubic 0.058993000m3
