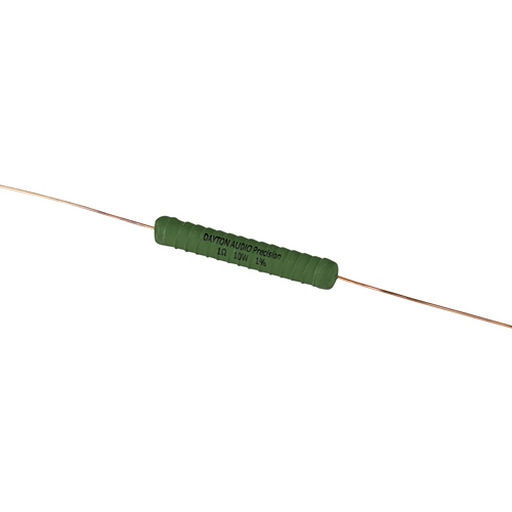

DPR10-20.0 - 10W 1% PRECISION AUDIO RESISTOR 20 OHM

LOW-INDUCTANCE WIREWOUND

$7.95
In Stock


Calculate Shipping


Designed for use in high-end audio crossover designs. Dayton Audio Precision 10 watt Audio Grade Resistors are ideal for use in your next high end speaker design. The extremely low inductance, non-magnetic construction, tight 1% tolerance, copper end caps, and copper leads give these high quality resistors the ability to provide reliable and consistent performance without any detrimental effects to the original audio signal.

Dayton Audio DPR10 Series 10 Watt Precision 1% Audio Grade Resistor. Dayton Audio's Precision Series Audio Grade resistors are designed specifically for use in high-end, no compromise crossover networks. The nickel-chromium winding, a high thermal conductivity ceramic core, welded construction, and completely non-magnetic components allow these resistors to pass audio signals while maintaining their original sonic character and detail. With a precision 1% tolerance, gold-plated oxygen free copper leads, and low-inductive wire wound construction, these resistors are an excellent choice for you next premium speaker design. Sold individually.

  • Extremely low inductance to avoid any unexpected changes to the audio signal
  • Extra long 50 mm leads make these resistors ideal for use in point-to-point circuit designs
  • Non-magnetic construction includes nickel-chromium internal wire with copper endcaps and leads
  • Internal ceramic rod has great stability and heat dissipation for long life and reliable performance
  • Nickel-chromium wiring and non-flammable coating to withstand moisture and corrosion
  • Tight 1% tolerance to ensure expected and reliable operation

(DPR10-20.0)

Description Audio Grade Non-inductive Resistor 10W 1% 20Ω
Value 20Ω
Ohm 20Ω
Size 52x8mmØ
Watt 10W
Lead +2x 50mm
Price Type each
SKU DPR10-20.0
Model # DPR10-20.0
Brand Dayton Audio
Shipping Weight 0.0070kg
Shipping Width 0.150m
Shipping Height 0.005m
Shipping Length 0.005m
Shipping Cubic 0.000004000m3
