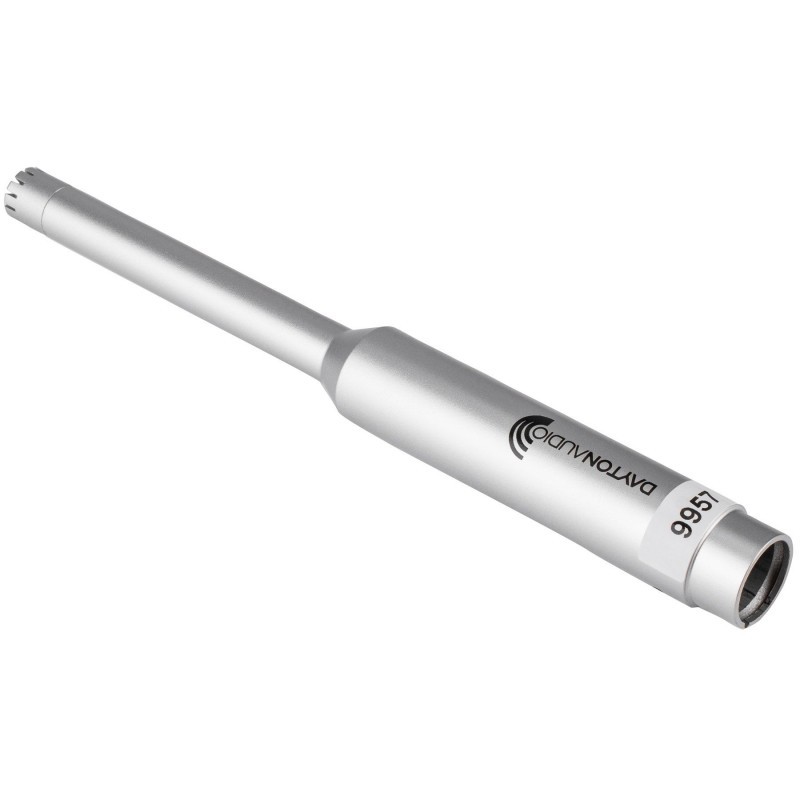

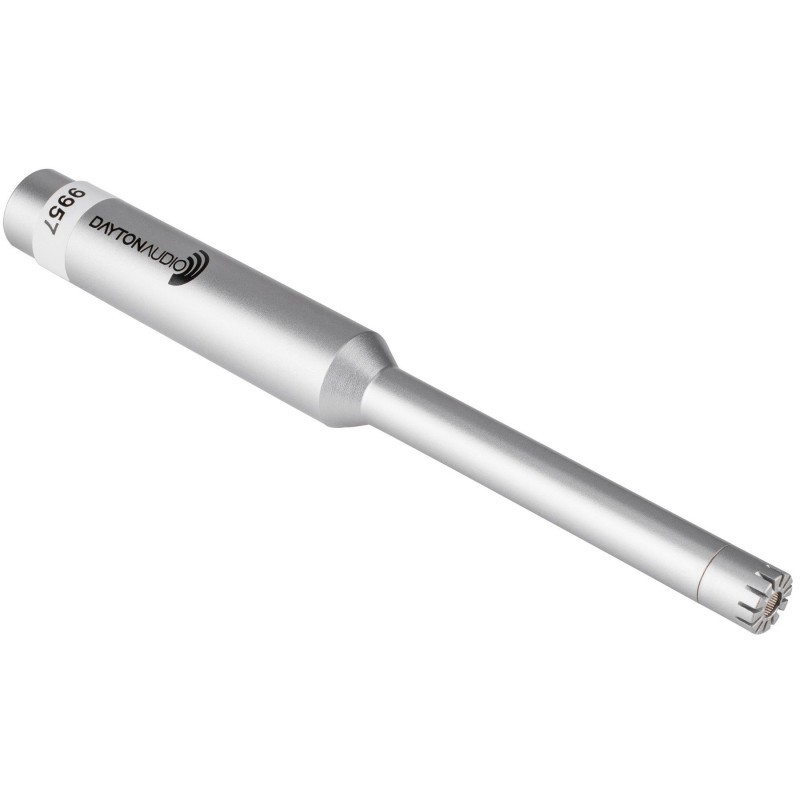

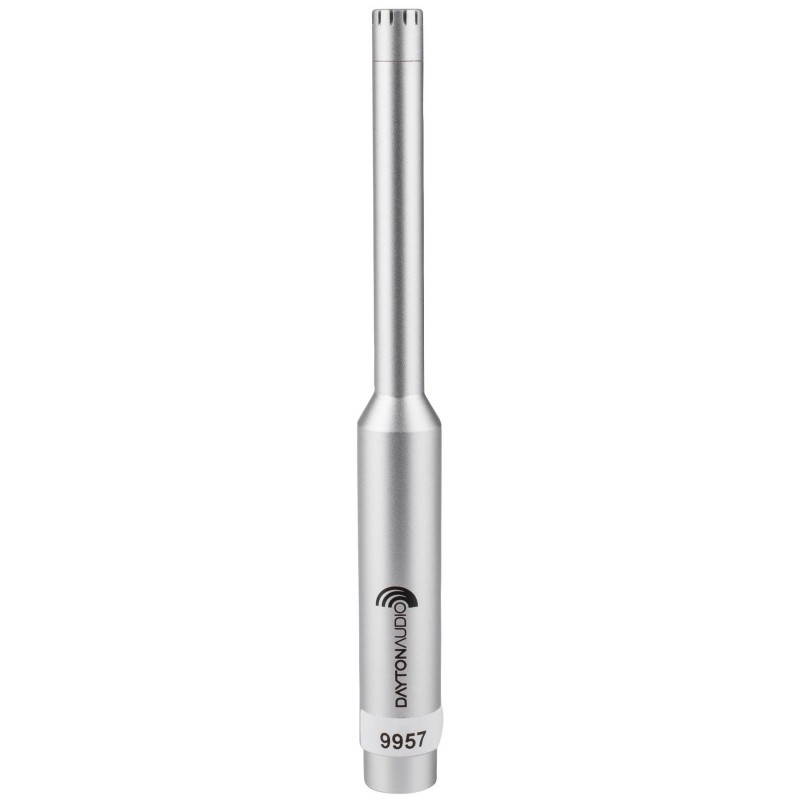

EMM-6 Electret Measurement Microphone
Perfect for use with room acoustic analyzers and audio m
Notify me when back in stock
Specifications: • Capsule type: 6 mm electret condenser • Polar pattern: omni-directional • Frequency response: 18 Hz - 20 kHz • Impedance: 200 ohms between pins 2 and 3 • Sensitivity at 1 kHz into 1K ohm: 10mV/Pa (-40 dBV, re. 0 dB = 1V/Pa) • Max SPL for 1% THD @ 1 kHz: 127 dB • S/N ratio: 70 dB A-weighted • Connector: gold plated XLR • Phantom power: +15V to +48V
(844632077456)
• Perfect for use with room acoustic analyzers and audio measurement systems
• Low noise FET input reduces low-frequency distortion
• Gold-plated XLR output connector for accurate signal transfer
• High-quality components and rugged construction
• Includes its own unique calibration response graph

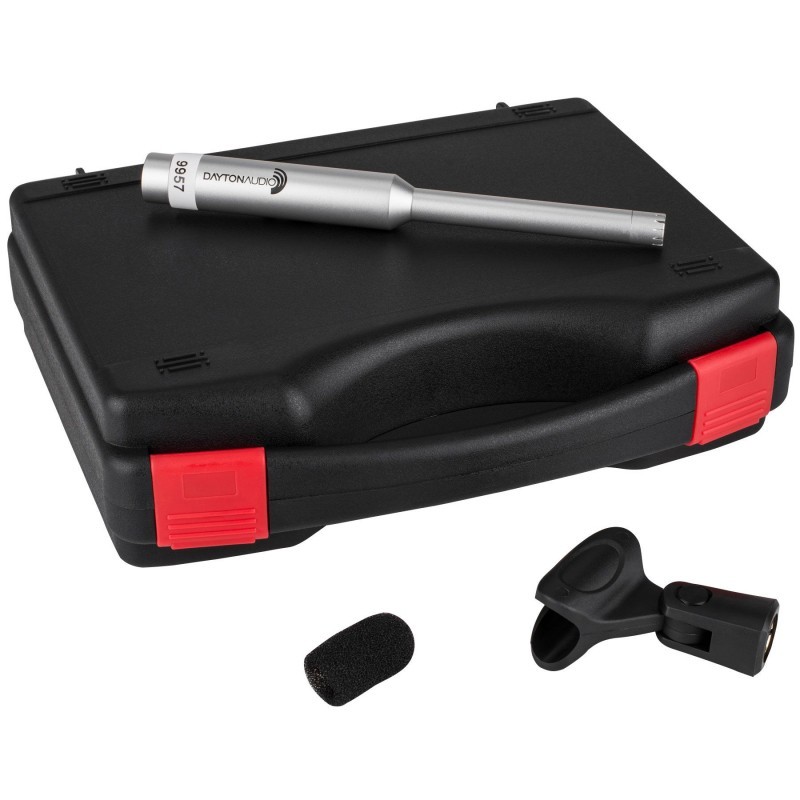

• Includes stand mount, foam windscreen, and transport case
• Works with phantom power from +15V to +48V
| Model Number | EMM-6 |
|---|---|
| Unit of Measure | Each |
| UPC | 844632077456 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Height | -- |
| Product Width | -- |
| Product Length | -- |
| Product Depth | -- |
| Product Weight | -- |
| Product Shipping Weight (lbs.) | 1.0000 |
| SKU | 844632077456 |
| Model # | EMM-6 |
| Barcode # | 844632077456 |
| Brand | Dayton Audio |
| Shipping Weight | 1.1440kg |
| Shipping Width | 0.220m |
| Shipping Height | 0.089m |
| Shipping Length | 0.260m |
| Shipping Cubic | 0.005091000m3 |
| Assembled Length | 0.305m |
| Assembled Height | 0.089m |
| Assembled Width | 0.133m |
Low self noise, accurate mic.
By: Mark K on 6 December 2014I was using a Behringer mic' to measure my speakers previously. Whilst the unit is aesthetically similar, the Behringer has very high levels of self-noise which the Dayton does not exhibit. I have taken some very accurate measurements with this unit. Each unit is calibrated individually. At the price, it is a steal!
