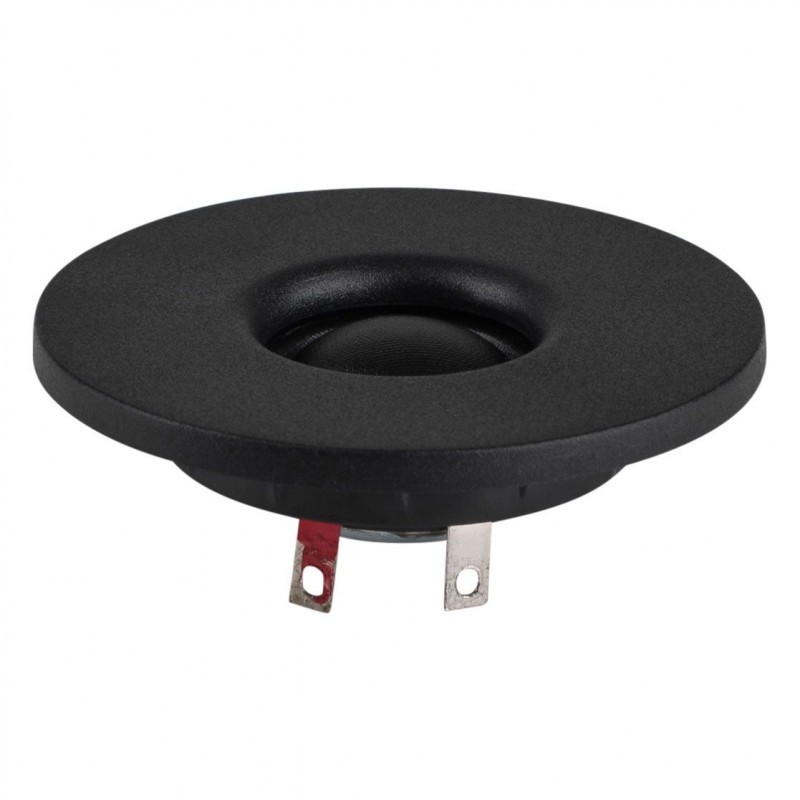

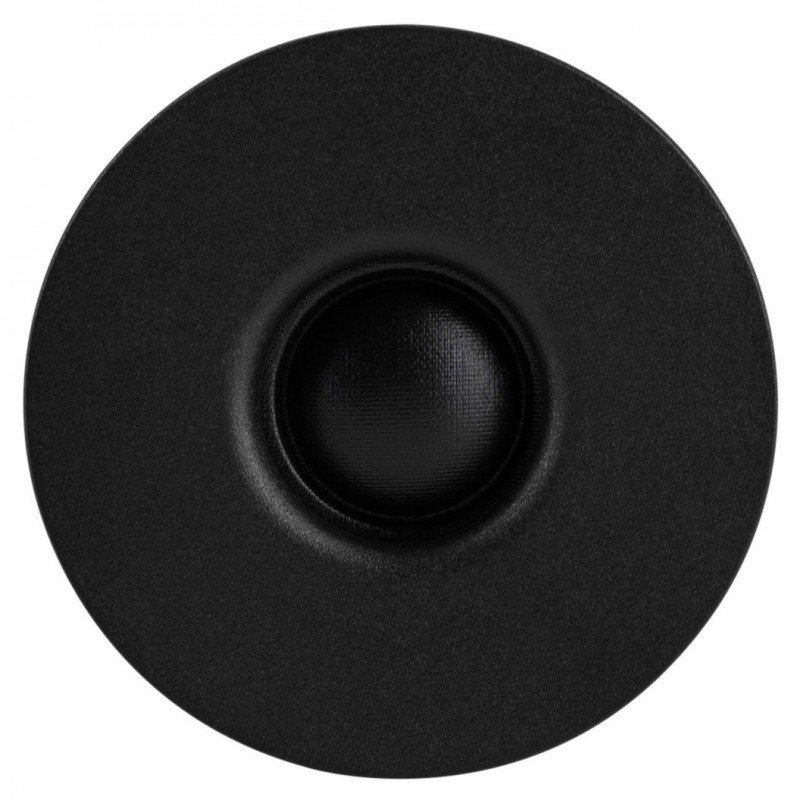

ND13FA-4 1/2" Soft Dome Neodymium Tweeter 4 Ohm
Compact faceplate is perfect for minimal center-to-cente
$17.75
RRP $21.73
SAVE $3.98 (18%)
In Stock
Notify me when back in stock
The versatile ND13FA-4 1/2" soft dome tweeter from Dayton Audio has the sensitivity, smoothness, and power handling for use in a 2-way design with most small woofers. The small faceplate allows minimal center-to-center distances making these a great choice for use in 2-way designs with high crossover points. With 4-ohm impedance, this tweeter is suitable for use in both home and automotive applications. Thanks to the Ferrofluid cooled voice coil, the ND13FA-4 can handle an impressive amount of power and has excellent damping for extremely accurate response.
(848791004735)
• Compact faceplate is perfect for minimal center-to-center distances
• Easy installation, front mount pressfit design
• Ferrofluid enhances power handling and helps damp resonance
• Powerful neodymium motor keeps tweeter small with impressive efficiency
• Exceptionally flat frequency response
• Easy installation, front mount pressfit design
• Ferrofluid enhances power handling and helps damp resonance
• Powerful neodymium motor keeps tweeter small with impressive efficiency
• Exceptionally flat frequency response
| Speaker Series | ND Series |
|---|---|
| Model Number | ND13FA-4 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 848791004735 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 0.0500 |
| Speaker Type | Tweeter |
| Nominal Diameter | .5" |
| Power Handling (RMS) | 20 watts |
| Power Handling (max) | 40 watts |
| Continuous Program Power | -- |
| Impedance | 4 ohms |
| Sensitivity | 88.5 dB 2.83V/1m |
| Frequency Response | 4,500 - 20,000 Hz |
| Voice Coil Diameter | 13 mm |
| Magnet Weight | -- |
| DC Resistance (Re) | 3.07 ohms |
| Voice Coil Inductance (Le) | 0.02 mH |
| Resonant Frequency (Fs) | 2832 Hz |
| Mechanical Q (Qms) | 0.93 |
| Electromagnetic Q (Qes) | 8.44 |
| Total Q (Qts) | 0.84 |
| Diaphragm Mass Inc. Airload (Mms) | -- |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | -- |
| Surface Area Of Cone (Sd) | -- |
| Volume of Displacement (Vd) | -- |
| BL Product (BL) | -- |
| Compliance Equivalent Volume (Vas) | -- |
| Maximum Linear Excursion (Xmax) | -- |
| Driver's Mechanical Losses (Rms) | -- |
| Cone / Diaphragm Material | Fabric |
| Entry / Exit Diameter | -- |
| Surround Material | Rubber |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Polyimide |
| Basket/Frame Material | Plastic |
| Magnet Material | Neodymium |
| Overall Outside Diameter | 45 mm |
| Overall Depth | 11.4 mm |
| Baffle Cutout Diameter | 29.5 mm |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 848791004735 |
| Model # | ND13FA-4 |
| Barcode # | 848791004735 |
| Shipping Weight | 0.0250kg |
