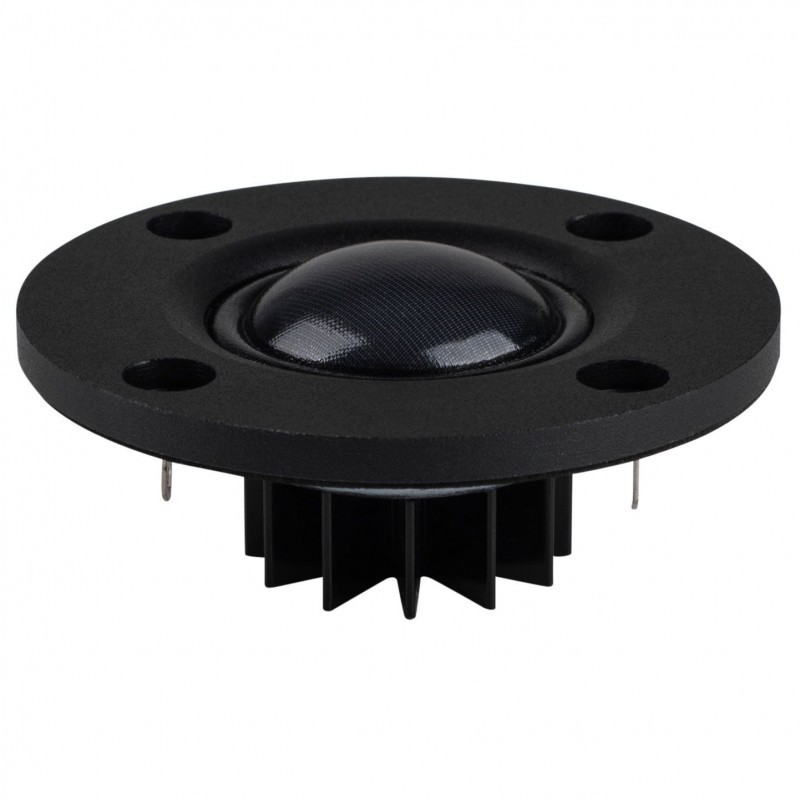

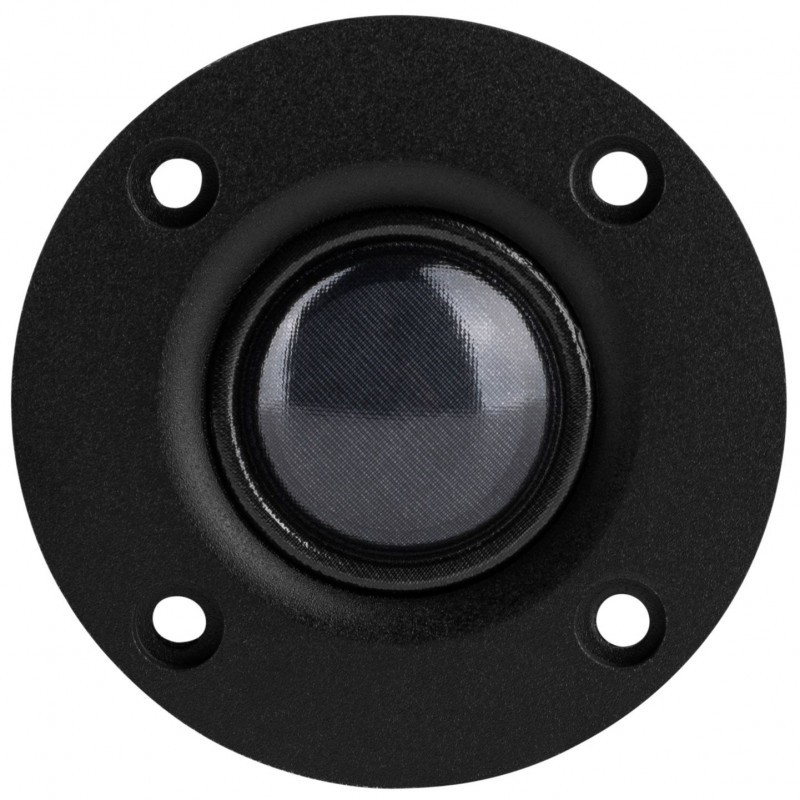

NHP25F-4 1" Soft Dome High Power Neodymium Tweeter 4 Ohm
Attached heatsink and ferrofluid cooling for increased p
Notify me when back in stock
Dayton Audio's versatile NHP25F-4 is a 1" titanium-dome tweeter that offers the performance of more expensive tweeters in a compact and stylish package. The small yet powerful high temperature neodymium motor with attached aluminum heatsink and Ferrofluid-filled magnetic gap reduces power compression and improves long-term power handling. In addition, the carefully designed titanium diaphragm provides accurate treble response up to 20 kHz, excellent off-axis dispersion, and superb sonic detail.
The NHP25F-4 includes a 2.5" cast aluminum faceplate, however Dayton Audio does offer an optional 4.09" (104 mm) and 4.33" (110 mm) faceplate allowing this tweeter to be used as a drop in replace for many common sized tweeters.
(848791004759)
• Over 95 dB efficient is perfect for use in higher output designs
• Compact cast aluminum faceplate minimizes center to center distance
• High temperature neodymium motor allows high output for extended periods
• Extremely smooth response makes for easy transition to midrange diver
| Speaker Series | ND Series |
|---|---|
| Model Number | NHP25F-4 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 848791004759 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 0.2500 |
| Speaker Type | Tweeter |
| Nominal Diameter | 1" |
| Power Handling (RMS) | 40 watts |
| Power Handling (max) | 80 watts |
| Continuous Program Power | -- |
| Impedance | 4 ohms |
| Sensitivity | 95 dB 2.83V/1m |
| Frequency Response | 3,000 - 20,000 Hz |
| Voice Coil Diameter | 25.4 mm |
| Magnet Weight | -- |
| DC Resistance (Re) | 3.18 ohms |
| Voice Coil Inductance (Le) | 0.03 mH |
| Resonant Frequency (Fs) | 1689 Hz |
| Mechanical Q (Qms) | 3.75 |
| Electromagnetic Q (Qes) | 2.04 |
| Total Q (Qts) | 1.32 |
| Diaphragm Mass Inc. Airload (Mms) | -- |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | -- |
| Surface Area Of Cone (Sd) | -- |
| Volume of Displacement (Vd) | -- |
| BL Product (BL) | -- |
| Compliance Equivalent Volume (Vas) | -- |
| Maximum Linear Excursion (Xmax) | -- |
| Driver's Mechanical Losses (Rms) | -- |
| Cone / Diaphragm Material | Silk |
| Entry / Exit Diameter | -- |
| Surround Material | -- |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Aluminum |
| Basket/Frame Material | Aluminum |
| Magnet Material | Neodymium |
| Overall Outside Diameter | 63.75 mm |
| Overall Depth | 27.2 mm |
| Baffle Cutout Diameter | 40.1 mm |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 848791004759 |
| Model # | NHP25F-4 |
| Barcode # | 848791004759 |
| Shipping Weight | 0.1250kg |
