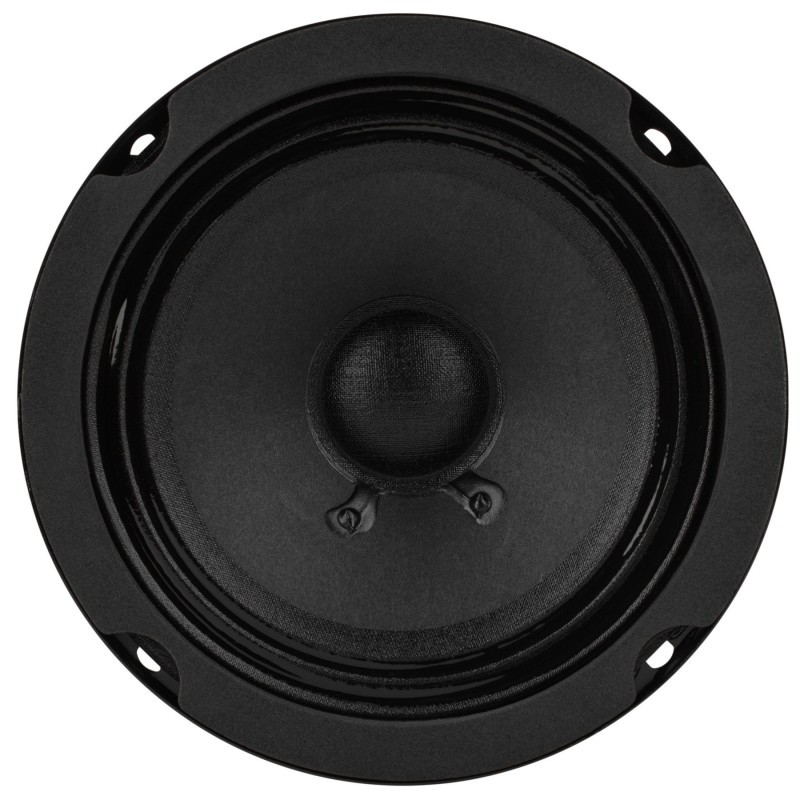

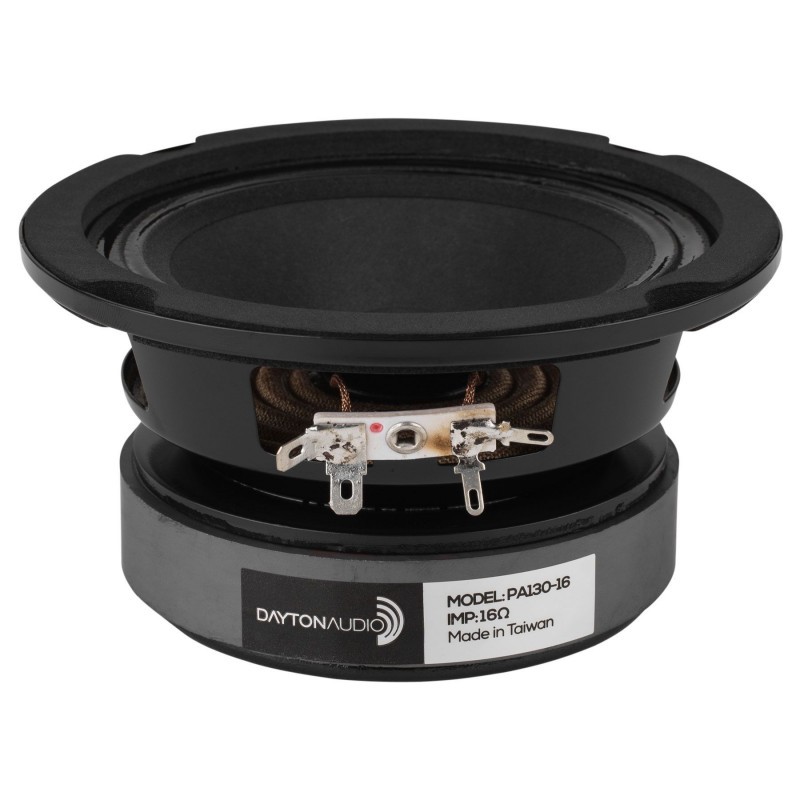

PA130-16 5" Full-Range PA Driver 16 Ohm
Great low cost driver
$59.50
Notify me when back in stock
A great low-cost driver designed for use in small stage monitors, either as a replacement driver or for new construction. The broad frequency coverage and flat midrange ensure that vocals and instruments will sound just like they should. Rugged construction includes a steel frame, paper cone, treated cloth surround, vented pole piece and a large 20 oz. magnet.
Also available in a 8 ohm version: Dayton Audio PA130-8.
(848791002366)
• Great low cost driver
• 16 Ohm impedance perfect for dual driver or line array applications
• Broad frequency coverage and flat midrange ensure that vocals and instruments sound perfect
• Rugged construction
• 16 Ohm impedance perfect for dual driver or line array applications
• Broad frequency coverage and flat midrange ensure that vocals and instruments sound perfect
• Rugged construction
| Speaker Series | Pro Audio Series |
|---|---|
| Model Number | PA130-16 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 848791002366 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 2.6500 |
| Speaker Type | Full-Range |
| Nominal Diameter | 5" |
| Power Handling (RMS) | 50 watts |
| Power Handling (max) | 100 watts |
| Continuous Program Power | -- |
| Impedance | 16 ohms |
| Sensitivity | 84.8 dB 2.83V/1m |
| Frequency Response | 80 - 15,000 Hz |
| Voice Coil Diameter | 1" |
| Magnet Weight | 20 oz. |
| DC Resistance (Re) | 14.1 ohms |
| Voice Coil Inductance (Le) | 0.57 mH @ 1 kHz |
| Resonant Frequency (Fs) | 78.7 Hz |
| Mechanical Q (Qms) | 4.37 |
| Electromagnetic Q (Qes) | 0.71 |
| Total Q (Qts) | 0.61 |
| Diaphragm Mass Inc. Airload (Mms) | 6.8g |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | 0.61 mm/N |
| Surface Area Of Cone (Sd) | 73.9 cm² |
| Volume of Displacement (Vd) | -- |
| BL Product (BL) | 8.14 Tm |
| Compliance Equivalent Volume (Vas) | 0.18 ft.³ |
| Maximum Linear Excursion (Xmax) | 2 mm |
| Driver's Mechanical Losses (Rms) | -- |
| Cone / Diaphragm Material | Paper Cone |
| Entry / Exit Diameter | -- |
| Surround Material | Cloth |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Aluminum |
| Basket/Frame Material | Steel |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 5.2" |
| Overall Depth | 2.66" |
| Baffle Cutout Diameter | 4.41" |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 848791002366 |
| Model # | PA130-16 |
| Barcode # | 848791002366 |
| Shipping Weight | 1.2200kg |
