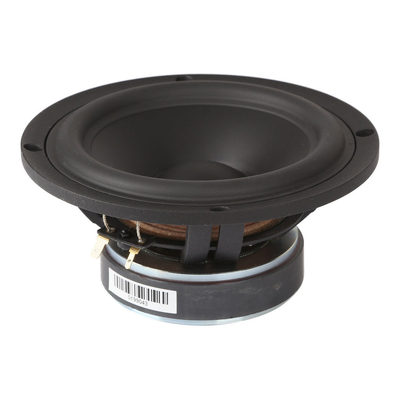

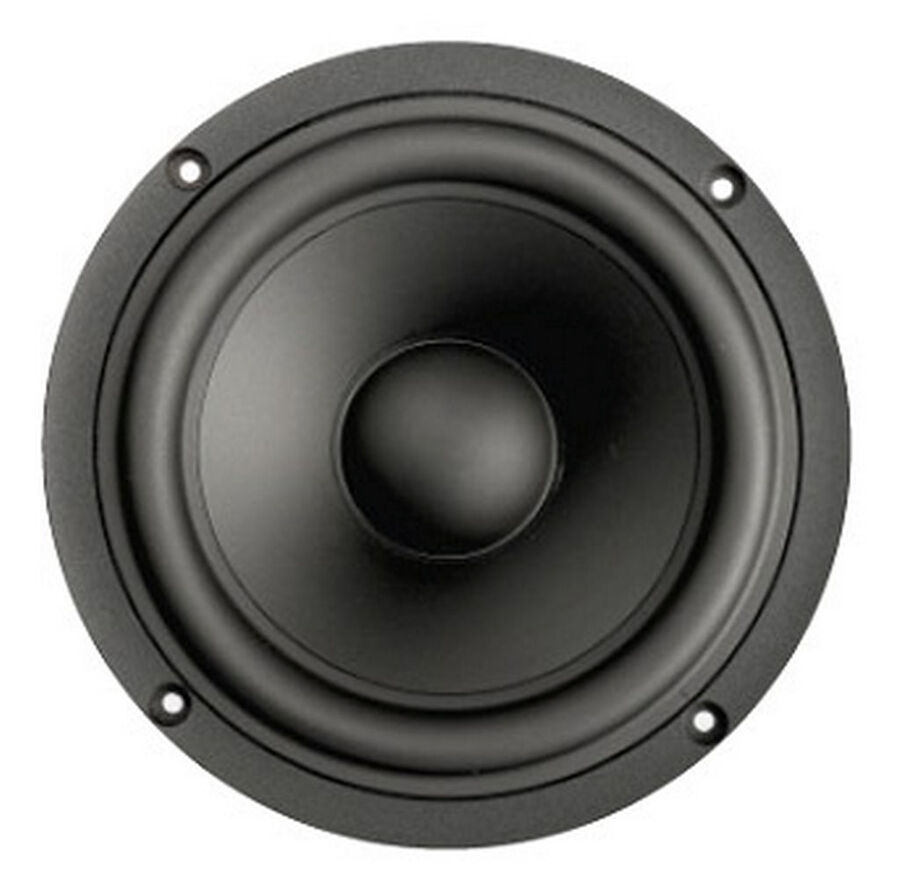

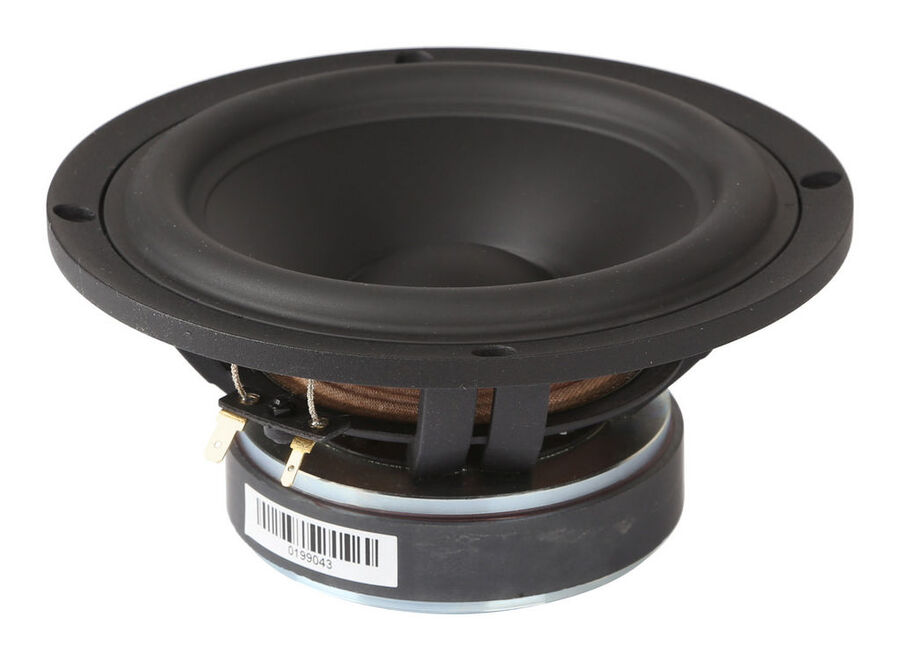

SB17NRX2C35-8 SB ACOUSTICS 6.5" MID-WOOFER - NRXC-II
$119.00
In Stock
Notify me when back in stock
Newly developed Norex non-resonant poly-coated papyrus fibre cone. Low damping SBR rubber surround with high exertion and resilience. Open structure cast frame for reduced reflections and compression. Aluminium alloy for light weight, non-magnetic and extra rigidity. Shorting Copper cap on pole piece. Non-inductive CCAW fibre glass 30mm coil former. Silver lead wires. Vented pole piece.

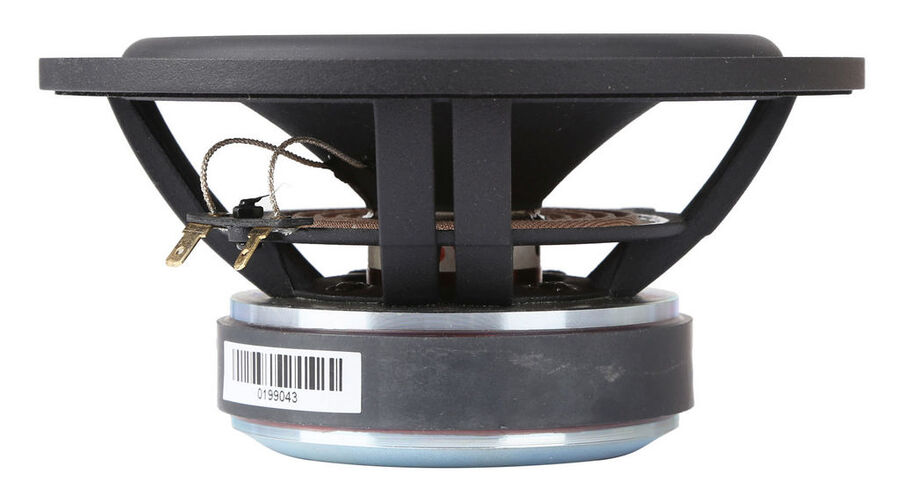

- Vented cast aluminium chassis for optimum strength and low compression
- Proprietary cone material with natural fibers made in-house
- Soft low damping rubber surround for transient response
- Non-conducting fiber glass voice coil former for minimum damping
- Extended copper sleeve on pole piece for low inductance and low distortion
- Vented coil former with CCAW voice coil for reduced moving mass
- Long life silver lead wires
- Vented pole piece for reduced compression
(23943)
| Cms | 1.45mm/N |
|---|---|
| Coil | 35.5mmØ |

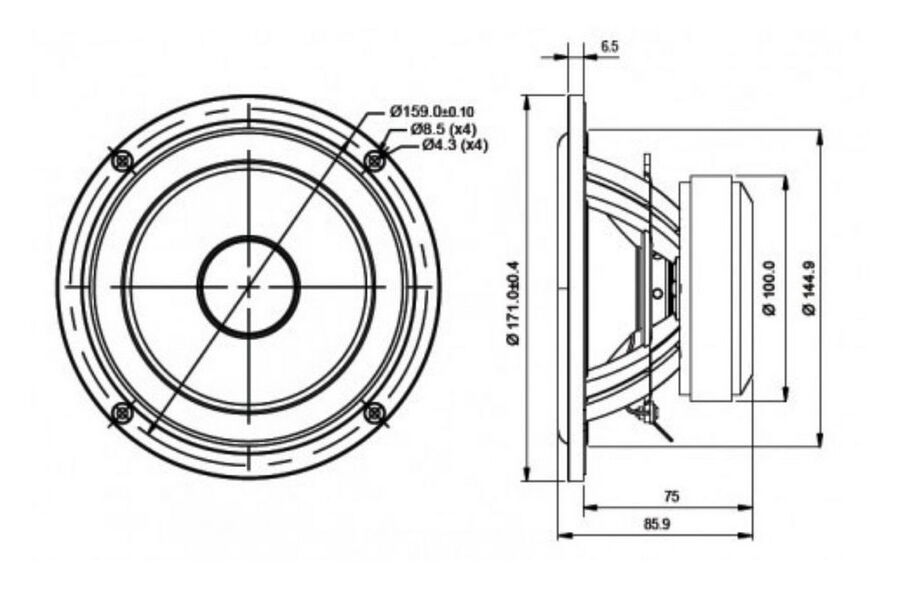

| Depth | 75mm |
| Diam. | 152mmØ |
| Fs | 35Hz |
| Impedance | 8Ω Re 5.7Ω |
| Impedance (Ohm) | 8 ohm |
| Inch | 6 |
| Le | 0.15mH |
| Mag. | 0.54kg |
| Manufacturer | SB Acoustics |
| Materials | Norex Paper Cone |
| Mms | 13.9g |
| Power | 50Wrms |
| Price Type | each |
| Qes | 0.45 |
| Qms | 4.6 |
| Qts | 0.41 |
| QTY | 1 |
| Re | 5.7Ω |
| Rms | 0.7kg/s |
| Sd | 118cm² |
| Sens. | 87dB |
| Series | Natural fibre cone |
| Size | 6' |
| Type | Mid-Woofer |
| Vas | 28.7L |
| Width | 171mmØ |
| Zn | 8Ω |
| Bl | 6.3Tm |
| Xmax | 11mm |
| Flux (lm) | 0.93T |
| SKU | 23943 |
| Model # | SB17NRX2C35-8 |
| Brand | SB Acoustics |
| Shipping Weight | 1.6000kg |
