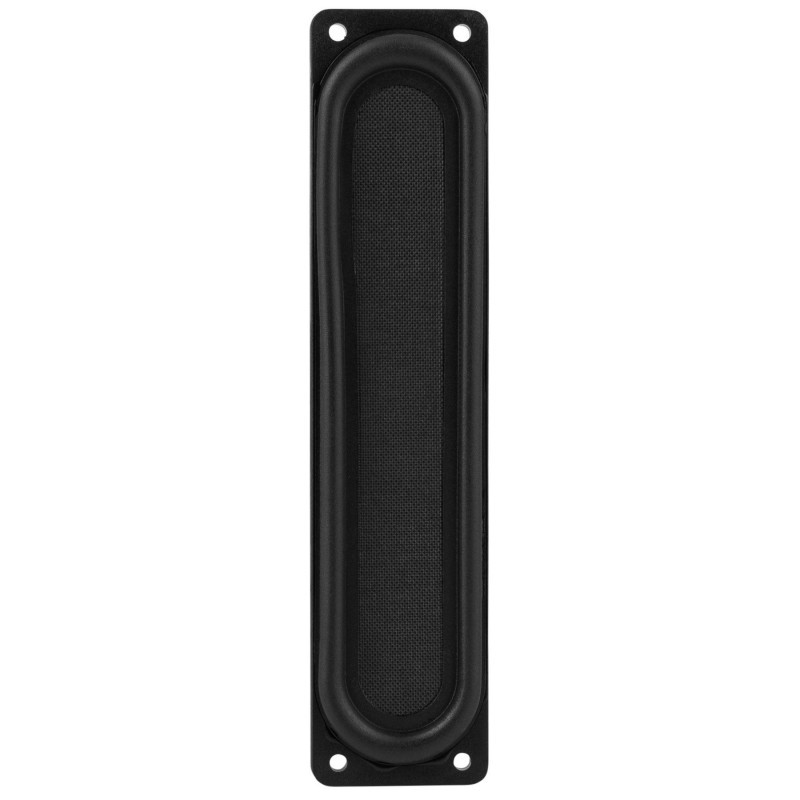

HARB252-8 1" x 5" Dual Motor High Aspect Ratio BMT 8 Ohms
High Aspect Ratio transducer fits in unconventional encl
$33.50
Availability:
8-14 days
8-14 days
Notify me when back in stock
The unique shape and full frequency range of Dayton Audio's HARB252-8 1"x 5" dual motor full-range driver permits applications where other drivers simply won’t fit. Place it horizontally as the mid or full-range driver for a center channel/monitor stand, or vertically as a desk-top/computer speaker.
(848791001871)
• High Aspect Ratio transducer fits in unconventional enclosures
• Dual neodymium magnet motors maintain narrow mounting profile
• Amazing off-axis frequency response
• Great for use in line arrays and low profile bar speakers
• Dual neodymium magnet motors maintain narrow mounting profile
• Amazing off-axis frequency response
• Great for use in line arrays and low profile bar speakers
| Model Number | HARB252-8 |
|---|---|
| Color | Black |
| Unit of Measure | Each |
| UPC | 848791001871 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 0.2000 |
| Power Handling (RMS) | 10 watts |
| Power Handling (max) | 20 watts |
| Continuous Program Power | -- |
| Impedance | 8 ohms |
| Sensitivity | 77 dB @ 2.83V/1m |
| Frequency Response | 150 - 17,000 Hz |
| Voice Coil Diameter | 0.63 mm |
| Magnet Weight | -- |
| DC Resistance (Re) | 7.2 ohms |
| Voice Coil Inductance (Le) | 0.09 mH @ 1 kHz |
| Resonant Frequency (Fs) | 172.11 Hz |
| Mechanical Q (Qms) | 4.23 |
| Electromagnetic Q (Qes) | 2.98 |
| Total Q (Qts) | 1.74 |
| Diaphragm Mass Inc. Airload (Mms) | 3.2g |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | 0.3 mm/N |
| Surface Area Of Cone (Sd) | 21.2 cm² |
| Volume of Displacement (Vd) | 2.6 cm³ |
| BL Product (BL) | 3.04 Tm |
| Compliance Equivalent Volume (Vas) | 0.19 liters |
| Maximum Linear Excursion (Xmax) | 1.3 mm |
| Driver's Mechanical Losses (Rms) | -- |
| Entry / Exit Diameter | -- |
| Surround Material | -- |
| Voice Coil Wire Material | -- |
| Voice Coil Former | -- |
| Basket/Frame Material | -- |
| Magnet Material | -- |
| Overall Outside Diameter | 5.16" |
| Overall Depth | 1.14" |
| Baffle Cutout Diameter | 0.82" |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 848791001871 |
| Model # | HARB252-8 |
| Barcode # | 848791001871 |
| Brand | Dayton Audio |
| Shipping Weight | 0.0850kg |
| Shipping Width | 0.038m |
| Shipping Height | 0.038m |
| Shipping Length | 0.140m |
| Shipping Cubic | 0.000203000m3 |
