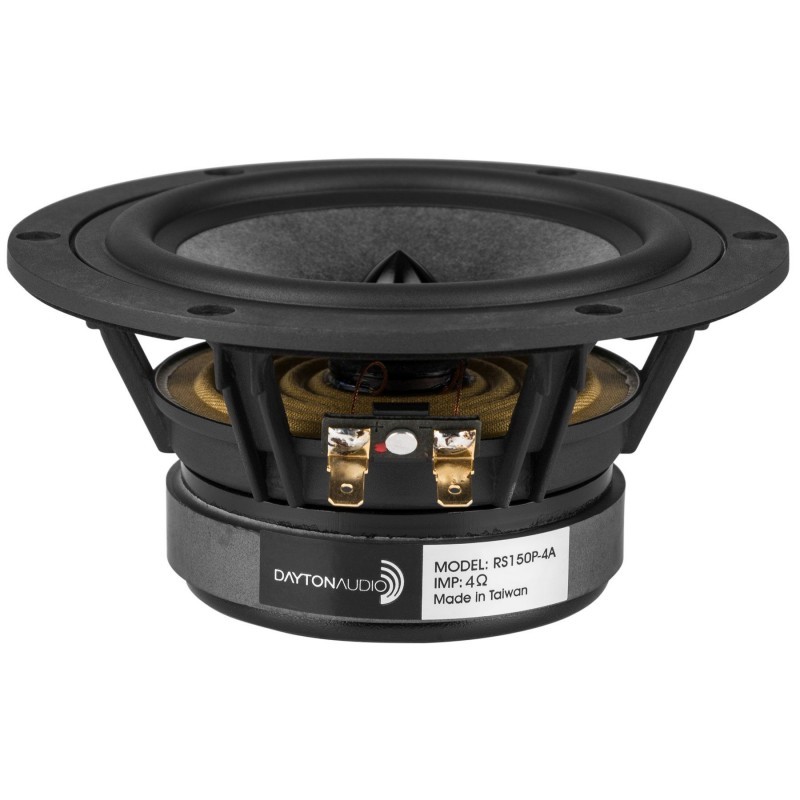

RS150P-4A 6" Reference Paper Woofer 4 Ohm
Now with improved frequency response for easier crossove
Notify me when back in stock
Now with improved frequency response – we tweaked the design and the result is a much a smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration.
The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.
Optimum Cabinet Size
Sealed Volume 0.09 ft.³
Sealed F3 137 Hz
Vented Volume 0.19 ft.³
Vented F3 81 Hz
(848791002649)
• Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
• Low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
• Perfect for use as a woofer, midwoofer, or dedicated midrange driver
• 90.3 dB sensitivity and 4.4 mm of excursion
| Speaker Series | Reference Series |
|---|---|
| Model Number | RS150P-4A |
| Color | Black |
| Unit of Measure | Each |
| UPC | 848791002649 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 2.7000 |
| Speaker Type | Woofer |
| Nominal Diameter | 6" |
| Power Handling (RMS) | 40 watts |
| Power Handling (max) | 65 watts |
| Continuous Program Power | -- |
| Impedance | 4 ohms |
| Sensitivity | 90.3 dB @ 2.83V/1m |
| Frequency Response | 45 - 10,000 Hz |
| Voice Coil Diameter | 25 mm |
| Magnet Weight | -- |
| DC Resistance (Re) | 3.5 ohms |
| Voice Coil Inductance (Le) | 0.39 mH @ 1 kHz |
| Resonant Frequency (Fs) | 43.7 Hz |
| Mechanical Q (Qms) | 1.85 |
| Electromagnetic Q (Qes) | 0.42 |
| Total Q (Qts) | 0.34 |
| Diaphragm Mass Inc. Airload (Mms) | 8.6g |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | 1.54 mm/N |
| Surface Area Of Cone (Sd) | 85.0 cm² |
| Volume of Displacement (Vd) | 37.4 cm³ |
| BL Product (BL) | 4.4 Tm |
| Compliance Equivalent Volume (Vas) | 15.7 liters |
| Maximum Linear Excursion (Xmax) | 4.4 mm |
| Driver's Mechanical Losses (Rms) | -- |
| Cone / Diaphragm Material | Paper / Kevlar Cone |
| Entry / Exit Diameter | -- |
| Surround Material | Rubber |
| Voice Coil Wire Material | -- |
| Voice Coil Former | -- |
| Basket/Frame Material | Cast Aluminum |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 150 mm |
| Overall Depth | 73.5 mm |
| Baffle Cutout Diameter | 121.5 mm |
| # Mounting Holes | 6 |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 848791002649 |
| Model # | RS150P-4A |
| Barcode # | 848791002649 |
| Brand | Dayton Audio |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.165m |
| Shipping Height | 0.114m |
| Shipping Length | 0.165m |
| Shipping Cubic | 0.003116000m3 |
